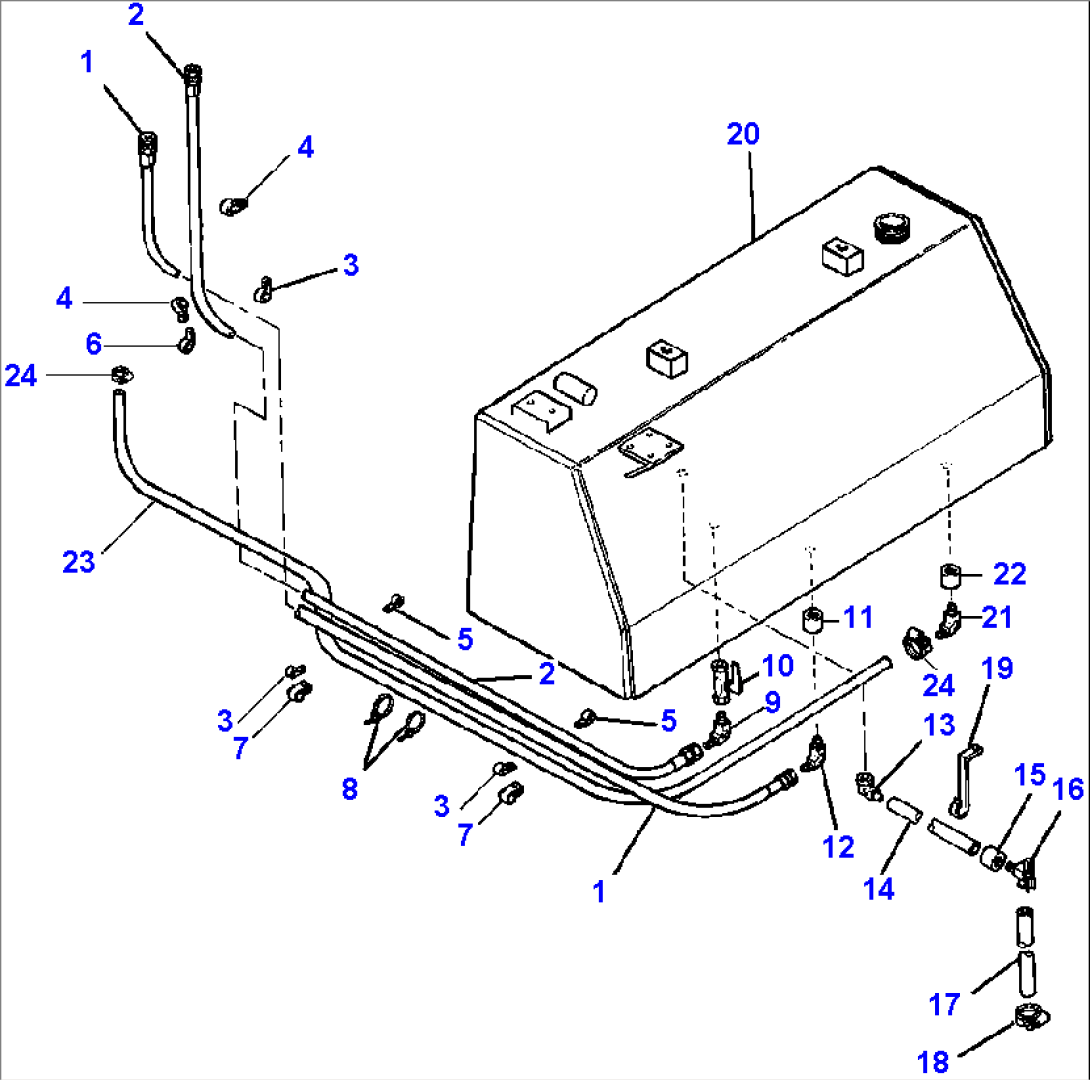

FIG. D0100-02A0 FUEL TANK AND PIPING

Item	Part No.	Part Name	Qty	Serial No.
	1315 562 H91	FUEL TANK AND FILTER PIPING		Ser Num-
1	07102-20329	HOSE, FUEL RETURN		Ser Num-
2	07102-20430	HOSE, FUEL SUPPLY		Ser Num-
3	299 615 C1	CLIP, FUEL RETURN HOSE		Ser Num-
4	299 413 C1	CLIP, FUEL SUPPLY HOSE		Ser Num-

		OR

	140-06-18440	CLIP, FUEL SUPPLY HOSE		Ser Num-
5	299 413 C1	CLIP, FUEL SUPPLY HOSE		Ser Num-

		OR

	140-06-18440	CLIP, FUEL SUPPLY HOSE		Ser Num-
	24 839 R1	BOLT, HEX - 3/8x3/4		Ser Num-
	670 278 C1	WASHER, FLAT - 3/8		Ser Num-
6	299 413 C1	CLIP, FUEL SUPPLY HOSE		Ser Num-
	30 031 R1	BOLT, HEX - M10x80		Ser Num-
	30 176 R1	WASHER, FLAT - M10		Ser Num-
	468 460 R1	SPACER		Ser Num-
7	299 404 C1	CLIP, FUEL SPILL HOSE		Ser Num-
8	306 132 C2	STRAP, HOSE		Ser Num-
9	566-01-61190	ELBOW, 90\xfb		Ser Num-
10	1301 358 H1	VALVE, FUEL SHUTOFF		Ser Num-
11	111 644	COUPLING		Ser Num-
12	1500 786 H1	ELBOW, 90\xfb		Ser Num-
13	454 104	ELBOW		Ser Num-
14	628 703 C2	PIPE, DRAIN		Ser Num-
15	111 644	COUPLING		Ser Num-
16	148 344	VALVE, DRAIN		Ser Num-
17		HOSE, DRAIN - CUT TO FIT		Ser Num-
18	279 025 R91	CLAMP, HOSE		Ser Num-

		OR

	27 860 R1	CLAMP, HOSE		Ser Num-
19	628 704 C1	CLIP, DRAIN PIPE		Ser Num-
	26 316 R1	BOLT, HEX - 1/2NCx1		Ser Num-
	25 546 R1	WASHER, FLAT - 1/2		Ser Num-
20		TANK, FUEL (SEE FIG. D0100-01A0)		Ser Num-
21	433 182 C1	ELBOW, 90\xfb		Ser Num-
22	105 409	COUPLING		Ser Num-
23		HOSE, FUEL SPILL - 4394 MM (173 IN)		Ser Num-
24	07280-01210	CLAMP		Ser Num-

		F1 PART NUMBER IS A NON-SERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS.


		F2 CUT FROM BULK HOSE 742 917 C1.


		F3 CUT FROM BULK HOSE 427 698 C1.
