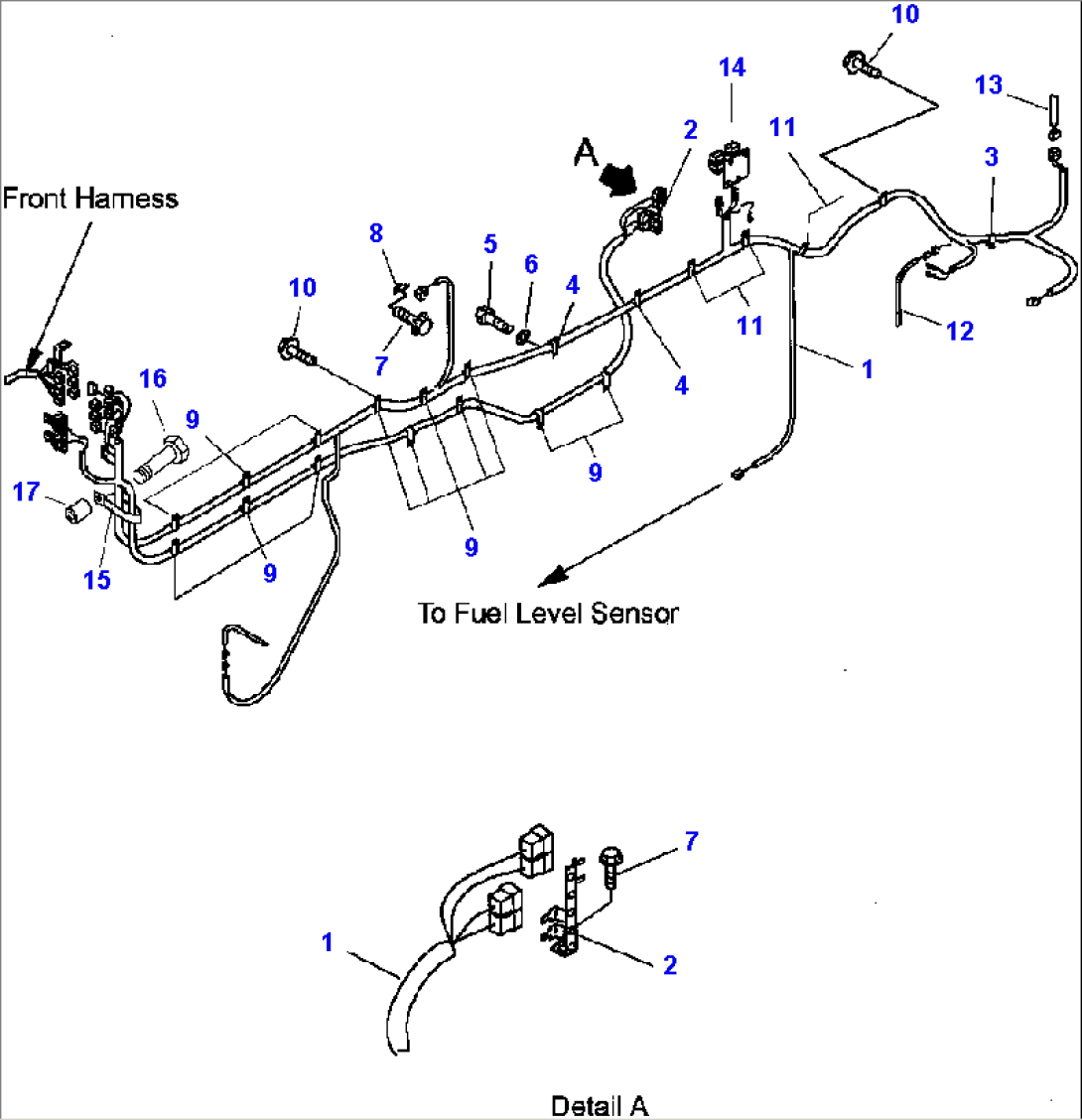

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-06-22121 | WIRING HARNESS | A50001 -- | |
| 2 | 428-06-22230 | PLATE | A50001 -- | |
| 3 | 08036-03014 | CLIP | A50001 -- | |
| 4 | 08036-02514 | CLIP | A50001 -- | |
| 5 | 01010-81020 | BOLT | A50001 -- | |
| 6 | 01643-31032 | WASHER | A50001 -- | |
| 7 | 01435-01016 | BOLT | A50001 -- | |
| 8 | 08053-00912 | CLIP | A50001 -- | |
| 9 | 04434-52512 | CLIP | A50001 -- | |
| 10 | 01435-01016 | BOLT | A50001 -- | |
| 11 | 04434-52110 | CLIP | A50001 -- | |
| 12 | WIRING HARNESS (SEE FIG. E0202-03A0) | A50001 -- | ||
| 13 | WIRING HARNESS, REAR (SEE FIG. E0202-06A0) | A50001 -- | ||
| 14 | FUSE (SEE FIG. E0202-02A0) | A50001 -- | ||
| 15 | 582-35-11170 | CLIP | A50001 -- | |
| 16 | 01435-01045 | BOLT | A50001 -- | |
| 17 | 419-43-17910 | SPACER | A50001 -- |
