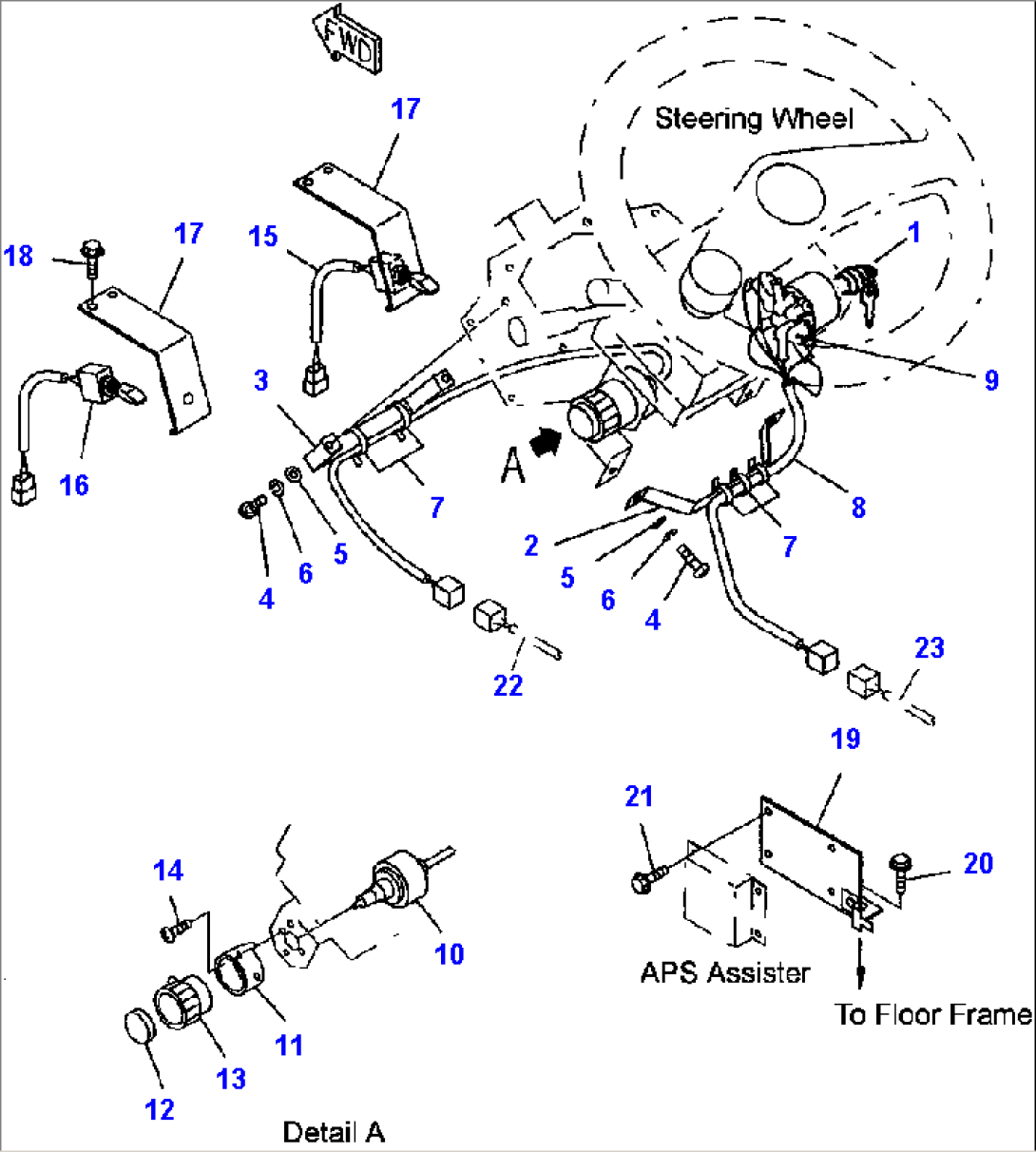

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 08086-10000 | SWITCH, STARTER | A50001 -- | |
| 2 | 421-06-22860 | SUPPORT | A50001 -- | |
| 3 | 421-06-22870 | SUPPORT | A50001 -- | |
| 4 | 01220-70620 | SCREW | A50001 -- | |
| 5 | 01642-40608 | WASHER | A50001 -- | |
| 6 | 01602-20619 | WASHER, SPRING | A50001 -- | |
| 7 | 08034-20519 | BAND | A50001 -- | |
| 8 | 426-06-22691 | WIRING HARNESS | A50001 -- | |
| 9 | 08038-00518 | CAP | A50001 -- | |
| 421-06-26110 | SWITCH ASSEMBLY, WIPER | A50001 -- | ||
| 10 | 421-06-26120 | SWITCH | A50001 -- | |
| 11 | 421-06-26130 | COLLAR | A50001 -- | |
| 12 | 421-06-26140 | CAP | A50001 -- | |
| 13 | 421-06-26150 | KNOB | A50001 -- | |
| 14 | 421-06-26160 | SCREW, TAPPING | A50001 -- | |
| 15 | 426-06-11412 | SWITCH, PRE-HEAT | A50001 -- | |
| 16 | 426-06-11423 | SWITCH, KILL | A50001 -- | |
| 17 | 426-06-22841 | BRACKET | A50001 -- | |
| 18 | 01435-00616 | BOLT | A50001 -- | |
| 19 | 428-06-22220 | BRACKET | A50001 -- | |
| 20 | 01435-01016 | BOLT | A50001 -- | |
| 21 | 01435-00616 | BOLT | A50001 -- | |
| 22 | WIRING HARNESS (SEE FIG. K4210-01A2) | A50001 -- | ||
| 23 | WIRING HARNESS (SEE FIG. K4210-01A2) | A50001 -- |
