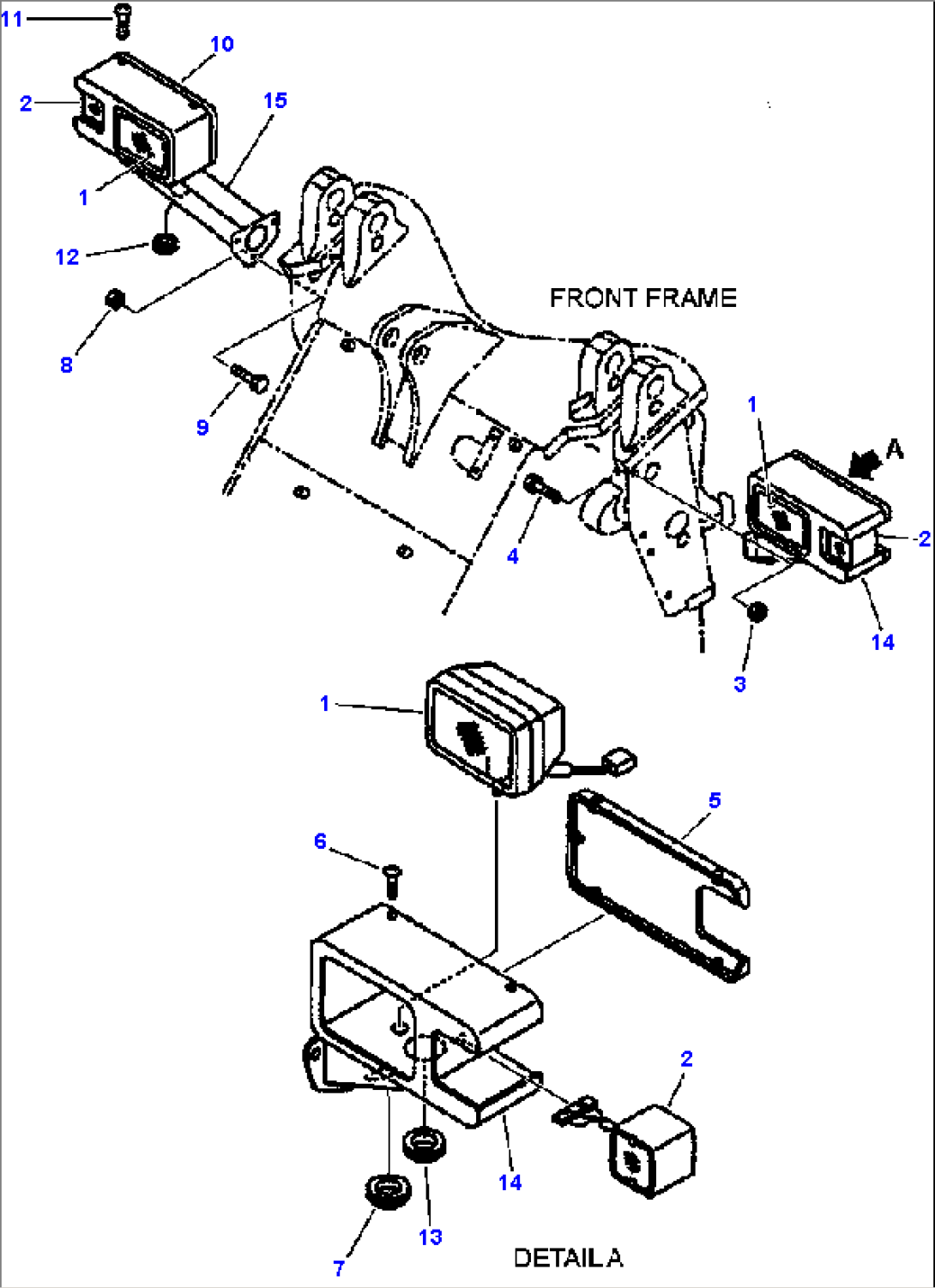

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-06-23211 | HEAD LAMP ASSEMBLY | A70001-UP- | |
| 417-06-23220 | BULB - 62/62 W | A70001-UP- | ||
| 417-06-23260 | LENS | A70001-UP- | ||
| 2 | 41G-06-13201 | LAMP ASSEMBLY | A70001-UP- | |
| 41G-06-13210 | LENS, FRONT | A70001-UP- | ||
| 41G-06-13220 | LENS, REAR | A70001-UP- | ||
| 41G-06-13230 | BULB - 5 W | A70001-UP- | ||
| 08105-12420 | BULB - 25 W | A70001-UP- | ||
| 01220-40425 | SCREW | A70001-UP- | ||
| 3 | 01584-01210 | NUT | A70001-UP- | |
| 4 | 01435-01230 | BOLT | A70001-UP- | |
| 5 | 417-06-23190 | PLATE | A70001-UP- | |
| 6 | 01023-10612 | SCREW | A70001-UP- | |
| 7 | 09415-03614 | CAP | A70001-UP- | |
| 8 | 01584-01210 | NUT | A70001-UP- | |
| 9 | 01435-01230 | BOLT | A70001-UP- | |
| 10 | 417-06-23190 | PLATE | A70001-UP- | |
| 11 | 01023-10612 | SCREW | A70001-UP- | |
| 12 | 09415-03614 | CAP | A70001-UP- | |
| 13 | 08037-02512 | GROMMET | A70001-UP- | |
| 14 | 418-06-A1510 | SUPPORT, L.H. | A70001-UP- | |
| 15 | 418-06-A1520 | SUPPORT, R.H. | A70001-UP- |
