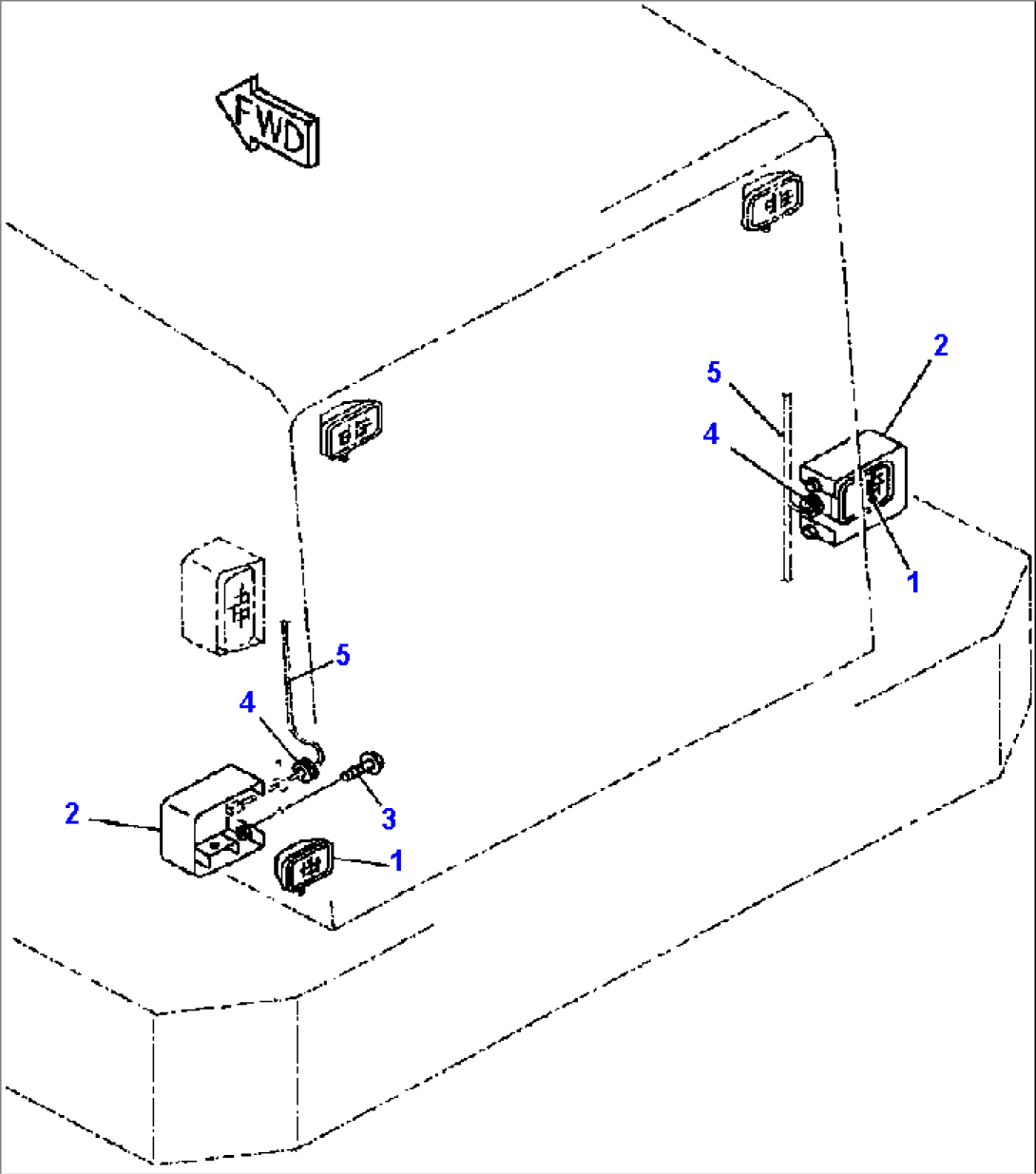

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-06-23310 | LAMP ASSEMBLY, REAR WORK | A50001 -- | |
| 421-06-23340 | LENS | A50001 -- | ||
| 421-06-23330 | BULB, 70W | A50001 -- | ||
| 01582-11411 | NUT | A50001 -- | ||
| 01602-21442 | WASHER, LOCK | A50001 -- | ||
| 01643-31445 | WASHER | A50001 -- | ||
| 2 | 427-06-13170 | BRACKET | A50001 -- | |
| 3 | 01435-01220 | BOLT | A50001 -- | |
| 4 | 08037-02512 | GROMMET | A50001 -- | |
| 5 | REAR LAMP HARNESS (SEE FIG. E0202-08A0) | A50001 -- |
