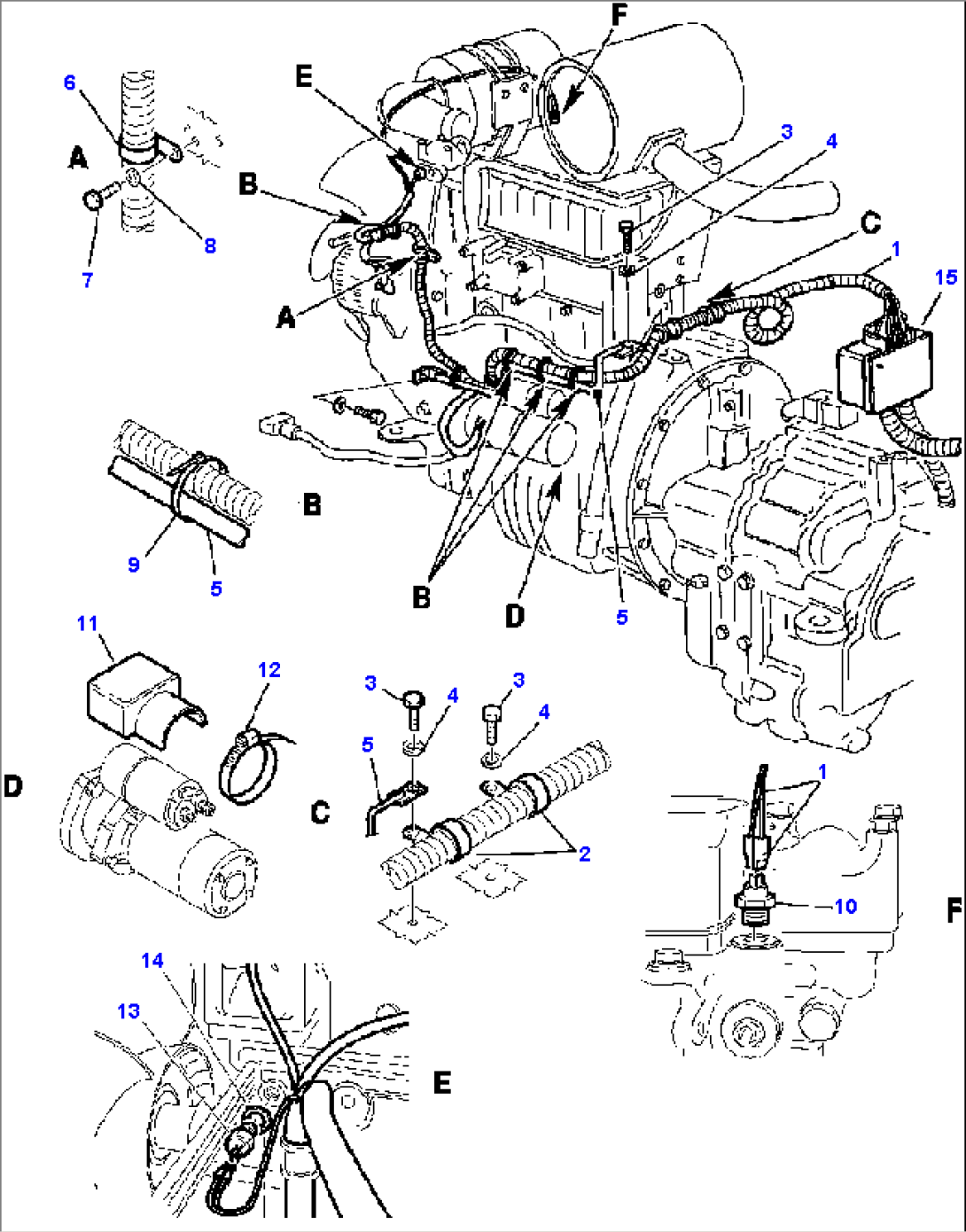

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312612174 | WIRING HARNESS, ENGINE | A70014-- | |
| 2 | 802660034 | CLAMP | A70014-- | |
| 3 | 801015109 | BOLT | A70014-- | |
| 4 | 802170002 | WASHER | A70014-- | |
| 5 | 802612134 | SUPPORT | A70014-- | |
| 6 | 802660508 | CLAMP | A70014-- | |
| 7 | 801015108 | BOLT | A70014-- | |
| 8 | 802170002 | WASHER | A70014-- | |
| 9 | 885180010 | TIE STRAP | A70014-- | |
| 10 | 885070044 | SWITCH, TEMP | A70014-- | |
| 11 | 312607707 | COVER | A70014-- | |
| 12 | 885190006 | CLAMP | A70014-- | |
| 13 | ENGINE CONTROL (SEE FIG. E1540-01A1) | A70014-- | ||
| 14 | GASKET (SEE FIG. A0140-01A1) | A70014-- | ||
| 15 | SENDER, TEMP (SEE FIG. A0140-01A1) | A70014-- |
