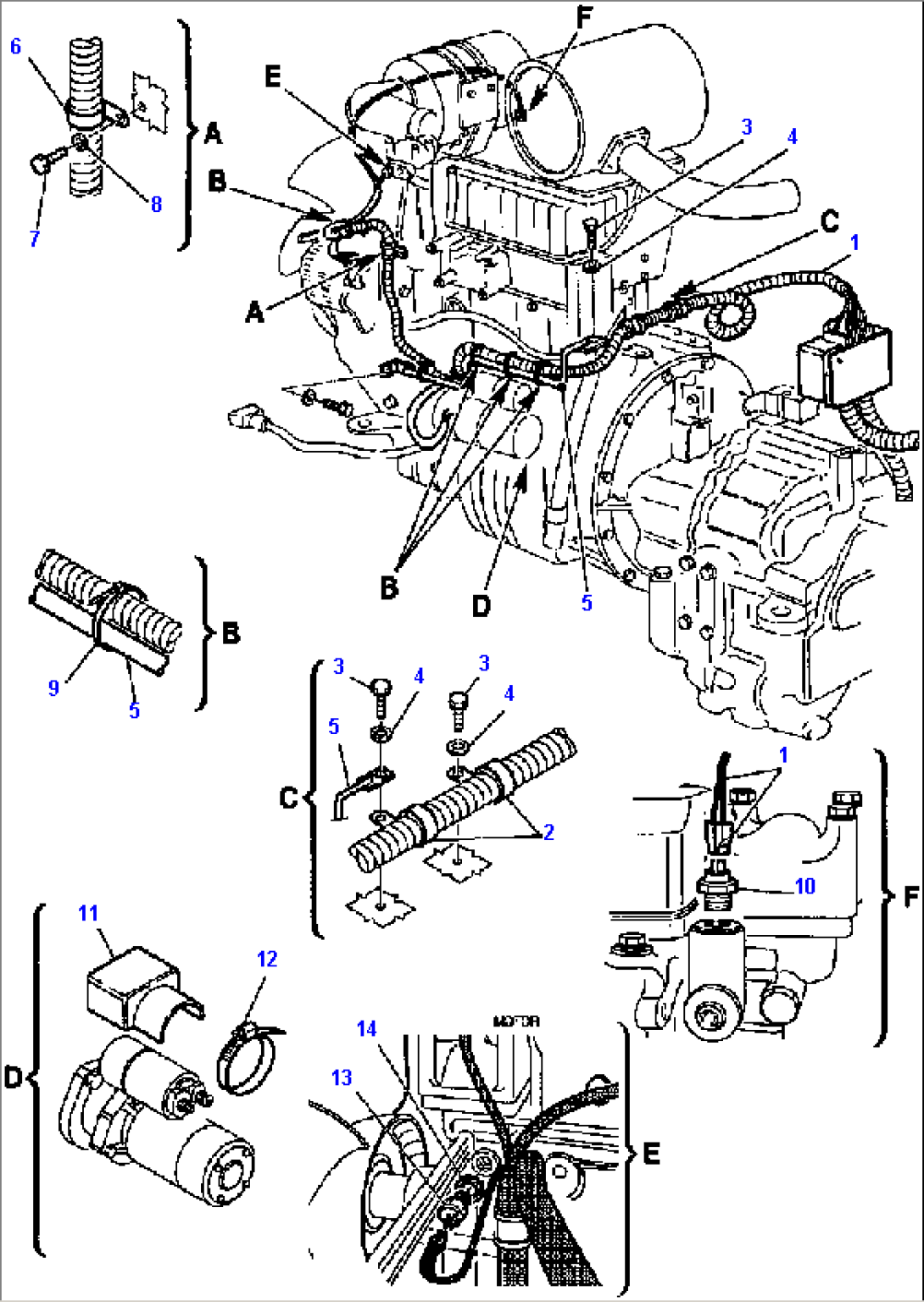

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 312612142 | WIRING HARNESS ASSEMBLY | ||
| 2 | 802660034 | COLLAR | ||
| 3 | 801015109 | BOLT | ||
| 4 | 802170002 | WASHER | ||
| 5 | 312612134 | SUPPORT | ||
| 6 | 802660508 | COLLAR | ||
| 7 | 801015108 | BOLT | ||
| 8 | 802170002 | WASHER | ||
| 9 | 885180010 | WRAPPER | ||
| 10 | 885070024 | WATER TEMPERATURE TRANSMITTER | ||
| 11 | 312607707 | COVER | ||
| 12 | 885190006 | WRAPPER | ||
| 13 | WATER TEMPERATURE SENSOR(SEE FIG. A0501-03A0) | |||
| 14 | GASKET (SEE FIG. A0501-03A0) |
