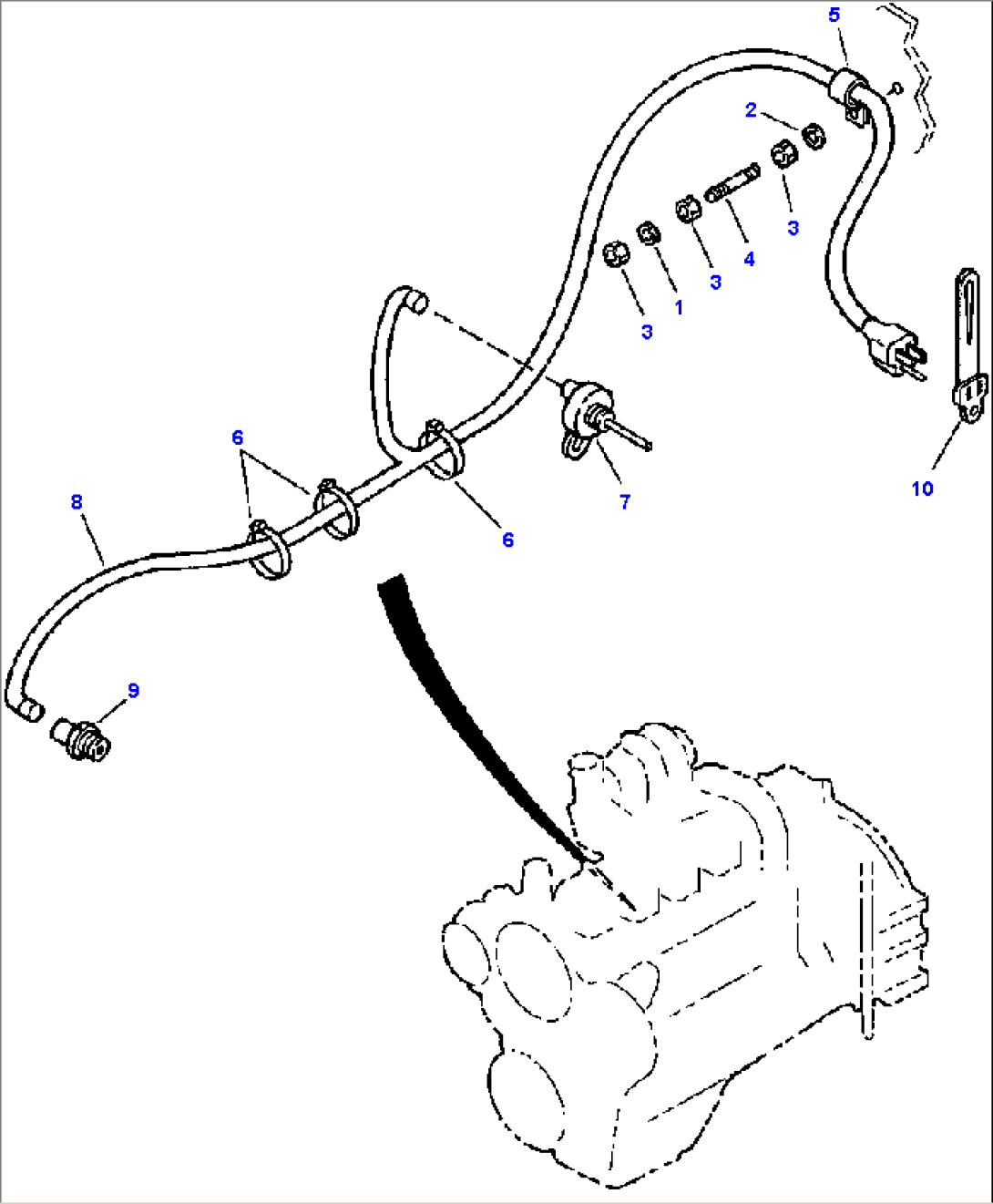

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 25 553 R1 | WASHER | ||
| 2 | 25 544 R1 | WASHER, HARDENED | ||
| 3 | 25 522 R1 | NUT | ||
| 4 | 48 205 | STUD | ||
| 5 | 116 242 | CLAMP, TUBE | ||
| 6 | 306 132 C1 | STRAP, TIE | ||
| 1434 472 H91 | HEATER, BLOCK - 240V | |||
| 7 | 1434 474 H1 | HEATER | ||
| 8 | 1434 656 H1 | WIRING HARNESS | ||
| 9 | 1431 732 H1 | THERMOSTAT | ||
| 1285 303 H91 | HEATER, BLOCK - 120V | |||
| 7 | 1431 727 H1 | HEATER | ||
| 8 | 1431 729 H1 | WIRING HARNESS | ||
| 9 | 1431 732 H1 | THERMOSTAT | ||
| 10 | 1431 727 H1 | PLUG, STRAP | ||
| F1 FOR USE WITH THE 240V UNIT ONLY.FOR USE WITH THE 120V UNIT ONLY. | ||||
| F2 FOR USE WITH THE 120V UNIT ONLY. | ||||
