| Item | Part No. | Part Name | Qty | Serial No. |
| 662 430 C91 | MANIFOLD ASSEMBLY, STEERING | Ser Num- | ||
| 1 | (NSS) | HOUSING | Ser Num- | |
| 2 | 662 434 C1 | SPRING, SPOOL | Ser Num- | |
| 3 | (NSS) | SPOOL, MANIFOLD | Ser Num- | |
| 4 | 662 436 C1 | PLUG, SPOOL | Ser Num- | |
| 5 | 297 459 R1 | RING, SEAL | Ser Num- |
- Главная
- Каталог запчастей
- Бульдозеры
- D87p 2 s/n p092001 up
- Power train and final drive
- Fig. f2300 23a0 steering manifold
Поиск по каталогу

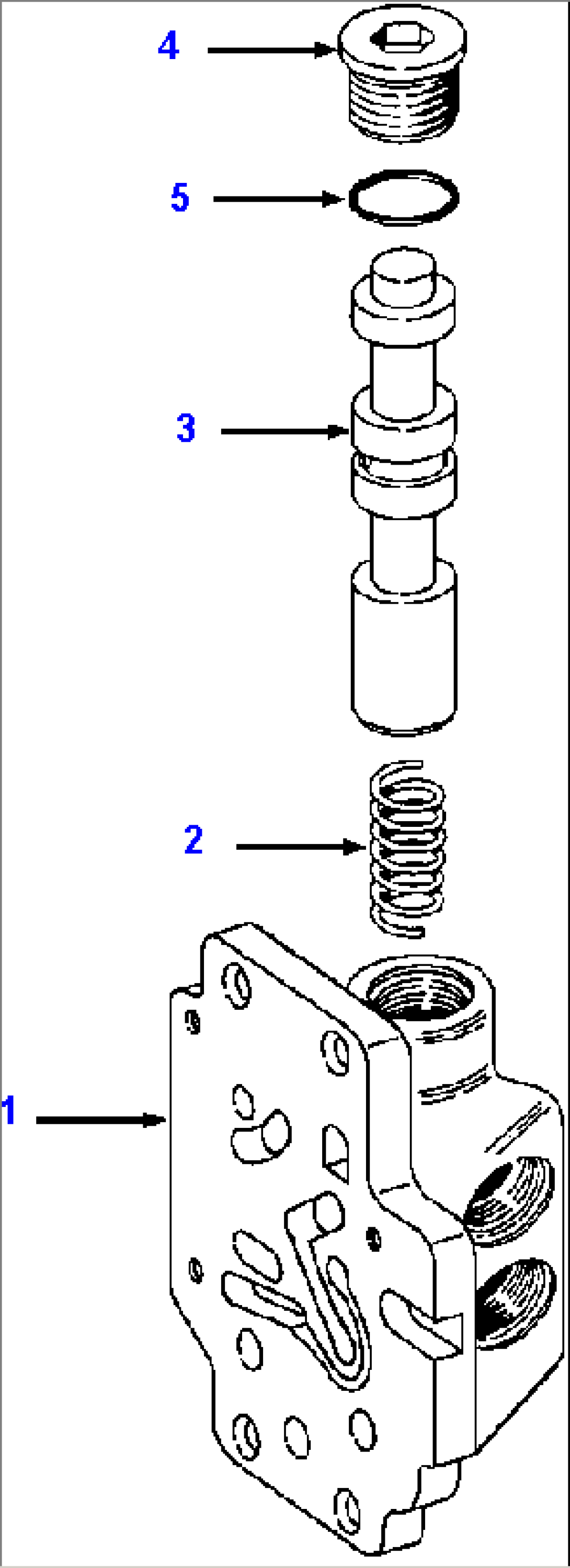

FIG. F2300-23A0 STEERING MANIFOLD
