| Item | Part No. | Part Name | Qty | Serial No. |

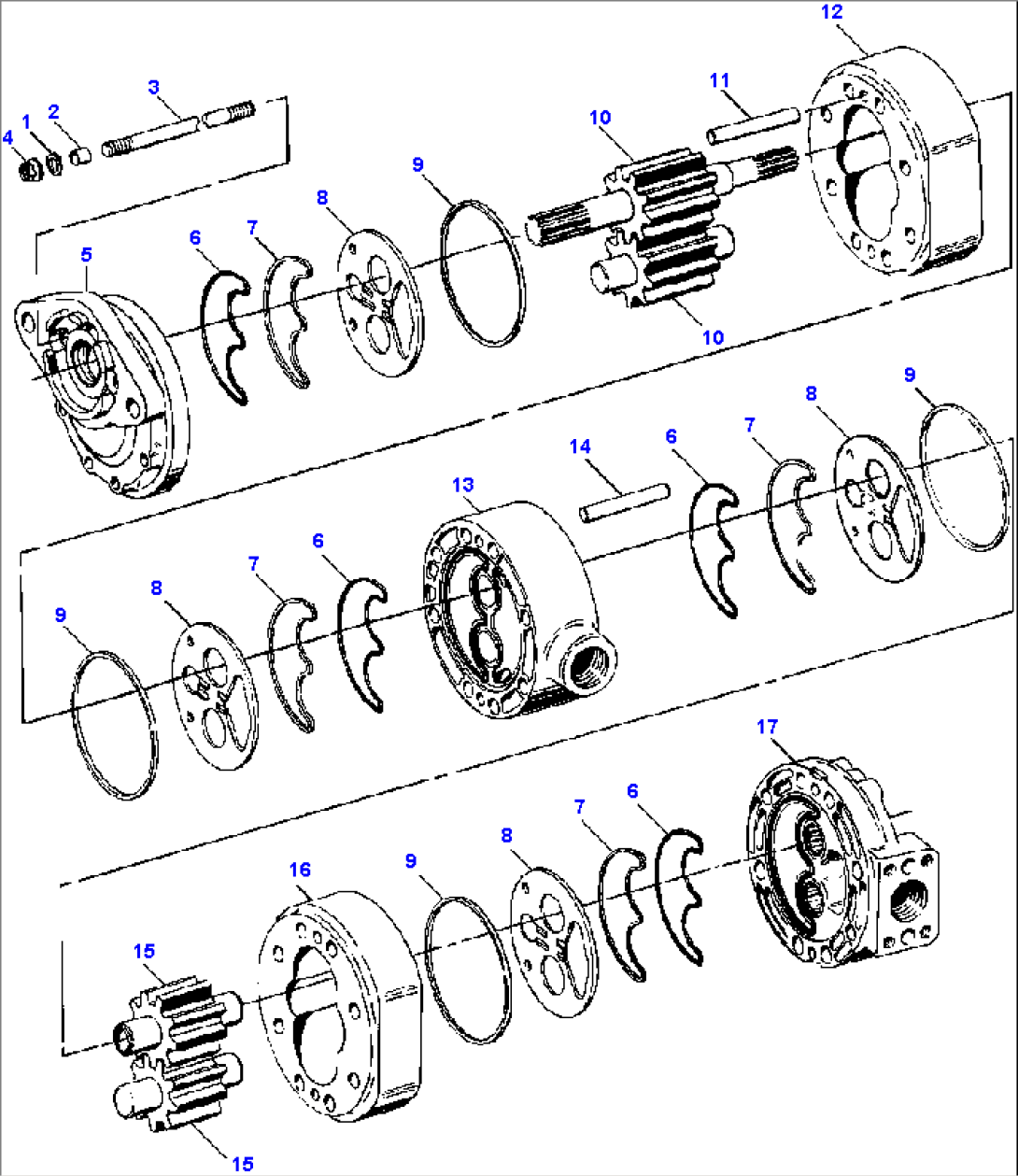

| 1270 886 H92 | PUMP ASSEMBLY, CHARGE AND SCAVENGE | P090001- | ||
| 637 410 C91 | KIT, STUD | P090001- | ||
| 1 | (NSS) | WASHER, FLAT | P090001- | |
| 2 | (NSS) | SLEEVE, TUBE | P090001- | |
| 3 | (NSS) | STUD, TIE ROD | P090001- | |
| 4 | (NSS) | NUT, MOUNTING | P090001- | |
| 5 | (NSS) | FLANGE, MOUNTING | P090001- | |
| 1270 913 H92 | KIT, SEAL | P090001- | ||
| 6 | (NSS) | SEAL, PRELOAD | P090001- | |
| 7 | (NSS) | SEAL, LOAD | P090001- | |
| 8 | (NSS) | PLATE, WEAR | P090001- | |
| 9 | (NSS) | RING, SEAL | P090001- | |
| 10 | (NSS) | GEAR SET, FRONT | P090001- | |
| 11 | (NSS) | PIN, FRONT DOWEL | P090001- | |
| 12 | (NSS) | SECTION, FRONT GEAR | P090001- | |
| 13 | (NSS) | SECTION, FRONT IN AND OUT | P090001- | |
| 14 | (NSS) | PIN, REAR DOWEL | P090001- | |
| 15 | (NSS) | GEAR SET, REAR | P090001- | |
| 16 | (NSS) | SECTION, REAR GEAR | P090001- | |
| 17 | (NSS) | SECTION, REAR IN AND OUT | P090001- |
