| Item | Part No. | Part Name | Qty | Serial No. |

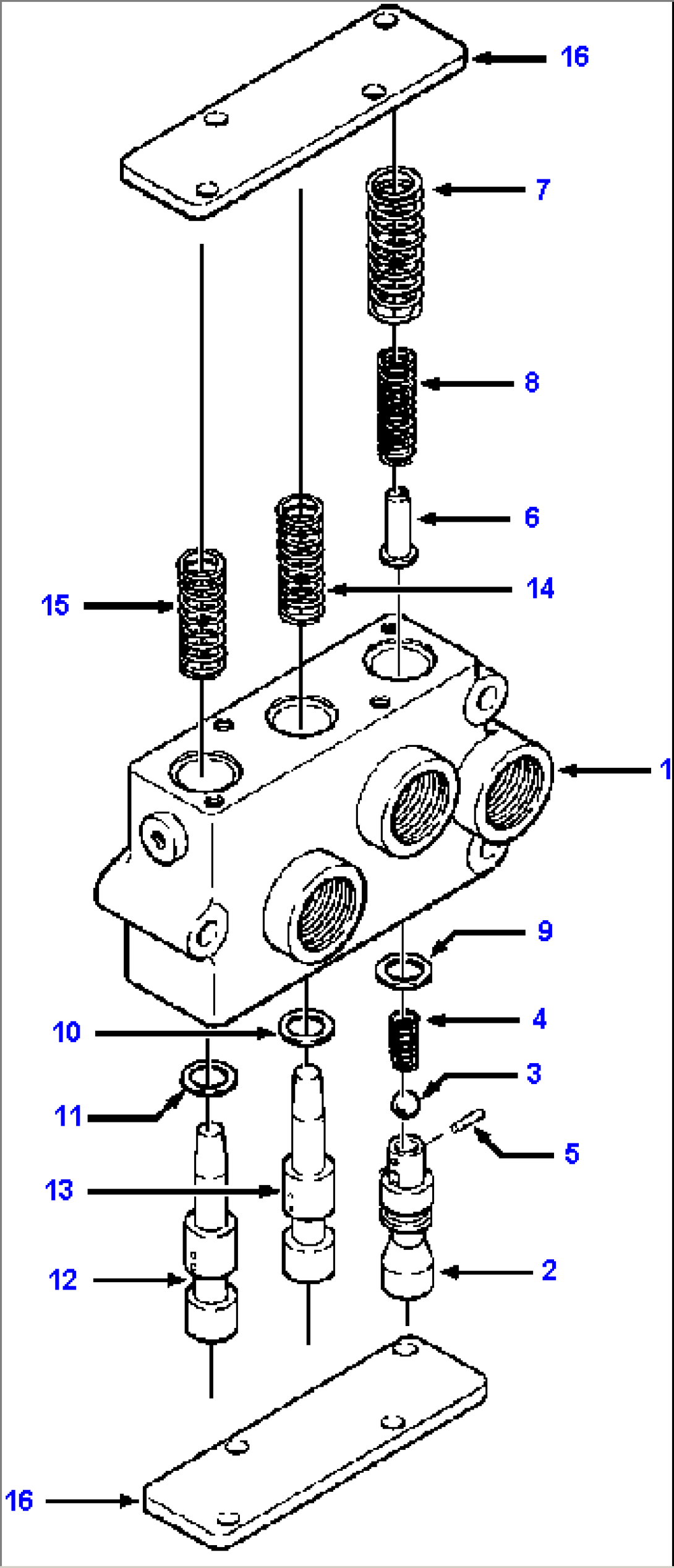

| 706 715 C93 | VALVE ASSEMBLY, PRESSURE REGULATOR | | P086301 -- |
| 1 | NSS | HOUSING, VALVE | | P086301 -- |
| 382 137 R1 | RING, SEAL | | P086301 -- |
| 444 692 | PLUG, PORT | | P086301 -- |
| 104 938 | PLUG, CORK | | P086301 -- |
| 662 287 C92 | SPOOL ASSEMBLY, MAIN | | P086301 -- |
| 2 | NSS | SPOOL, MAIN | | P086301 -- |
| 3 | 17 010 R1 | BALL, CHECK | | P086301 -- |
| 4 | 662 291 C3 | SPRING, CHECK BALL | | P086301 -- |
| 5 | 17 067 R1 | PIN, SPRING | | P086301 -- |
| 6 | 662 290 C1 | PIN, SPRING GUIDE | | P086301 -- |
| 7 | 666 019 C2 | SPRING, MAIN SPOOL - OUTER | | P086301 -- |
| 8 | 666 018 C2 | SPRING, MAIN SPOOL - INNER | | P086301 -- |
| 9 | 662 294 C1 | SHIM, MAIN SPOOL - MAX OF 3 | | P086301 -- |
| 10 | 662 294 C1 | SHIM, CONVERTER SPOOL - MAX OF 5 | | P086301 -- |
| 11 | 662 294 C1 | SHIM, LUBE SPOOL - UP TO MAX OF 3 | | P086301 -- |
| 12 | NSS | SPOOL, LUBE | | P086301 -- |
| 13 | NSS | SPOOL, CONVERTER | | P086301 -- |
| 14 | 706 722 C2 | SPRING, CONVERTER SPOOL | | P086301 -- |
| 15 | 706 658 C1 | SPRING, LUBE SPOOL | | P086301 -- |
| 16 | 662 296 C1 | COVER, END | | P086301 -- |
| 25 955 R1 | BOLT, HEX 5/16NCx5/8 | | P086301 -- |
| 116 120 | WASHER, LOCK 5/16 | | P086301 -- |
| | | | |
| | | | |
| | | | |
| | | | |
| | F1 PART NUMBER IS A NONSERVICE PART AND IS LISTED FOR REFERENCE ONLY. ORDER INDIVIDUAL PIECE PARTS. | | |
| | | | |
