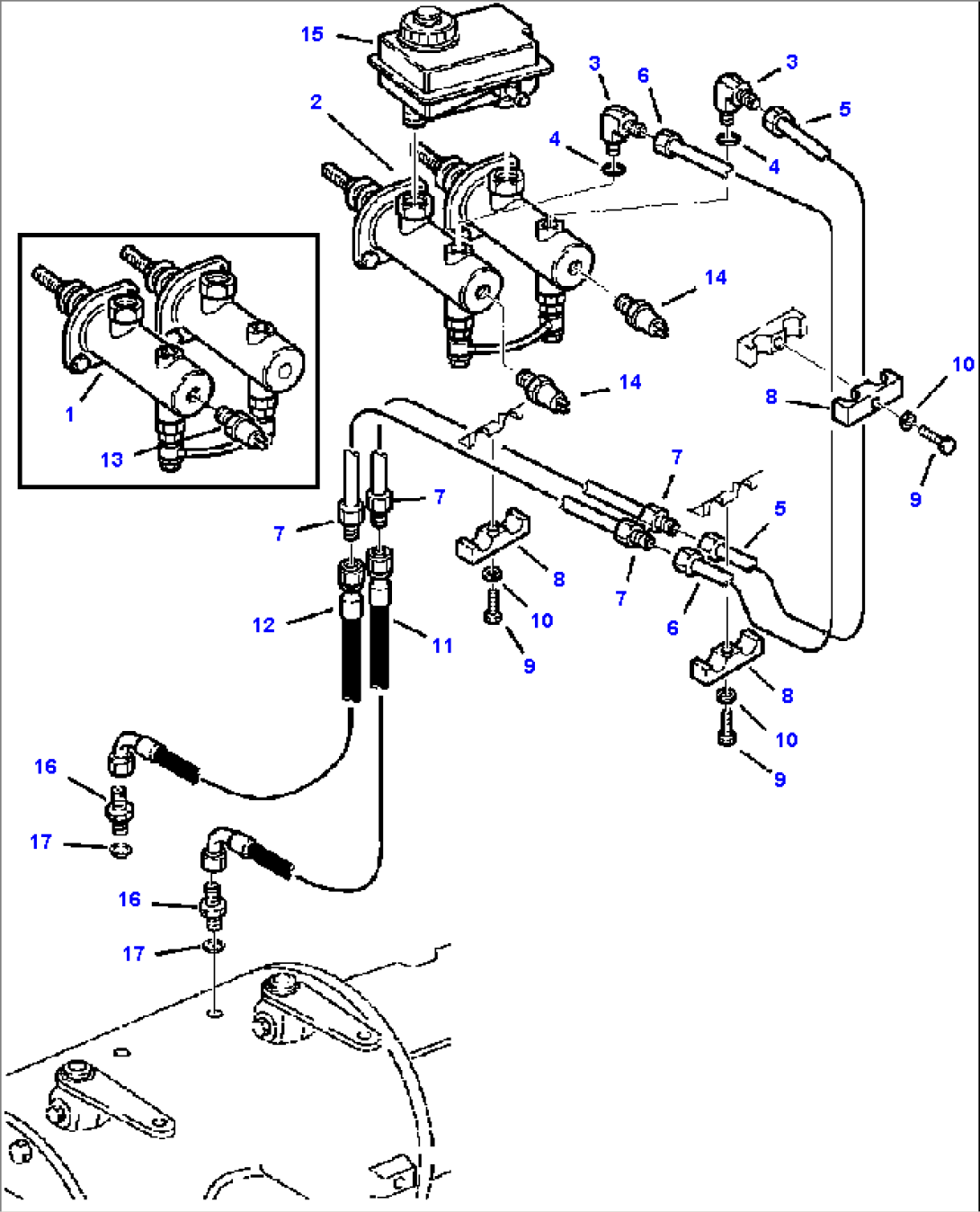

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | BRAKE CYLINDER (SEE FIG. F3000-01A4) | A60029-A60048- | ||
| 2 | BRAKE CYLINDER (SEE FIG. F3000-01A4) | A60049-- | ||
| 3 | 500358154 | UNION, ELBOW | A60029-- | |
| 4 | 855670006 | O-RING | A60029-- | |
| 5 | 312617059 | TUBE, LEFT | A60029-- | |
| 6 | 312617058 | TUBE, RIGHT | A60029-- | |
| 7 | 312617060 | TUBE, CENTER | A60029-- | |
| 8 | 818000016 | CLAMP | A60029-- | |
| 9 | 801015066 | BOLT | A60029-- | |
| 10 | 802170000 | WASHER | A60029-- | |
| 11 | 392011176 | HOSE, LEFT | A60029-- | |
| 12 | 392011092 | HOSE, RIGHT | A60029-- | |
| 13 | 885411468 | SWITCH, STOP | A60029-A60048- | |
| 14 | 885411468 | SWITCH, STOP | A60049-- | |
| 15 | 880011017 | TANK, RESERVOIR | A60029-- | |
| 16 | 312610601 | UNION | A60029-- | |
| 17 | 855670015 | O-RING | A60029-- |
