| Item | Part No. | Part Name | Qty | Serial No. |

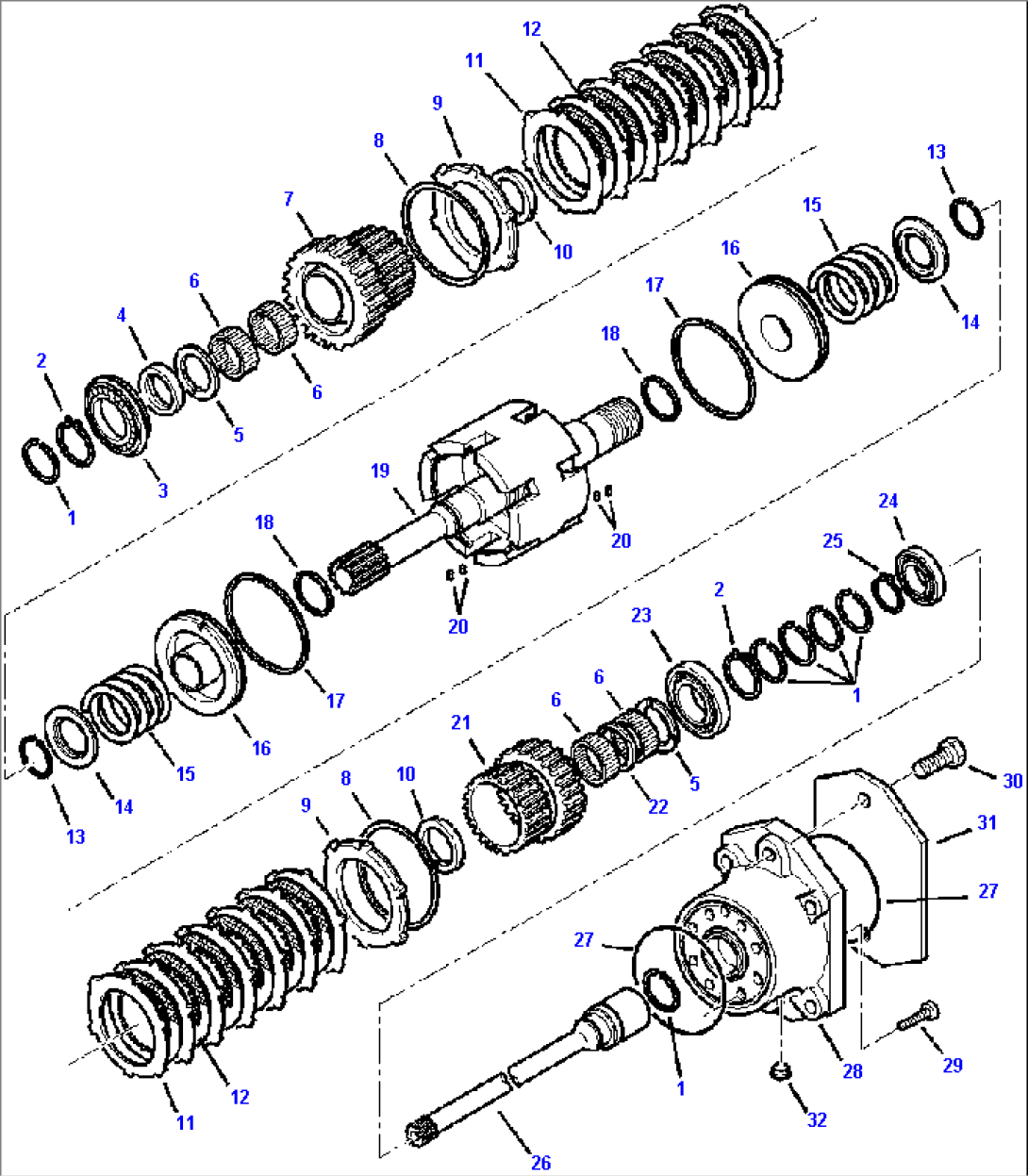

| TRANSMISSION (SEE FIG. F3220-01A0) | A90002-A90013- | |||
| 1 | CA0137823 | SEAL RING | A90002-A90013- | |
| 2 | CA0024800 | SNAP RING | A90002-A90013- | |
| 3 | CA0026160 | BEARING | A90002-A90013- | |
| 4 | CA0129885 | SPACER | A90002-A90013- | |
| 5 | CA0129886 | THRUST WASHER | A90002-A90013- | |
| 6 | CA0028041 | NEEDLE BEARING | A90002-A90013- | |
| 7 | CA0138392 | GEAR | A90002-A90013- | |
| 8 | CA0025067 | LOCK RING | A90002-A90013- | |
| 9 | CA0135020 | LOCK RING | A90002-A90013- | |
| 10 | CA0129901 | THRUST WASHER | A90002-A90013- | |
| 11 | CA0133924 | DRIVE PLATE | A90002-A90013- | |
| 12 | CA0138574 | DISC PLATE | A90002-A90013- | |
| 13 | CA0025031 | LOCK RING | A90002-A90013- | |
| 14 | CA0133912 | LOCK SPRING COVER | A90002-A90013- | |
| 15 | CA0129896 | SPRING | A90002-A90013- | |
| 16 | CA0133905 | CLUTCH PISTON | A90002-A90013- | |
| 17 | CA0138790 | SEAL RING | A90002-A90013- | |
| 18 | CA0138788 | SEAL RING | A90002-A90013- | |
| 19 | CA0135198 | SHAFT AND HOUSING | A90002-A90013- | |
| 20 | CA0024321 | SPLIT PIN | A90002-A90013- | |
| 21 | CA0138358 | GEAR | A90002-A90013- | |
| 22 | CA0129903 | SPACER | A90002-A90013- | |
| 23 | CA0025829 | BEARING | A90002-A90013- | |
| 24 | CA0025735 | BEARING | A90002-A90013- | |
| 25 | CA0024785 | SNAP RING | A90002-A90013- | |
| 26 | CA0138383 | PTO SHAFT | A90002-A90013- | |
| 27 | CA0028571 | O-RING | A90002-A90013- | |
| 28 | CA0138387 | FLANGE | A90002-A90013- | |
| 29 | CA0021410 | BOLT | A90002-A90013- | |
| 30 | CA0021009 | BOLT | A90002-A90013- | |
| 31 | CA0138550 | COVER | A90002-A90013- | |
| 32 | CA0030720 | PLUG | A90002-A90013- | |
