| Item | Part No. | Part Name | Qty | Serial No. |

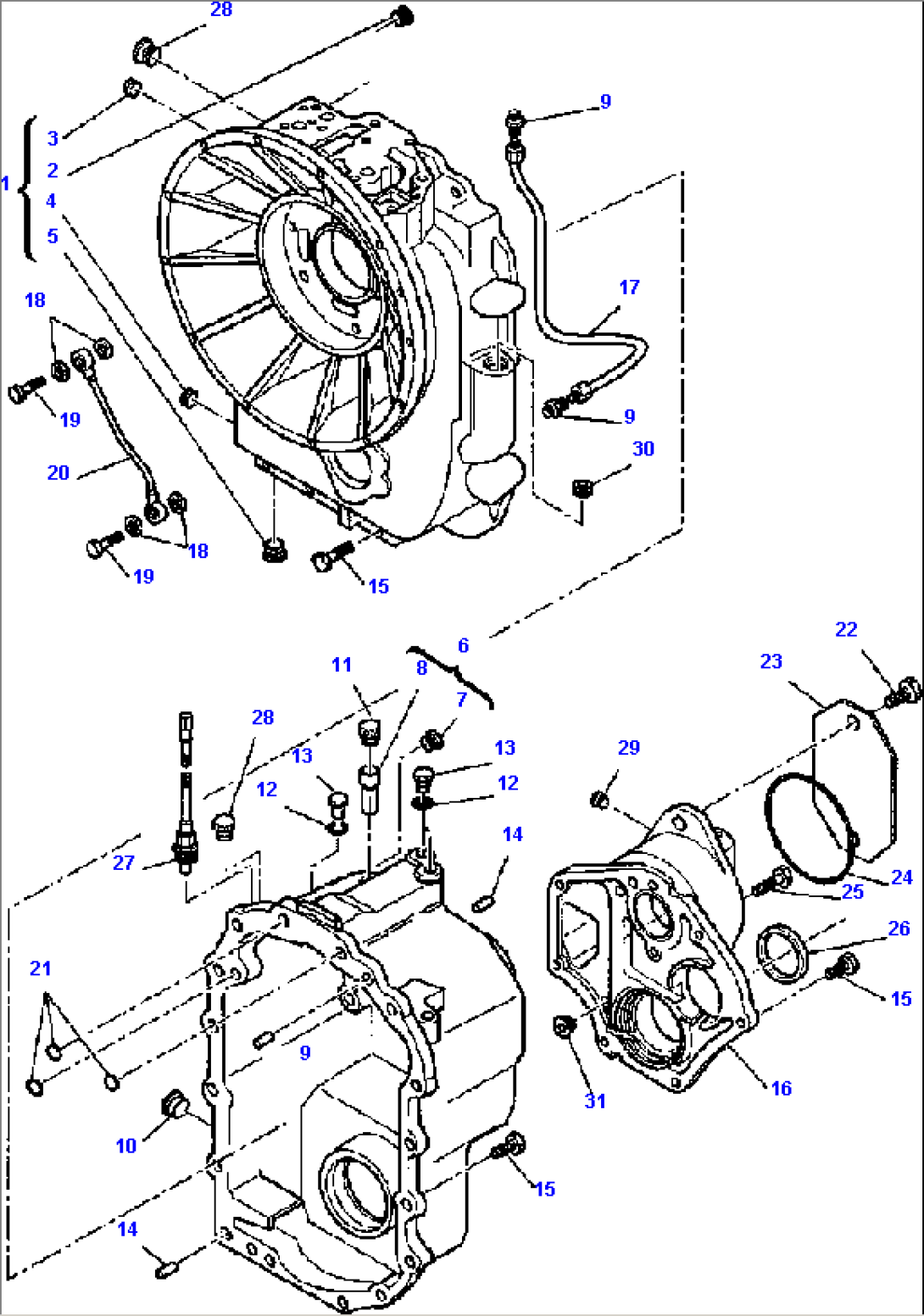

| TRANSMISSION ASSEMBLY (SEE FIG. F3220-01A0) | A60001- | |||
| 1 | CA0139449 | HOUSING KIT - FRONT | A60001- | |
| 2 | CA0021570 | PLUG | A60001- | |
| 3 | CA0021557 | PLUG | A60001- | |
| 4 | CA0021561 | PLUG | A60001- | |
| 5 | CA0021582 | PLUG | A60001- | |
| 6 | CA0139441 | HOUSING KIT - REAR | A60001- | |
| 7 | CA0021570 | PLUG | A60001- | |
| 8 | CA0139278 | PIPE, BREATHER | A60001- | |
| 9 | CA0131364 | UNION | A60001- | |
| 10 | CA0125280 | PLUG, OIL | A60001- | |
| 11 | CA0030368 | BREATHER | A60001- | |
| 12 | CA0023260 | WASHER, COPPER | A60001- | |
| 13 | CA0021322 | PLUG | A60001- | |
| 14 | CA0072259 | PIN | A60001- | |
| 15 | CA0020852 | BOLT | A60001- | |
| 16 | CA0138547 | COVER, REAR HOUSING END | A60001- | |
| 17 | CA0130393 | PIPE, OIL (TUBE) | A60001- | |
| 18 | CA0023272 | WASHER, COPPER | A60001- | |
| 19 | CA0130663 | BOLT | A60001- | |
| 20 | CA0132634 | PIPE, LUBRICATION (TUBE) | A60001- | |
| 21 | CA0028560 | O-RING | A60001- | |
| 22 | CA0021009 | BOLT | A60001- | |
| 23 | CA0138550 | COVER (PROTECTIVE END PLATE) | A60001- | |
| 24 | CA0028571 | O-RING | A60001- | |
| 25 | CA0020858 | BOLT | A60001- | |
| 26 | CA0025485 | SEAL | A60001- | |
| 27 | CA0143687 | SENSOR, OIL TEMPERATURE | A60001- | |
| 28 | CA0030745 | PLUG | A60001- | |
| 29 | CA0030720 | PLUG | A60001- | |
| 30 | CA0021585 | PLUG | A60001- | |
| 31 | CA0021570 | PLUG | A60001- |
