| Item | Part No. | Part Name | Qty | Serial No. |

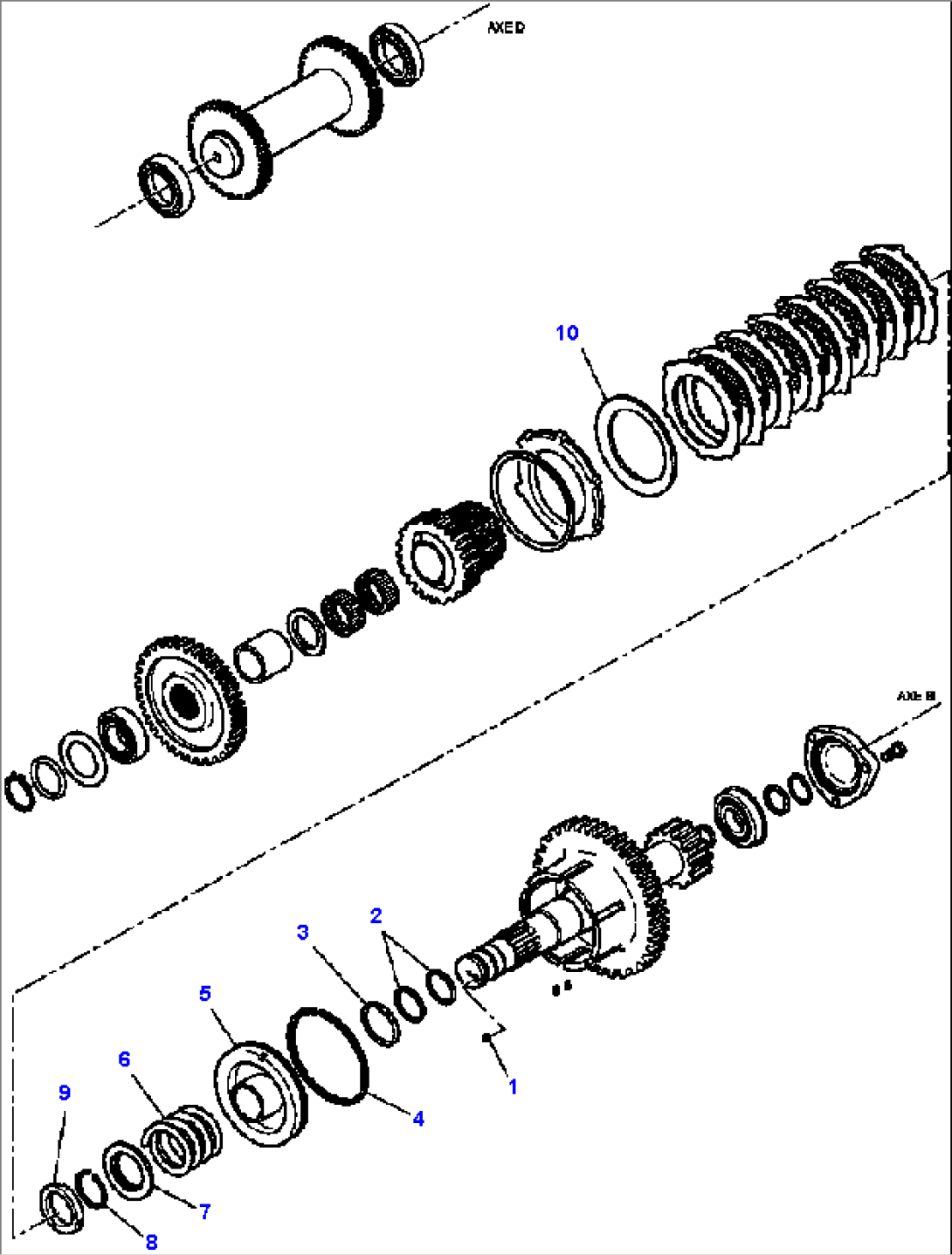

| TRANSMISSION ASSEMBLY(SEE FIG. F3220-02A0) | A90001 -- | |||
| 1 | CA0021558 | PLUG | A90001 -- | |
| 2 | CA0138786 | SEAL RING | A90001 -- | |
| 3 | CA0138788 | SEAL RING | A90001 -- | |
| 4 | CA0138790 | SEAL RING | A90001 -- | |
| 5 | CA0140126 | CLUTCH PISTON | A90001 -- | |
| 6 | CA0129896 | SPRING | A90001 -- | |
| 7 | CA0133912 | LOCK-SPRING COVER | A90001 -- | |
| 8 | CA0025031 | LOCKRING | A90001 -- | |
| 9 | CA0129901 | THRUST WASHER | A90001 -- | |
| 10 | CA0140116 | BELLEVILLE WASHER | A90001 -- |
