| Item | Part No. | Part Name | Qty | Serial No. |

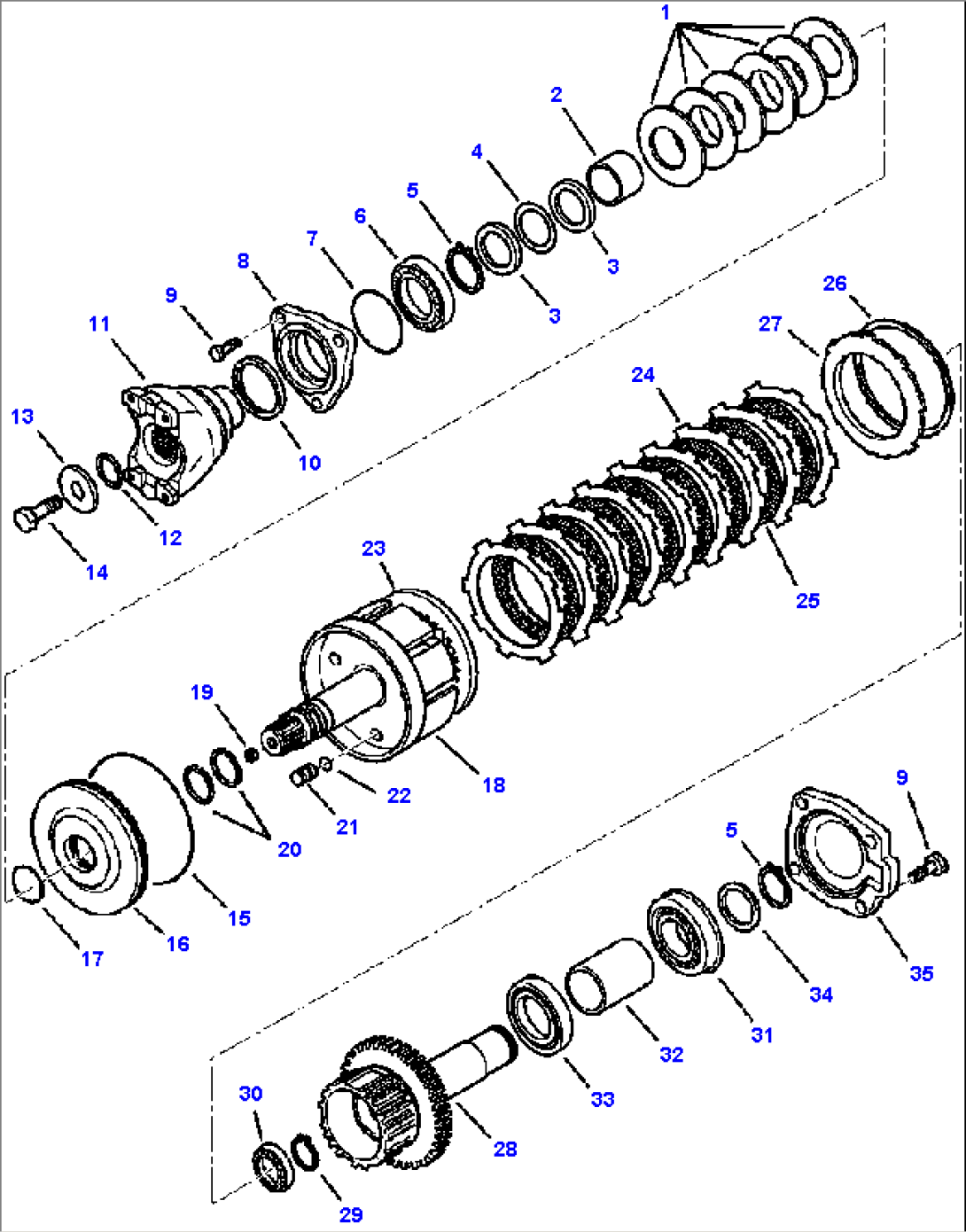

| TRANSMISSION (SEE FIG. F3300-11A0) | A40053-- | |||
| 1 | CA0138399 | WASHER, BELLEVILLE | A40053-- | |
| 2 | CA0138394 | SPACER | A40053-- | |
| 3 | CA0138391 | WASHER, THRUST | A40053-- | |
| 4 | CA0106866 | SHIM .1 MM | A40053-- | |
| CA0106867 | SHIM .3 MM | A40053-- | ||
| CA0106868 | SHIM .5 MM | A40053-- | ||
| 5 | CA0024799 | RING, SNAP | A40053-- | |
| 6 | CA0025809 | BEARING | A40053-- | |
| 7 | CA0028528 | O-RING | A40053-- | |
| 8 | CA0139343 | COVER | A40053-- | |
| 9 | CA0020852 | BOLT | A40053-- | |
| 10 | CA0025485 | SEAL, OIL | A40053-- | |
| 11 | CA0144452 | FLANGE | A40053-- | |
| 12 | CA0028131 | O-RING | A40053-- | |
| 13 | CA0129924 | WASHER | A40053-- | |
| 14 | CA0123918 | BOLT | A40053-- | |
| 15 | CA0028624 | O-RING | A40053-- | |
| 16 | CA0139341 | PISTON, CLUTCH | A40053-- | |
| 17 | CA0028548 | O-RING | A40053-- | |
| 18 | CA0139338 | SHAFT, OUTPUT | A40053-- | |
| 19 | CA0021558 | PLUG | A40053-- | |
| 20 | CA0139197 | RING, SEAL | A40053-- | |
| 21 | CA0139342 | PIN | A40053-- | |
| 22 | CA0028534 | O-RING | A40053-- | |
| 23 | CA0138384 | PLATE, BRAKE | A40053-- | |
| 24 | CA0141113 | PLATE, CLUTCH DRIVE | A40053-- | |
| 25 | CA0141112 | PLATE, CLUTCH | A40053-- | |
| 26 | CA0025009 | RING, LOCK | A40053-- | |
| 27 | CA0141114 | RING, LOCK | A40053-- | |
| 28 | CA0139340 | GEAR | A40053-- | |
| 29 | CA0024780 | RING, SNAP | A40053-- | |
| 30 | CA0025818 | BEARING | A40053-- | |
| 31 | CA0026190 | BEARING | A40053-- | |
| 32 | CA0138395 | SPACER | A40053-- | |
| 33 | CA0027534 | BEARING | A40053-- | |
| 34 | CA0079175 | WASHER, THRUST | A40053-- | |
| 35 | CA0138398 | COVER | A40053-- |
