| Item | Part No. | Part Name | Qty | Serial No. |

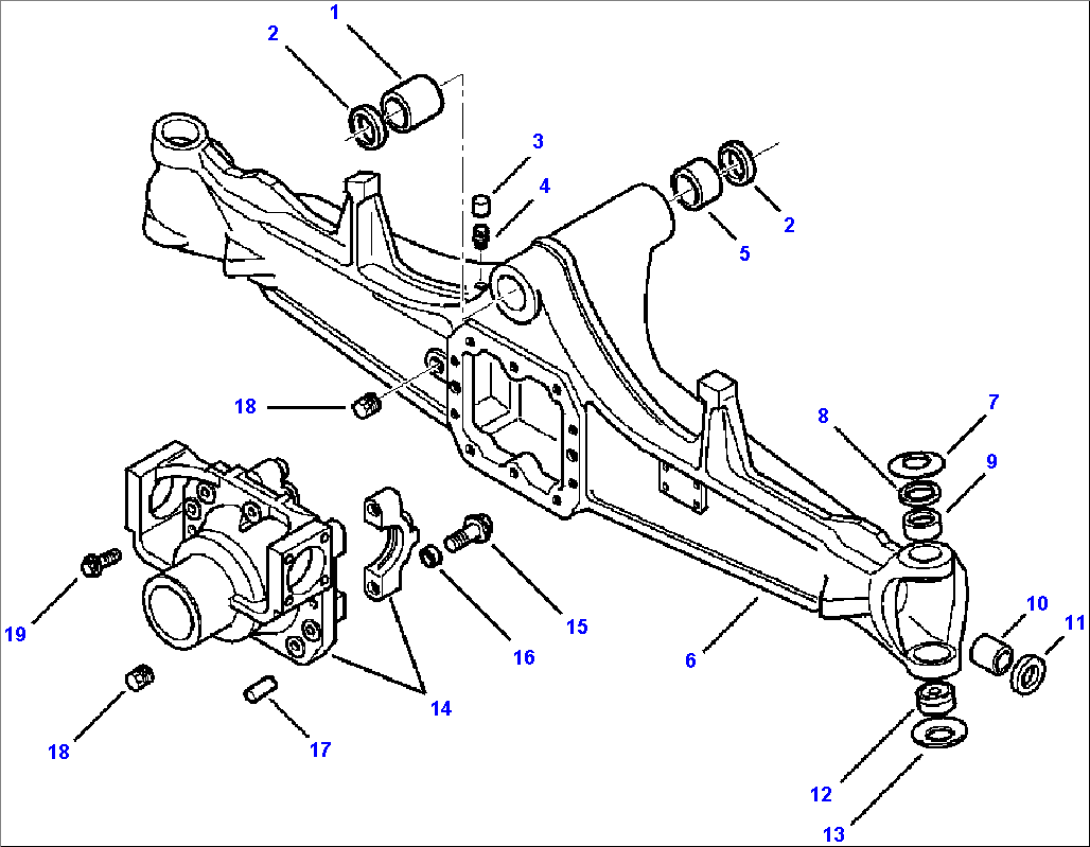

| FRONT AXLE (SEE FIG. F3400-01A0) | A40034-- | |||
| 1 | CA0126610 | BUSHING | A40034-- | |
| 2 | CA0120717 | SEAL | A40034-- | |
| 3 | CA0130532 | COVER | A40034-- | |
| 4 | CA0104988 | BREATHER | A40034-- | |
| 5 | CA0126611 | BUSHING | A40034-- | |
| 6 | CA0145048 | HOUSING, AXLE | A40034-- | |
| 7 | CA0128633 | SPRING | A40034-- | |
| 8 | CA0131265 | WASHER, SPACER | A40034-- | |
| 9 | CA0123641 | BUSHING | A40034-- | |
| 10 | CA0116962 | BUSHING | A40034-- | |
| 11 | CA0145761 | SEAL | A40034-- | |
| 12 | CA0123726 | BEARING, SPHERICAL | A40034-- | |
| 13 | CA0128630 | WASHER, SPRING | A40034-- | |
| CA0122964 | SUPPORT, DIFFERENTIAL | A40034-- | ||
| 14 | (NSS) | DIFF SUPPORT | A40034-- | |
| 15 | CA0126022 | BOLT | A40034-- | |
| 16 | CA0072235 | BUSHING | A40034-- | |
| 17 | CA0087660 | PIN | A40034-- | |
| 18 | CA0092270 | PLUG, OIL | A40034-- | |
| 19 | CA0125827 | BOLT | A40034-- |
