| Item | Part No. | Part Name | Qty | Serial No. |

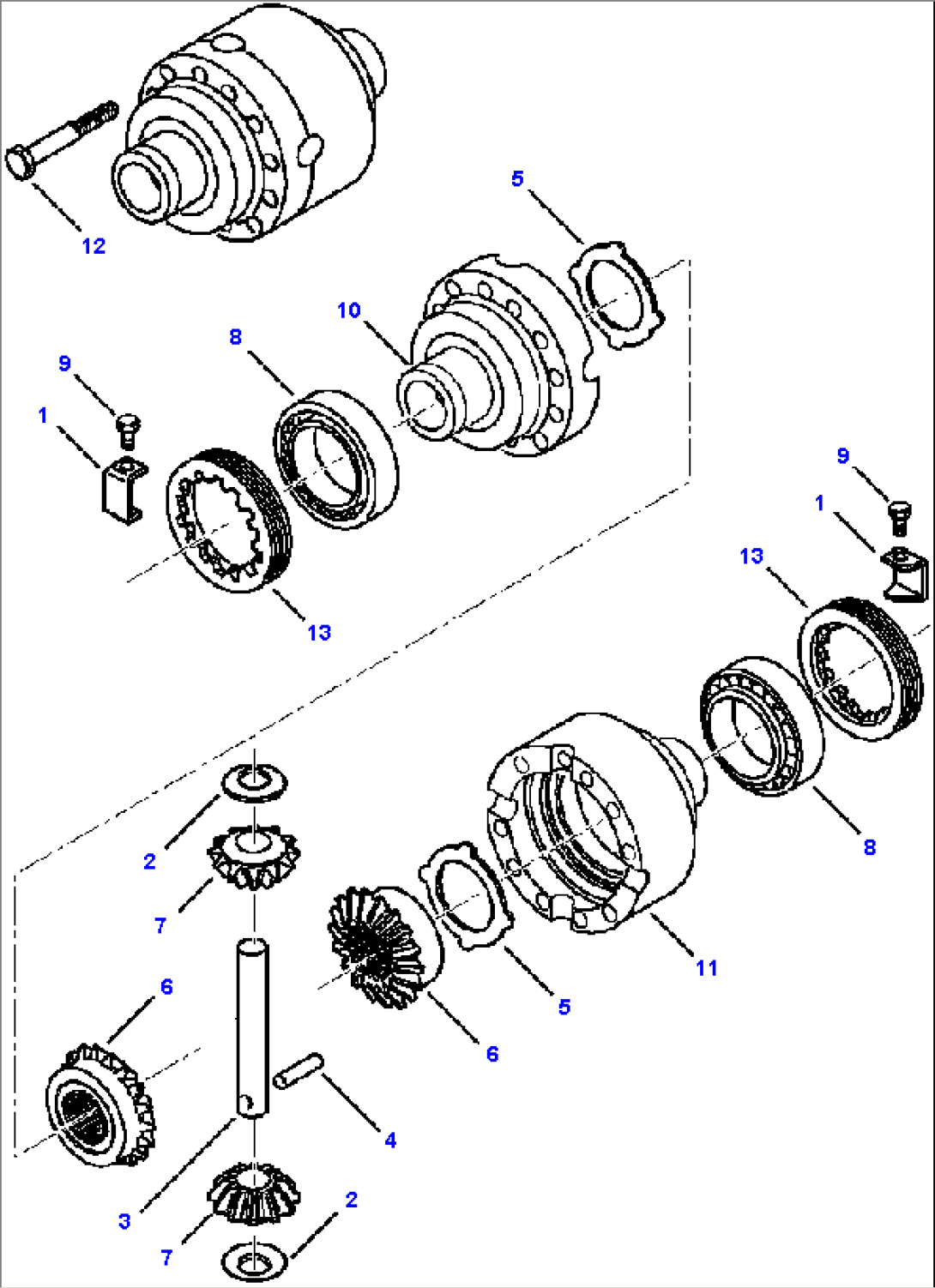

| FRONT AXLE (SEE FIG. F3400-01A0) | A40034-- | |||
| 1 | CA0107778 | PLATE, LOCKING | A40034-- | |
| CA0066161 | DIFFERENTIAL KIT | A40034-- | ||
| 2 | CA0115730 | WASHER, THRUST | A40034-- | |
| 3 | CA0115731 | PIN | A40034-- | |
| 4 | CA0116451 | PIN | A40034-- | |
| 5 | CA0120361 | PLATE, DRIVE | A40034-- | |
| 6 | (NSS) | GEAR, SIDE | A40034-- | |
| 7 | (NSS) | GEAR, DRIVE | A40034-- | |
| 8 | CA0027309 | BEARING | A40034-- | |
| 9 | CA0128440 | BOLT | A40034-- | |
| CA0137972 | DIFFERENTIAL HOUSING | A40034-- | ||
| 10 | (NSS) | COVER, HOUSING | A40034-- | |
| 11 | (NSS) | HOUSING, DIFF | A40034-- | |
| 12 | CA0125552 | BOLT | A40034-- | |
| 13 | CA0107400 | NUT, RING | A40034-- |
