| Item | Part No. | Part Name | Qty | Serial No. |

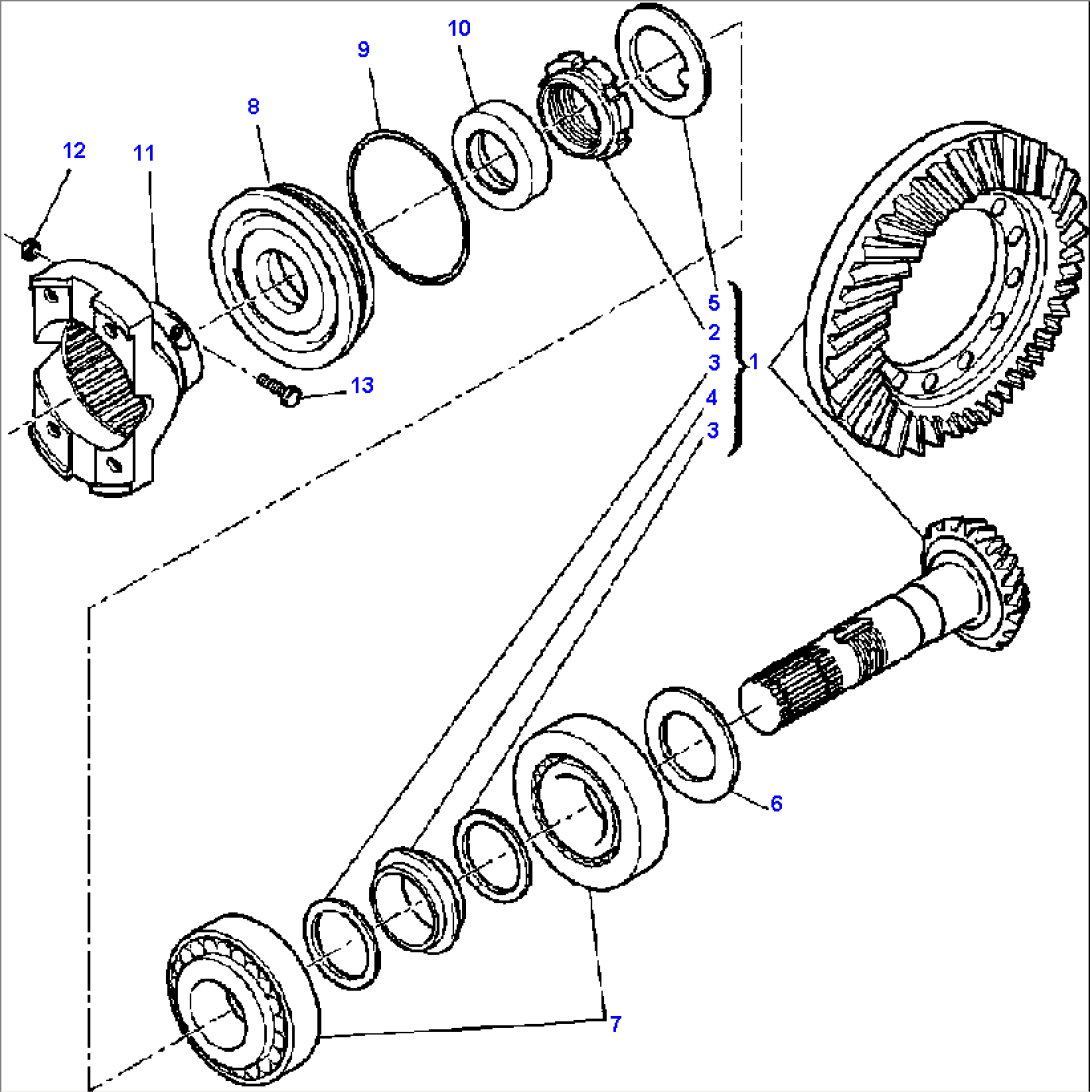

| FRONT AXLE ASSEMBLY (SEE FIG. F3400-01A0) | A60001- | |||
| 1 | CA0065526 | BEVEL GEAR/PINION SET | A60001- | |
| 2 | CA0115054 | NUT, RING | A60001- | |
| 3 | CA0125829 | WASHER | A60001- | |
| 4 | CA0125806 | SPACER, FLANGED | A60001- | |
| 5 | CA0113717 | WASHER | A60001- | |
| 6 | CA0132265 | SHIM 2.50 MM | A60001- | |
| CA0132266 | SHIM 2.60 MM | A60001- | ||
| CA0132267 | SHIM 2.70 MM | A60001- | ||
| CA0132268 | SHIM 2.80 MM | A60001- | ||
| CA0132269 | SHIM 2.90 MM | A60001- | ||
| CA0132270 | SHIM 3.00 MM | A60001- | ||
| CA0132271 | SHIM 3.10 MM | A60001- | ||
| CA0132272 | SHIM 3.20 MM | A60001- | ||
| CA0132273 | SHIM 3.30 MM | A60001- | ||
| CA0132274 | SHIM 3.40 MM | A60001- | ||
| 7 | CA0027350 | BEARING | A60001- | |
| 8 | CA0129929 | COVER | A60001- | |
| 9 | CA0028212 | O-RING | A60001- | |
| 10 | CA0134363 | SEAL | A60001- | |
| 11 | CA0132707 | FLANGE | A60001- | |
| 12 | CA0022411 | NUT | A60001- | |
| 13 | CA0021105 | BOLT | A60001- |
