| Item | Part No. | Part Name | Qty | Serial No. |

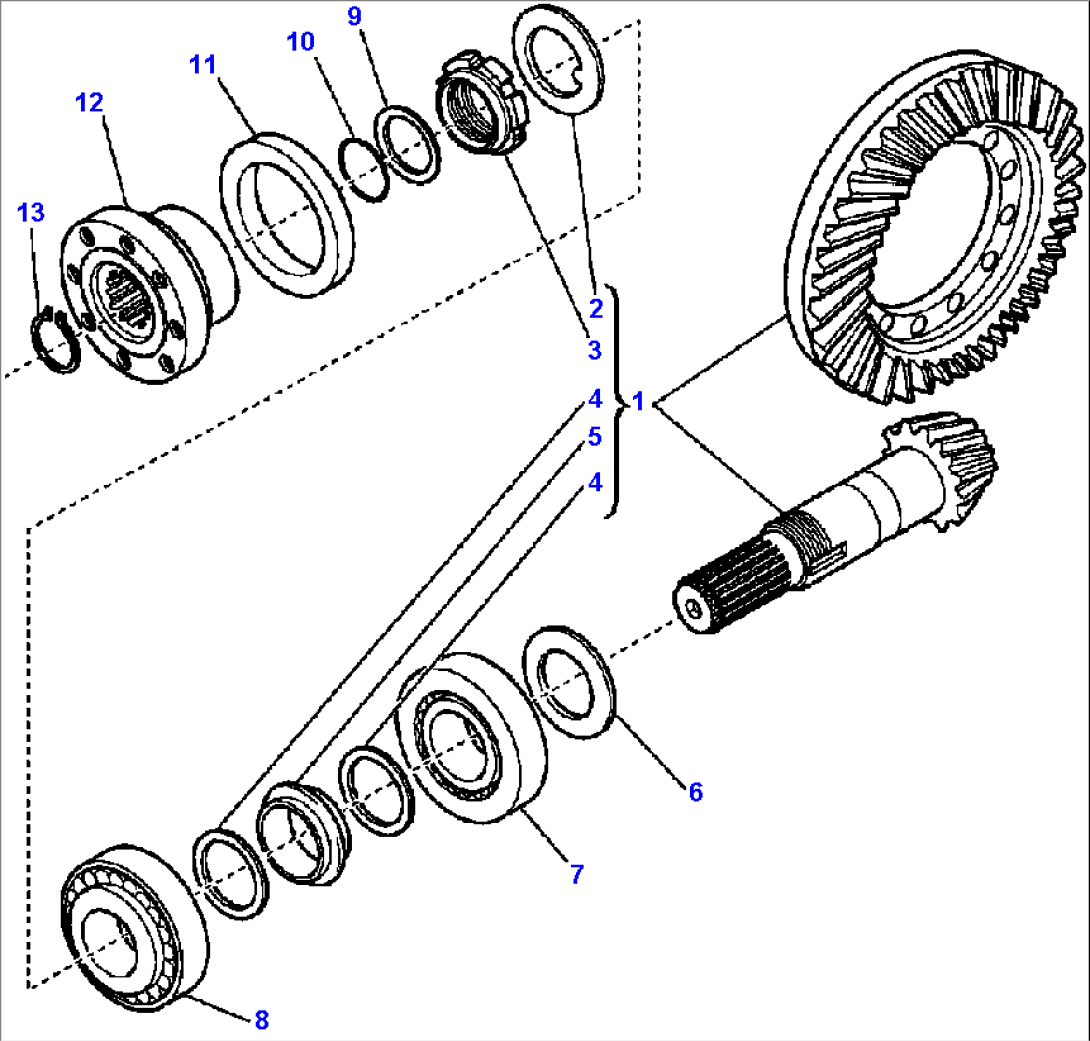

| FRONT AXLE ASSEMBLY (SEE FIG. F3400-02A0) | A40001 -- | |||
| 1 | CA0066686 | BEVEL GEAR/PINION SET | A40001 -- | |
| 2 | CA0113717 | LOCKWASHER | A40001 -- | |
| 3 | CA0115054 | RING NUT | A40001 -- | |
| 4 | CA0125829 | WASHER | A40001 -- | |
| 5 | CA0138692 | COLLAPSIBLE SPACER | A40001 -- | |
| 6 | CA0134186 | SHIM 2.50 MM | A40001 -- | |
| CA0134187 | SHIM 2.60 MM | A40001 -- | ||
| CA0134188 | SHIM 2.70 MM | A40001 -- | ||
| CA0134189 | SHIM 2.80 MM | A40001 -- | ||
| CA0134190 | SHIM 2.90 MM | A40001 -- | ||
| CA0134191 | SHIM 3.00 MM | A40001 -- | ||
| CA0134192 | SHIM 3.10 MM | A40001 -- | ||
| CA0134193 | SHIM 3.20 MM | A40001 -- | ||
| CA0134194 | SHIM 3.30 MM | A40001 -- | ||
| CA0134195 | SHIM 3.40 MM | A40001 -- | ||
| 7 | CA0027351 | BEARING | A40001 -- | |
| 8 | CA0027350 | BEARING | A40001 -- | |
| 9 | CA0123402 | WASHER | A40001 -- | |
| 10 | CA0028532 | O-RING | A40001 -- | |
| 11 | CA0119990 | SEAL RING | A40001 -- | |
| 12 | CA0123399 | FLANGE | A40001 -- | |
| 13 | CA0024789 | SNAP RING | A40001 -- |
