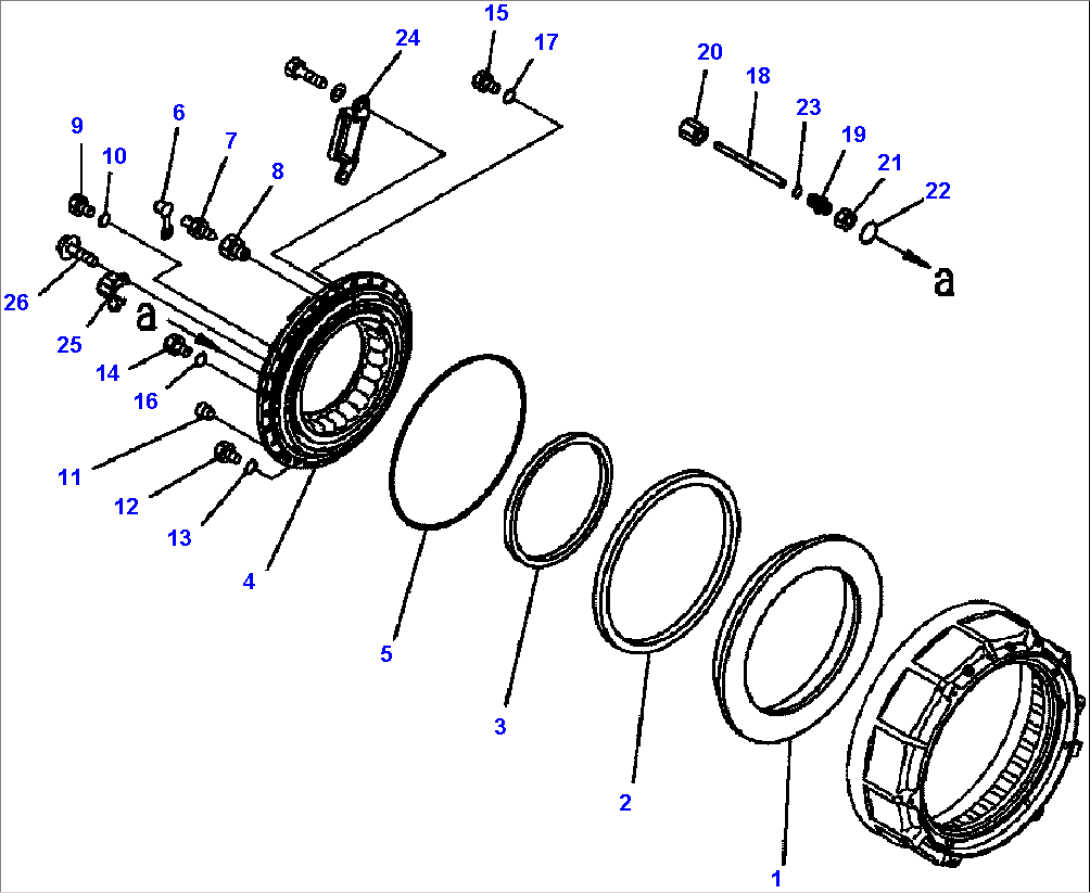

| Item | Part No. | Part Name | Qty | Serial No. |
| CENTER AXLE (SEE FIG. F3450-01A0) | A10001-- | |||
| FINAL DRIVE (SEE FIG. F3450-05A0) | A10001-- | |||
| 1 | 56B-33-11121 | PISTON | A10001-- | |
| 2 | 421-33-11440 | SEAL | A10001-- | |
| 3 | 56B-33-11430 | SEAL | A10001-- | |
| 4 | 56B-33-11114 | CYLINDER | A10001-- | |
| 5 | 07000-15490 | O-RING | A10001-- | |
| 6 | 232-32-11350 | CAP | A10001-- | |
| 7 | 566-32-11430 | BLEEDER | A10001-- | |
| 8 | 581-32-12140 | PLUG | A10001-- | |
| 9 | 07040-11812 | PLUG | A10001-- | |
| 10 | 07002-11823 | O-RING | A10001-- | |
| 11 | 07043-70211 | PLUG | A10001-- | |
| 12 | 07040-11409 | PLUG | A10001-- | |
| 13 | 07002-11423 | O-RING | A10001-- | |
| 14 | 07040-12012 | PLUG | A10001-- | |
| 15 | 07040-12412 | PLUG | A10001-- | |
| 16 | 07002-12034 | O-RING | A10001-- | |
| 17 | 07002-12434 | O-RING | A10001-- | |
| 18 | 56B-33-11711 | SHAFT | A10001-- | |
| 19 | 569-33-71720 | GUIDE | A10001-- | |
| 20 | 569-33-71730 | CAP | A10001-- | |
| 21 | 01583-12414 | NUT | A10001-- | |
| 22 | 07002-12434 | O-RING | A10001-- | |
| 23 | 07000-11005 | O-RING | A10001-- | |
| 24 | 56B-33-12510 | COVER | A10001-- | |
| 25 | 56B-33-11750 | COVER | A10001-- | |
| 26 | 01435-01020 | BOLT | A10001-- |
