| Item | Part No. | Part Name | Qty | Serial No. |

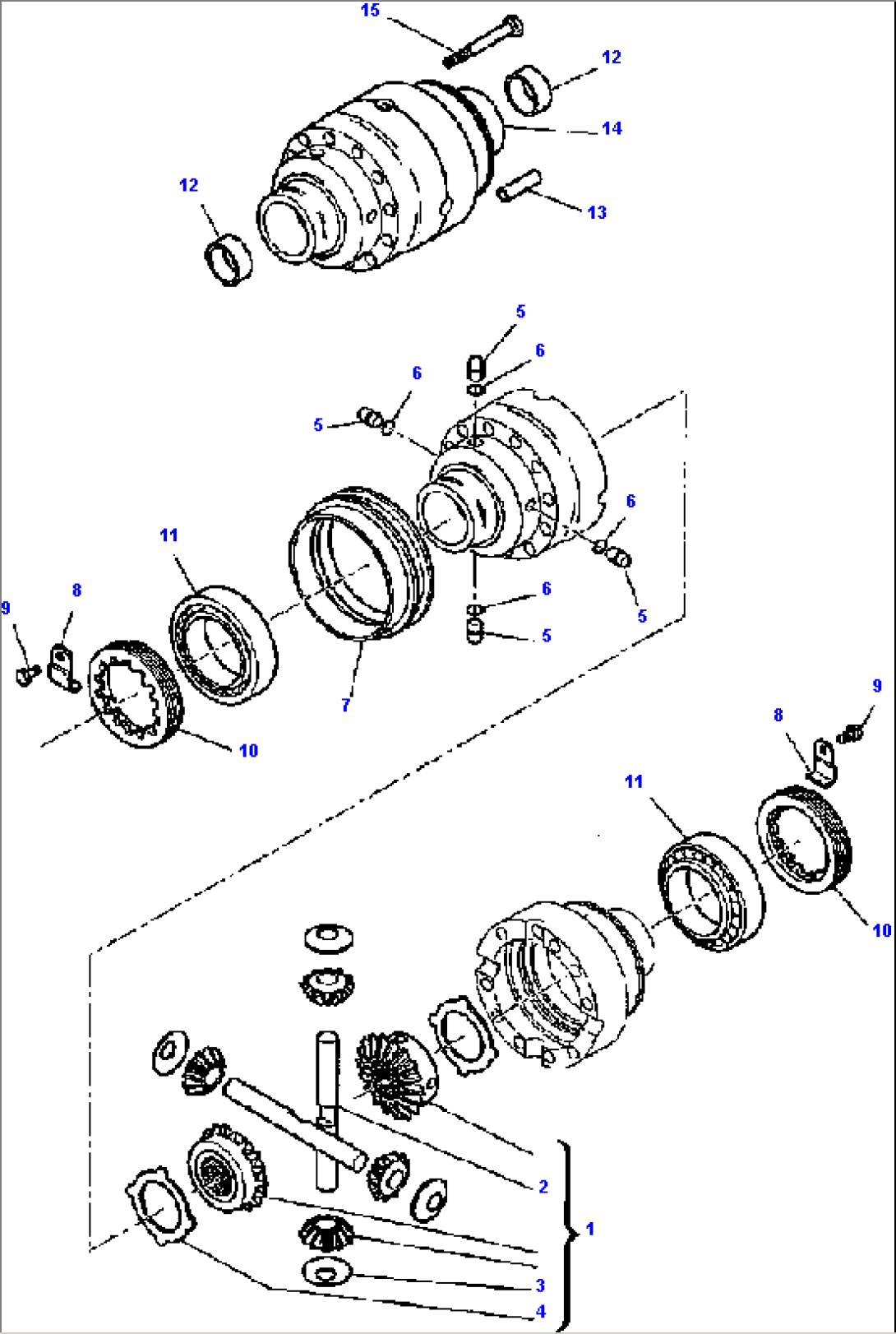

| REAR AXLE (SEE FIG. F3450-01A0) | A60001- | |||
| 1 | CA0066572 | DIFFERENTIAL KIT | A60001- | |
| 2 | CA0133035 | PIN | A60001- | |
| 3 | CA0117171 | WASHER, THRUST | A60001- | |
| 4 | CA0133036 | PLATE, DRIVE | A60001- | |
| 5 | CA0138651 | PIN | A60001- | |
| 6 | CA0028219 | O-RING | A60001- | |
| 7 | CA0131592 | SLEEVE | A60001- | |
| 8 | CA0129118 | PLATE, LOCKING | A60001- | |
| 9 | CA0128440 | BOLT | A60001- | |
| 10 | CA0125445 | NUT, RING | A60001- | |
| 11 | CA0027367 | BEARING | A60001- | |
| 12 | CA0131747 | BUSHING | A60001- | |
| 13 | CA0117569 | PIN | A60001- | |
| 14 | CA0138654 | HOUSING, DIFFERENTIAL | A60001- | |
| 15 | CA0125551 | BOLT | A60001- |
