| Item | Part No. | Part Name | Qty | Serial No. |

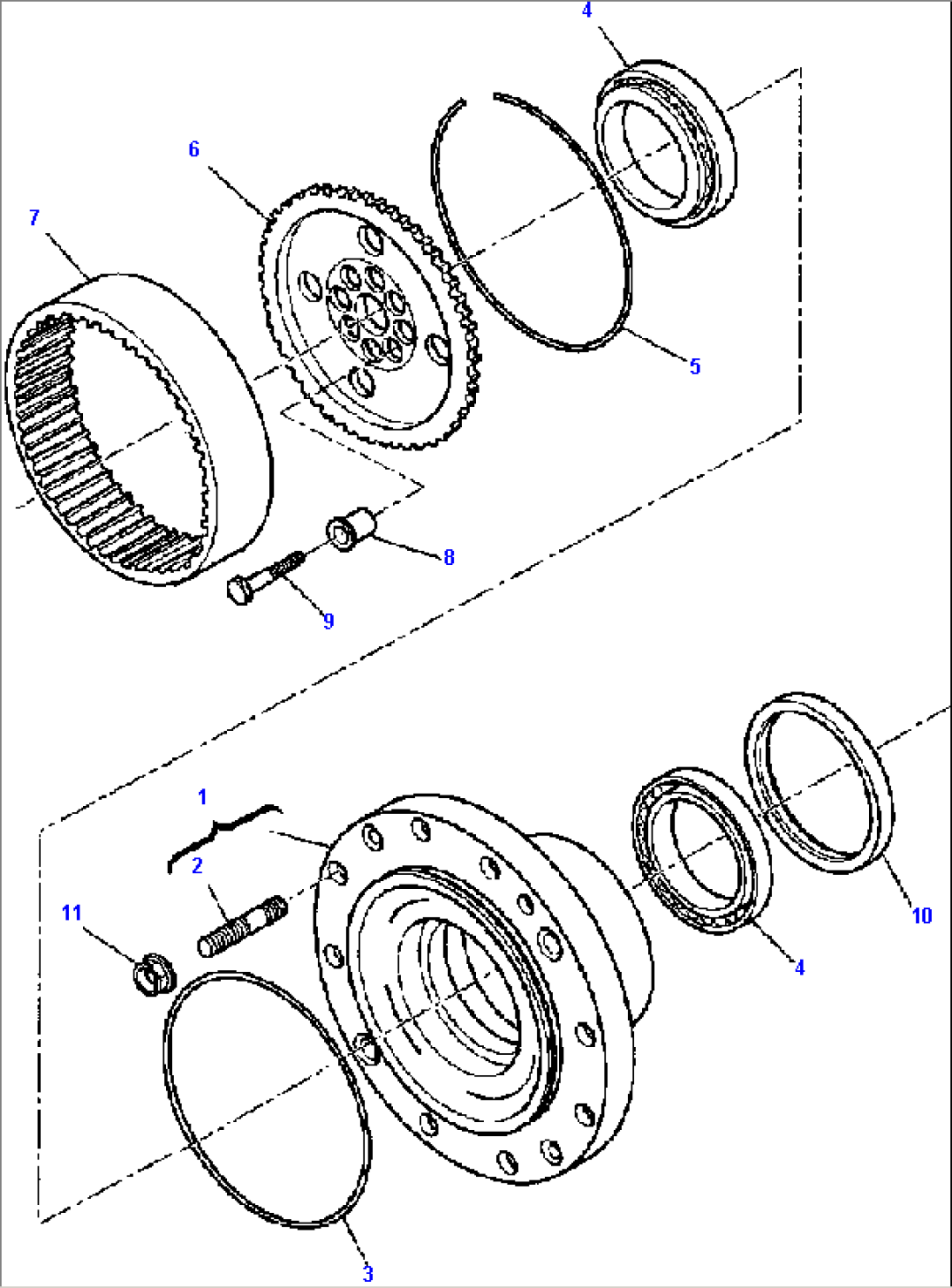

| REAR AXLE (SEE FIG. F3450-01A0) | A60001- | |||
| 1 | CA0066261 | WHEEL HUB KIT | A60001- | |
| 2 | CA0119907 | STUD | A60001- | |
| 3 | CA0028579 | O-RING | A60001- | |
| 4 | CA0118370 | BEARING | A60001- | |
| 5 | CA0125233 | RING, LOCK | A60001- | |
| 6 | CA0139633 | CARRIER, WHEEL | A60001- | |
| 7 | CA0139738 | GEAR, CROWN | A60001- | |
| 8 | CA0125190 | BUSHING, CENTERING | A60001- | |
| 9 | CA0119906 | BOLT | A60001- | |
| 10 | CA0047705 | RING, SEAL | A60001- | |
| 11 | CA0022381 | NUT | A60001- |
