| Item | Part No. | Part Name | Qty | Serial No. |

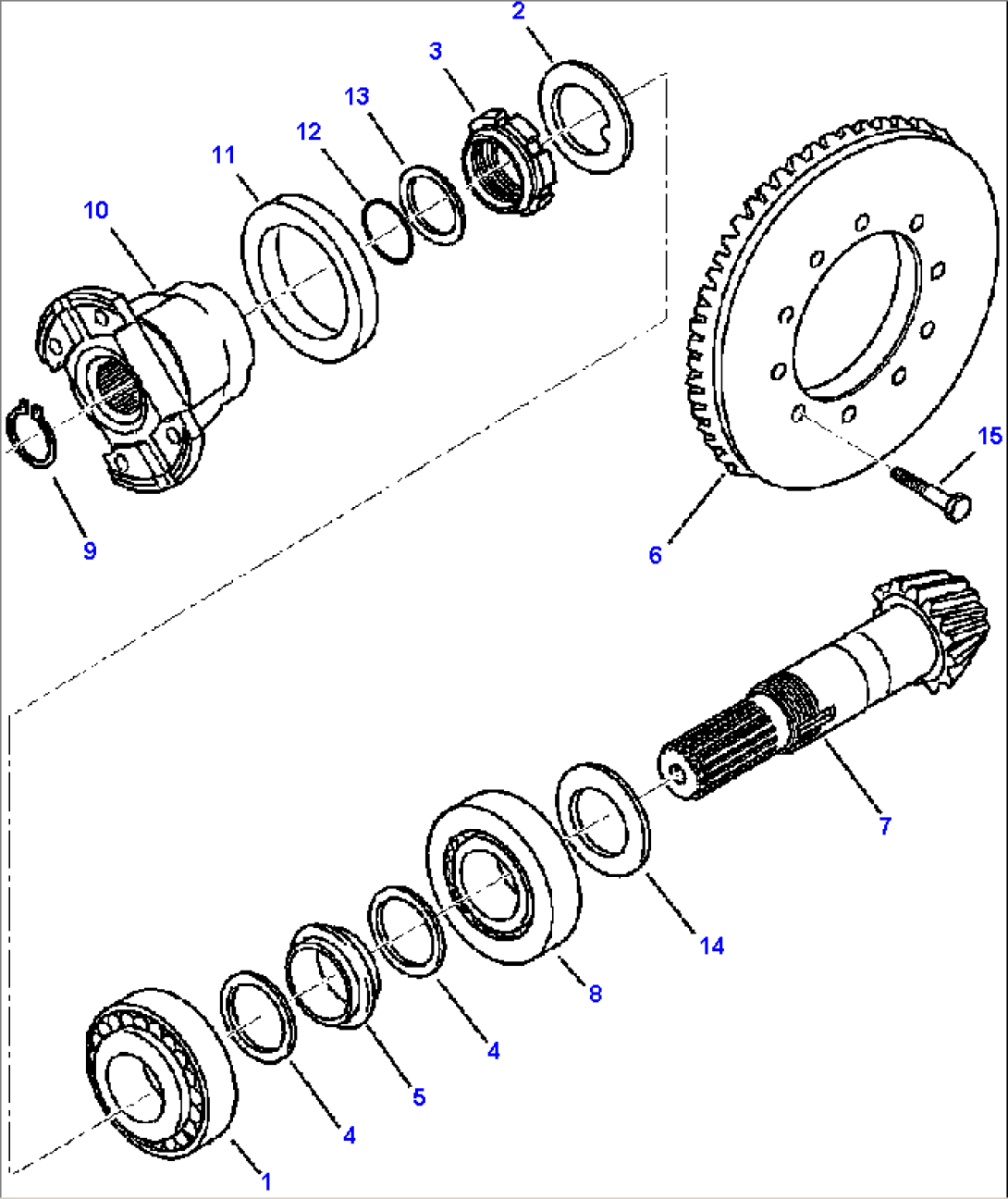

| REAR AXLE (SEE FIG. F3500-01A0) | A70010-- | |||
| 1 | CA0027350 | BEARING | A70010-- | |
| CA0066941 | RING AND PINION GEAR SET | A70010-- | ||
| 2 | CA0113717 | WASHER, LOCK | A70010-- | |
| 3 | CA0115054 | NUT, RING | A70010-- | |
| 4 | CA0125829 | WASHER | A70010-- | |
| 5 | CA0138692 | SPACER, BEARING | A70010-- | |
| 6 | (NSS) | BEVEL GEAR | A70010-- | |
| 7 | (NSS) | PINION GEAR | A70010-- | |
| 8 | CA0027351 | BEARING | A70010-- | |
| 9 | CA0024789 | RING, SNAP | A70010-- | |
| 10 | CA0144332 | FLANGE | A70010-- | |
| 11 | CA0119990 | SEAL | A70010-- | |
| 12 | CA0028532 | O-RING | A70010-- | |
| 13 | CA0123402 | WASHER | A70010-- | |
| 14 | CA0134186 | SHIM 2.50 MM | A70010-- | |
| CA0134187 | SHIM 2.60 MM | A70010-- | ||
| CA0134188 | SHIM 2.70 MM | A70010-- | ||
| CA0134189 | SHIM 2.80 MM | A70010-- | ||
| CA0134190 | SHIM 2.90 MM | A70010-- | ||
| CA0134191 | SHIM 3.00 MM | A70010-- | ||
| CA0134192 | SHIM 3.10 MM | A70010-- | ||
| CA0134193 | SHIM 3.20 MM | A70010-- | ||
| CA0134194 | SHIM 3.30 MM | A70010-- | ||
| CA0134195 | SHIM 3.40 MM | A70010-- | ||
| 15 | RING GEAR BOLT (SEE FIG. F3500-01A3) | A70010-- |
