| Item | Part No. | Part Name | Qty | Serial No. |

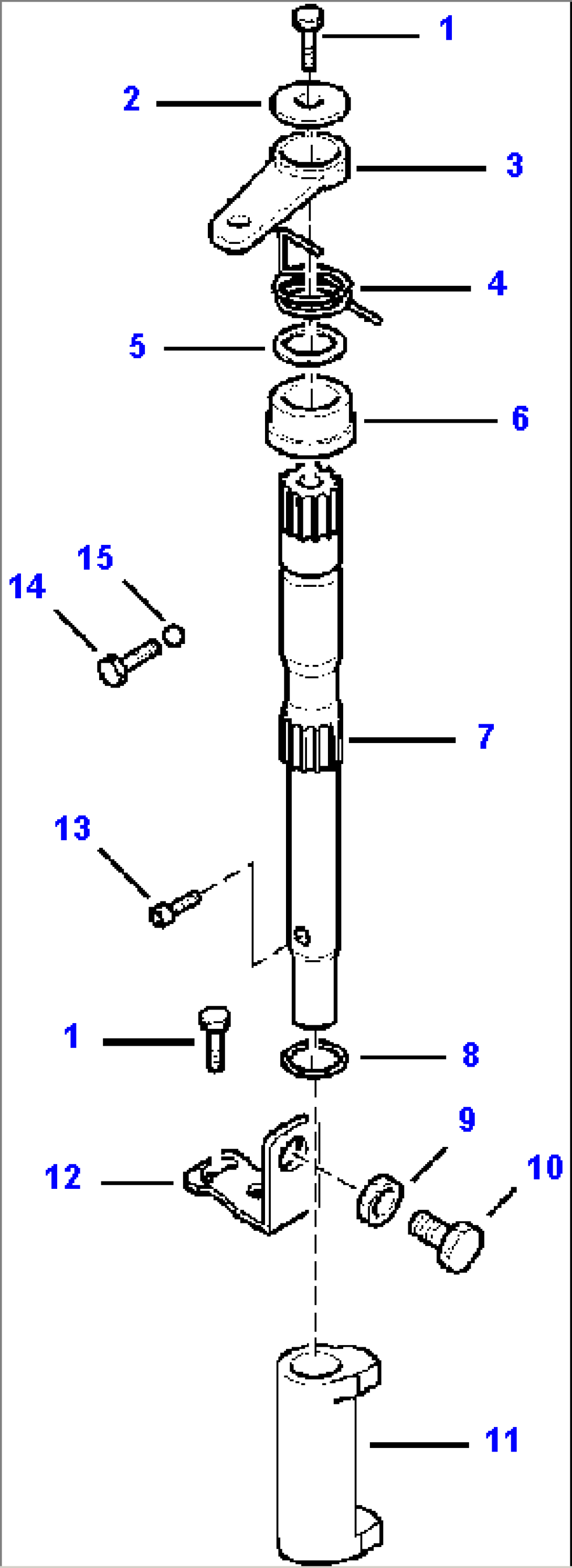

| REAR AXLE (SEE FIG. F3500-01A0) | A90002-- | |||
| 1 | CA0127920 | BOLT | A90002-- | |
| 2 | CA0132622 | WASHER | A90002-- | |
| 3 | CA0136122 | BRAKE CONTROL LEVER | A90002-- | |
| 4 | CA0136680 | SPRING RH | A90002-- | |
| 5 | CA0133681 | SPRING LH | A90002-- | |
| 6 | CA0137861 | BUSHING | A90002-- | |
| 7 | CA0137860 | SPACER | A90002-- | |
| CA0138815 | BRAKE CONTROL SHAFT | A90002-- | ||
| 8 | CA0032990 | O-RING | A90002-- | |
| 9 | CA0138337 | NUT | A90002-- | |
| 10 | CA0138338 | LOCK LEVER BOLT | A90002-- | |
| 11 | CA0132689 | CAM | A90002-- | |
| 12 | CA0137858 | LOCK LEVER BRACKET | A90002-- | |
| 13 | CA0137864 | BOLT | A90002-- | |
| 14 | CA0138442 | BOLT | A90002-- | |
| 15 | CA0028349 | BALL | A90002-- | |
