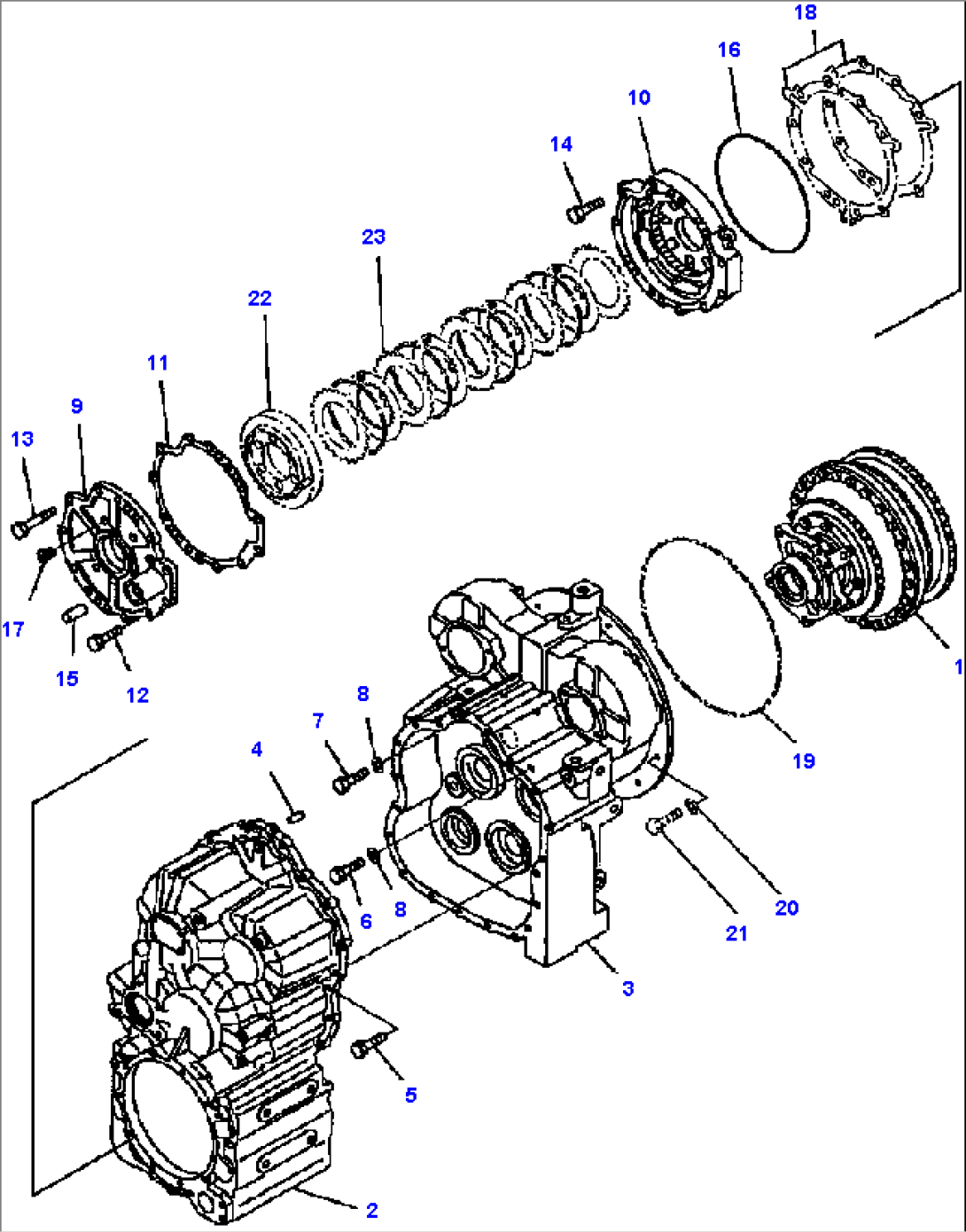

| Item | Part No. | Part Name | Qty | Serial No. |
| 714-11-10042 | TRANSMISSION ASSEMBLY | A81001-UP- | ||
| 1 | TORQUE CONVERTER ASSEMBLY (SEE FIG. F4350-67A0) | A81001-UP- | ||
| 2 | 714-11-11211 | CASE, FRONT | A81001-UP- | |
| 3 | 714-11-11121 | CASE, TORQUE CONVERTER | A81001-UP- | |
| 4 | 04020-01228 | PIN, DOWEL | A81001-UP- | |
| 5 | 01010-61240 | BOLT | A81001-UP- | |
| 6 | 01010-31280 | BOLT | A81001-UP- | |
| 7 | 01010-31235 | BOLT | A81001-UP- | |
| 8 | 01643-31232 | WASHER | A81001-UP- | |
| 9 | 714-11-18311 | HOUSING | A81001-UP- | |
| 10 | 714-11-18321 | RETAINER | A81001-UP- | |
| 11 | 714-11-18691 | GASKET | A81001-UP- | |
| 12 | 01010-31235 | BOLT | A81001-UP- | |
| 13 | 01010-31275 | BOLT | A81001-UP- | |
| 14 | 01010-31235 | BOLT | A81001-UP- | |
| 15 | 04020-01228 | PIN, DOWEL | A81001-UP- | |
| 16 | 07000-15260 | O-RING | A81001-UP- | |
| 17 | 07043-70211 | PLUG | A81001-UP- | |
| 18 | SHIM (SEE FIG. F4350-56A0) | A81001-UP- | ||
| 19 | O-RING (SEE FIG. F4300-01A0) | A81001-UP- | ||
| 20 | WASHER (SEE FIG. F4300-01A0) | A81001-UP- | ||
| 21 | BOLT (SEE FIG. F4300-01A0) | A81001-UP- | ||
| 22 | PISTON WITH PIN (SEE FIG. F4350-57A0) | A81001-UP- | ||
| 23 | PLATE (SEE FIG. F4350-57A0) | A81001-UP- | ||
