| Item | Part No. | Part Name | Qty | Serial No. |
| TRANSMISSION ASSEMBLY(SEE FIG. F4350-51A0) | A80001-A80135- | |||
| OR | ||||
| TRANSMISSION ASSEMBLY(SEE FIG. F4350-51A0) | A80136-UP- | |||

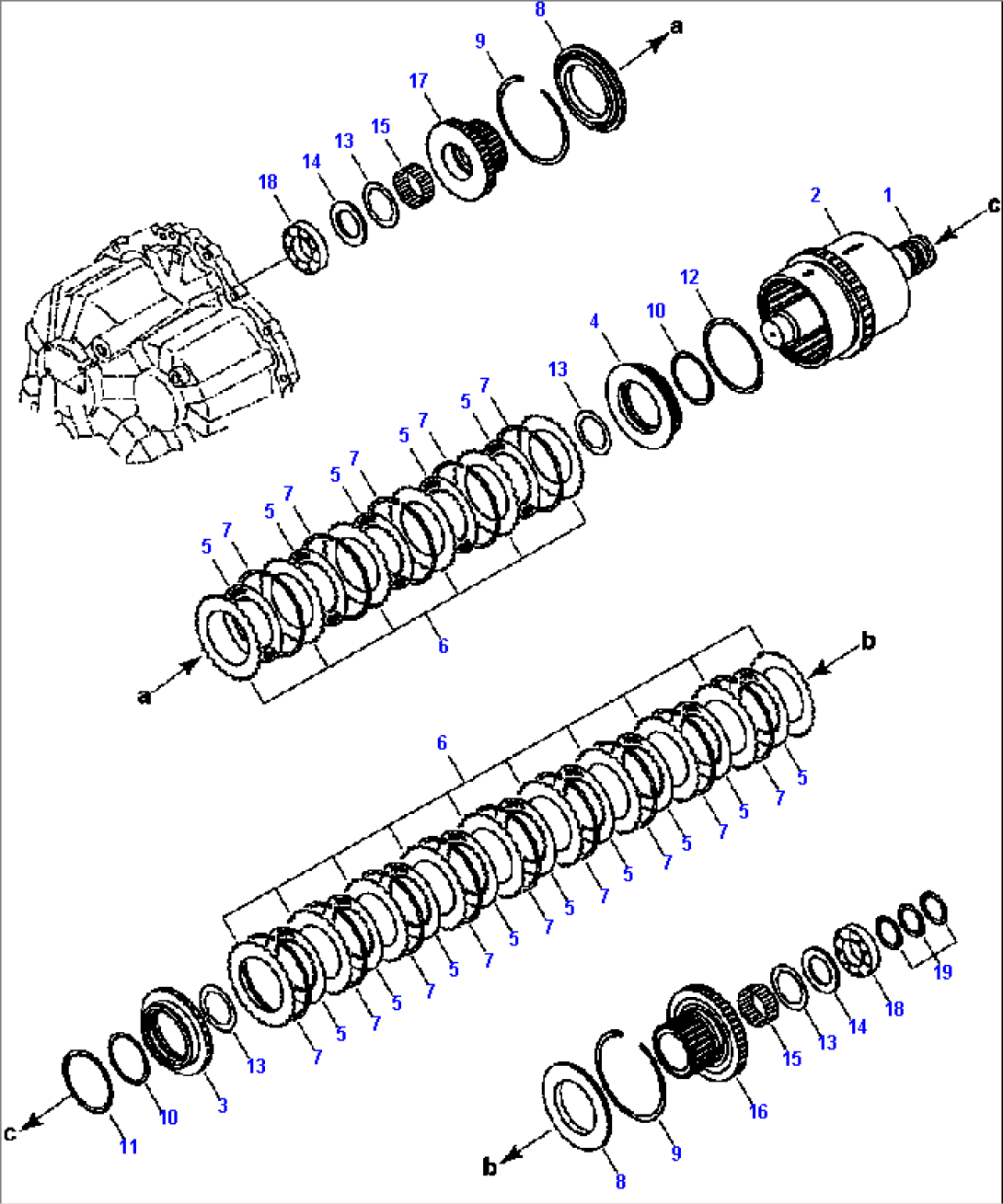

| 714-11-12010 | CLUTCH ASSEMBLY, REVERSE AND 1ST | A80001-UP- | ||
| 714-11-12110 | SHAFT ASSEMBLY | A80001-UP- | ||
| 1 | (NSS) | SHAFT | A80001-UP- | |
| 2 | (NSS) | HOUSING | A80001-UP- | |
| 3 | 714-11-12650 | PISTON, REVERSE | A80001-UP- | |
| 4 | 714-11-12660 | PISTON, 1ST | A80001-UP- | |
| 5 | 714-08-19710 | DISC, FRICTION | A80001-UP- | |
| 6 | 714-08-19730 | PLATE, SEPARATOR | A80001-UP- | |
| 7 | 714-08-12911 | SPRING, WAVE | A80001-UP- | |
| 8 | 714-08-12610 | PLATE, END | A80001-UP- | |
| 9 | 714-08-19510 | RING, SNAP | A80001-UP- | |
| 10 | 714-08-19210 | RING, SEAL | A80001-UP- | |
| 11 | 714-11-19240 | RING, SEAL | A80001-UP- | |
| 12 | 714-11-19230 | RING, SEAL | A80001-UP- | |
| 13 | 714-11-19510 | WASHER, THRUST | A80001-UP- | |
| 14 | 714-11-12710 | SPACER | A80001-UP- | |
| 15 | 419-15-12270 | BEARING, NEEDLE | A80001-UP- | |
| 16 | 714-11-12410 | GEAR, REVERSE - 45 TEETH | A80001-UP- | |
| 17 | 714-11-12420 | GEAR, 1ST - 29 TEETH | A80001-UP- | |
| 18 | 06040-06210 | BEARING | A80001-UP- | |
| 19 | 419-15-12122 | RING, SEAL | A80001-UP- |
