| Item | Part No. | Part Name | Qty | Serial No. |

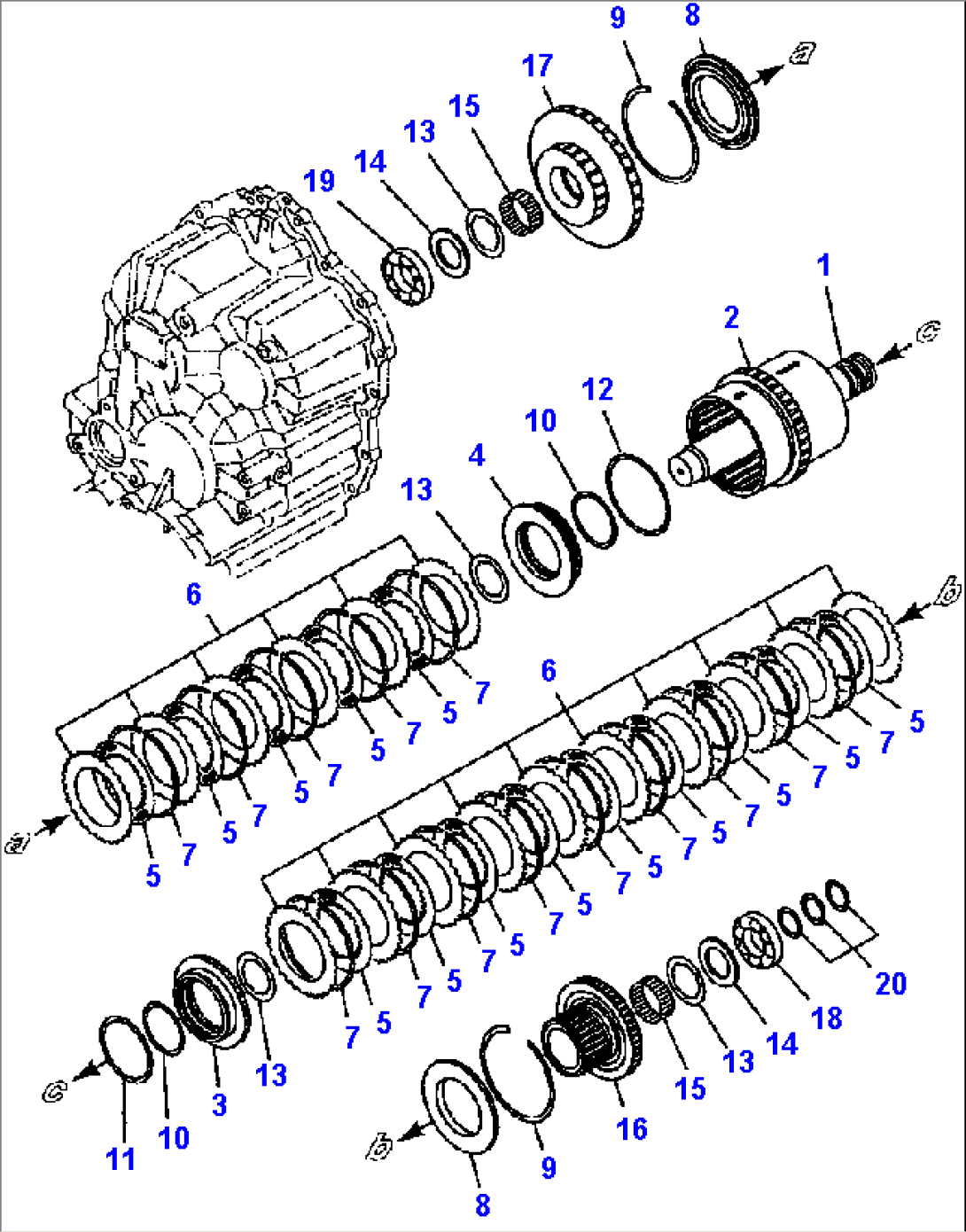

| TRANSMISSION ASSEMBLY(SEE FIG. F4350-51A0) | A81001-UP- | |||
| 714-11-12020 | CLUTCH ASSEMBLY, FORWARD AND 2ND | A81001-UP- | ||
| 714-11-12141 | SHAFT ASSEMBLY | A81001-UP- | ||
| 1 | (NSS) | SHAFT | A81001-UP- | |
| 2 | (NSS) | HOUSING | A81001-UP- | |
| 3 | 714-11-12650 | PISTON, FORWARD | A81001-UP- | |
| 4 | 714-11-12660 | PISTON, 2ND | A81001-UP- | |
| 5 | 714-08-19710 | DISC, FRICTION | A81001-UP- | |
| 6 | 714-08-19730 | PLATE, SEPARATOR | A81001-UP- | |
| 7 | 714-08-12910 | SPRING, WAVE | A81001-UP- | |
| 8 | 714-08-12610 | PLATE, END | A81001-UP- | |
| 9 | 714-08-19510 | RING, SNAP | A81001-UP- | |
| 10 | 714-08-19210 | RING, SEAL | A81001-UP- | |
| 11 | 714-11-19240 | RING, SEAL | A81001-UP- | |
| 12 | 714-11-19230 | RING, SEAL | A81001-UP- | |
| 13 | 714-11-19510 | WASHER, THRUST | A81001-UP- | |
| 14 | 714-11-12710 | SPACER | A81001-UP- | |
| 15 | 419-15-12270 | BEARING, NEEDLE | A81001-UP- | |
| 16 | 714-11-12430 | GEAR, FORWARD | A81001-UP- | |
| 17 | 714-11-12440 | GEAR, 2ND | A81001-UP- | |
| 18 | 06040-06210 | BEARING | A81001-UP- | |
| 19 | 06040-06310 | BEARING | A81001-UP- | |
| 20 | 419-15-12122 | RING, SEAL | A81001-UP- |
