| Item | Part No. | Part Name | Qty | Serial No. |

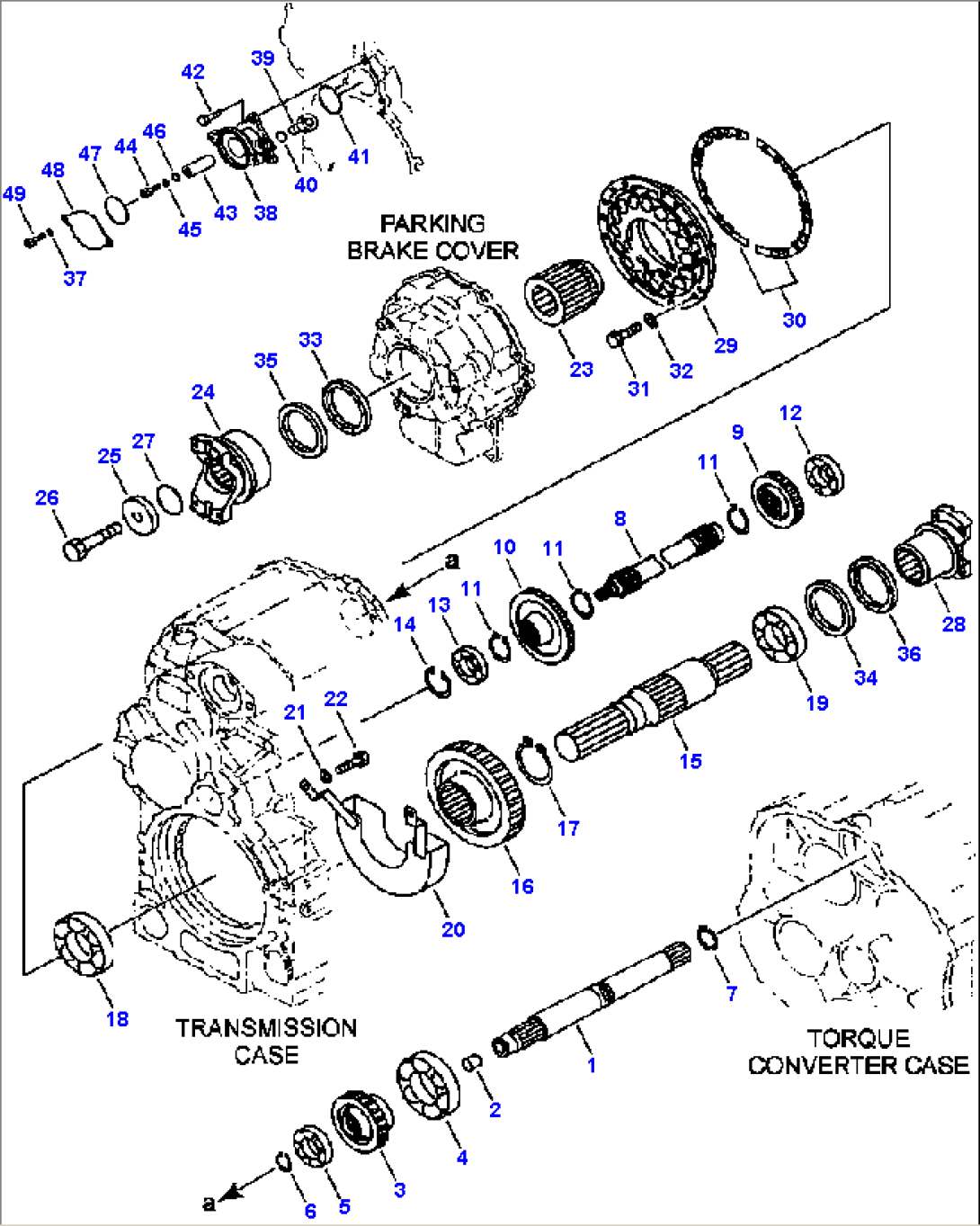

| TRANSMISSION ASSEMBLY (SEE FIG. F4350-51A0) | A31001-A31035- | |||
| 714-07-12010 | SHAFT ASSEMBLY, INPUT | A31001-A31035- | ||
| 1 | 714-07-12111 | SHAFT | A31001-A31035- | |
| 2 | 714-07-12131 | BUSHING | A31001-A31035- | |
| 3 | 714-07-12120 | GEAR, INPUT - 30 TEETH | A31001-A31035- | |
| 4 | 06040-06218 | BEARING | A31001-A31035- | |
| 5 | 06040-06309 | BEARING | A31001-A31035- | |
| 6 | 04064-04518 | RING, SNAP | A31001-A31035- | |
| 7 | 714-07-12290 | RING, SEAL | A31001-A31035- | |
| 8 | 714-07-13711 | SHAFT - 4TH SPEED | A31001-A31035- | |
| 9 | 714-07-13720 | GEAR - 27 TEETH | A31001-A31035- | |
| 10 | 714-07-13730 | GEAR - 38 TEETH | A31001-A31035- | |
| 11 | 04064-05520 | RING, SNAP | A31001-A31035- | |
| 12 | 06040-06309 | BEARING | A31001-A31035- | |
| 13 | 06040-06208 | BEARING | A31001-A31035- | |
| 14 | 04065-08025 | RING, SNAP | A31001-A31035- | |
| 15 | 714-07-13811 | SHAFT, OUTPUT | A31001-A31035- | |
| 16 | 714-07-13820 | GEAR, OUTPUT - 41 TEETH | A31001-A31035- | |
| 17 | 04064-01030 | RING, SNAP | A31001-A31035- | |
| 18 | 714-07-19410 | BEARING | A31001-A31035- | |
| 19 | 06002-30215 | BEARING | A31001-A31035- | |
| 20 | 714-07-13831 | COVER, GEAR | A31001-A31035- | |
| 21 | 01643-31232 | WASHER | A31001-A31035- | |
| 22 | 01010-81225 | BOLT | A31001-A31035- | |
| 23 | 714-07-18692 | HUB, SPLINE | A31001-A31035- | |
| 24 | 714-07-14101 | COUPLING ASSEMBLY, FRONT | A31001-A31035- | |
| 714-07-14120 | DEFLECTOR | A31001-A31035- | ||
| 25 | 424-20-13520 | HOLDER | A31001-A31035- | |
| 26 | 01011-62430 | BOLT | A31001-A31035- | |
| 27 | 07000-05065 | O-RING | A31001-A31035- | |
| 28 | 714-07-14201 | COUPLING ASSEMBLY, REAR | A31001-A31035- | |
| 714-07-14221 | DEFLECTOR | A31001-A31035- | ||
| 29 | 714-07-18132 | RETAINER | A31001-A31035- | |
| 30 | 714-07-18551 | SHIM - 0.002 IN. (0.05 MM) | A31001-A31035- | |
| 714-07-18561 | SHIM - 0.020 IN. (0.50 MM) | A31001-A31035- | ||
| 714-07-18571 | SHIM - 0.008 IN. (0.20 MM) | A31001-A31035- | ||
| 31 | 01010-81235 | BOLT | A31001-A31035- | |
| 32 | 01643-31232 | WASHER | A31001-A31035- | |
| 33 | 714-07-18530 | SEAL, OIL | A31001-A31035- | |
| 34 | 714-07-18530 | SEAL, OIL | A31001-A31035- | |
| 35 | 714-07-18541 | SEAL, DUST | A31001-A31035- | |
| 36 | 714-07-18541 | SEAL, DUST | A31001-A31035- | |
| 37 | 01643-31232 | WASHER | A31001-A31035- | |
| 38 | 714-11-11340 | COVER | A31001-A31035- | |
| 39 | 07040-12414 | PLUG | A31001-A31035- | |
| 40 | 07002-12434 | O-RING | A31001-A31035- | |
| 41 | 07000-02085 | O-RING | A31001-A31035- | |
| 42 | 01010-E1230 | BOLT | A31001-A31035- | |
| 43 | 714-07-18450 | CONNECTION | A31001-A31035- | |
| 44 | 01252-30816 | BOLT | A31001-A31035- | |
| 45 | 01643-30823 | WASHER | A31001-A31035- | |
| 46 | 04065-01910 | RING, SNAP | A31001-A31035- | |
| 47 | 07000-02105 | O-RING | A31001-A31035- | |
| 48 | 417-15-14160 | COVER | A31001-A31035- | |
| 49 | 01010-81235 | BOLT | A31001-A31035- |
