| Item | Part No. | Part Name | Qty | Serial No. |

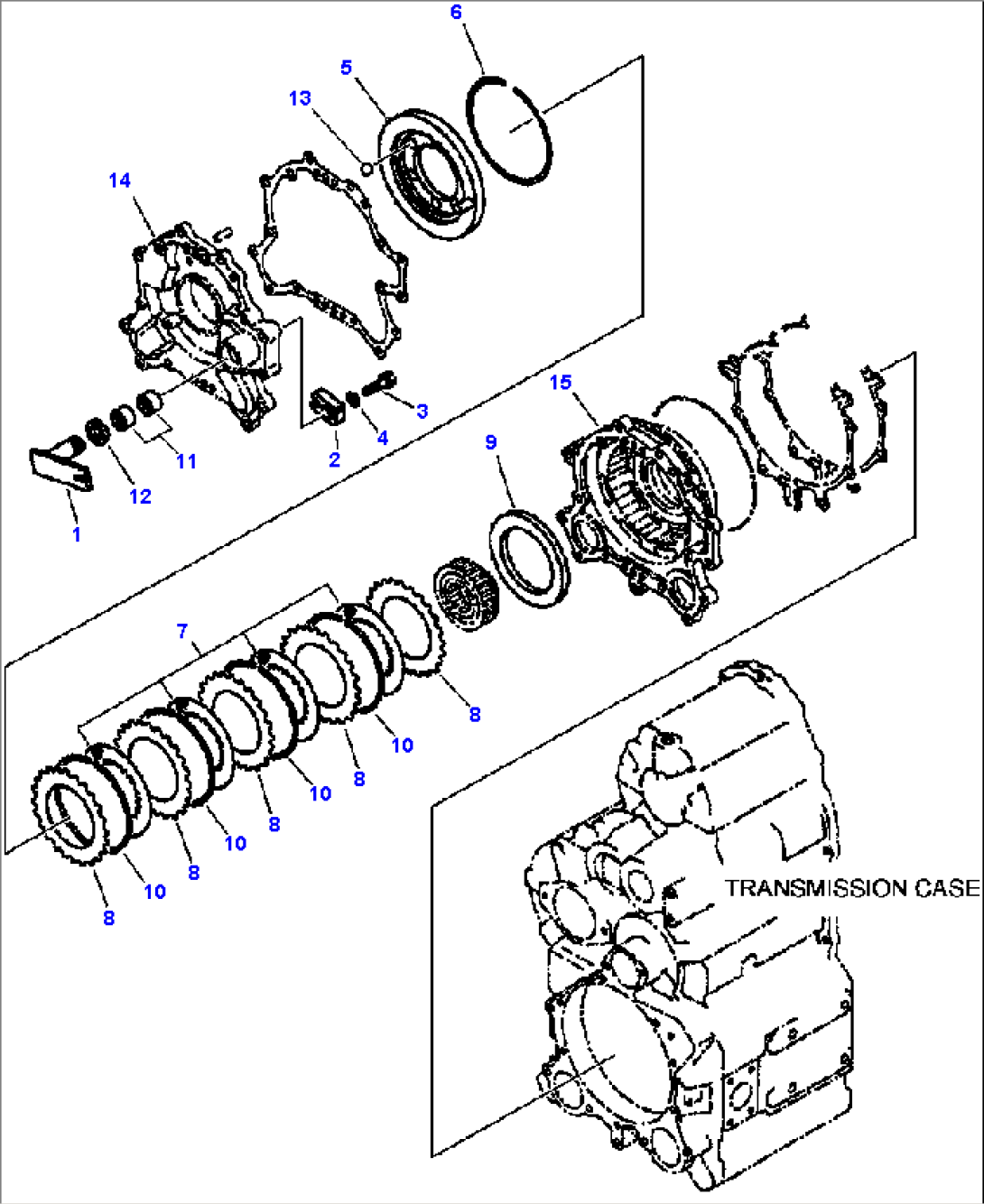

| TRANSMISSION ASSEMBLY(SEE FIG. F4350-51A0) | A70001-UP- | |||
| 1 | 714-13-18513 | LEVER | A70001-UP- | |
| 2 | 714-13-18651 | LEVER | A70001-UP- | |
| 3 | 01010-81016 | BOLT | A70001-UP- | |
| 4 | 417-43-16210 | WASHER | A70001-UP- | |
| 5 | 714-13-18521 | PISTON WITH PIN | A70001-UP- | |
| 714-13-18331 | PISTON | A70001-UP- | ||
| 714-13-18661 | PIN | A70001-UP- | ||
| 6 | 714-07-12720 | RING, SNAP | A70001-UP- | |
| 7 | 714-07-12670 | DISC | A70001-UP- | |
| 8 | 714-07-12680 | PLATE, SEPARATE | A70001-UP- | |
| 9 | 714-13-18630 | PLATE | A70001-UP- | |
| 10 | 714-07-12691 | SPRING, WAVE | A70001-UP- | |
| 11 | 06120-03020 | BEARING, NEEDLE | A70001-UP- | |
| 12 | 714-13-19810 | SEAL, OIL | A70001-UP- | |
| 13 | 714-11-18340 | BALL | A70001-UP- | |
| 14 | COVER (SEE FIG. F4350-56A0) | A70001-UP- | ||
| 15 | RETAINER (SEE FIG. F4350-56A0) | A70001-UP- |
