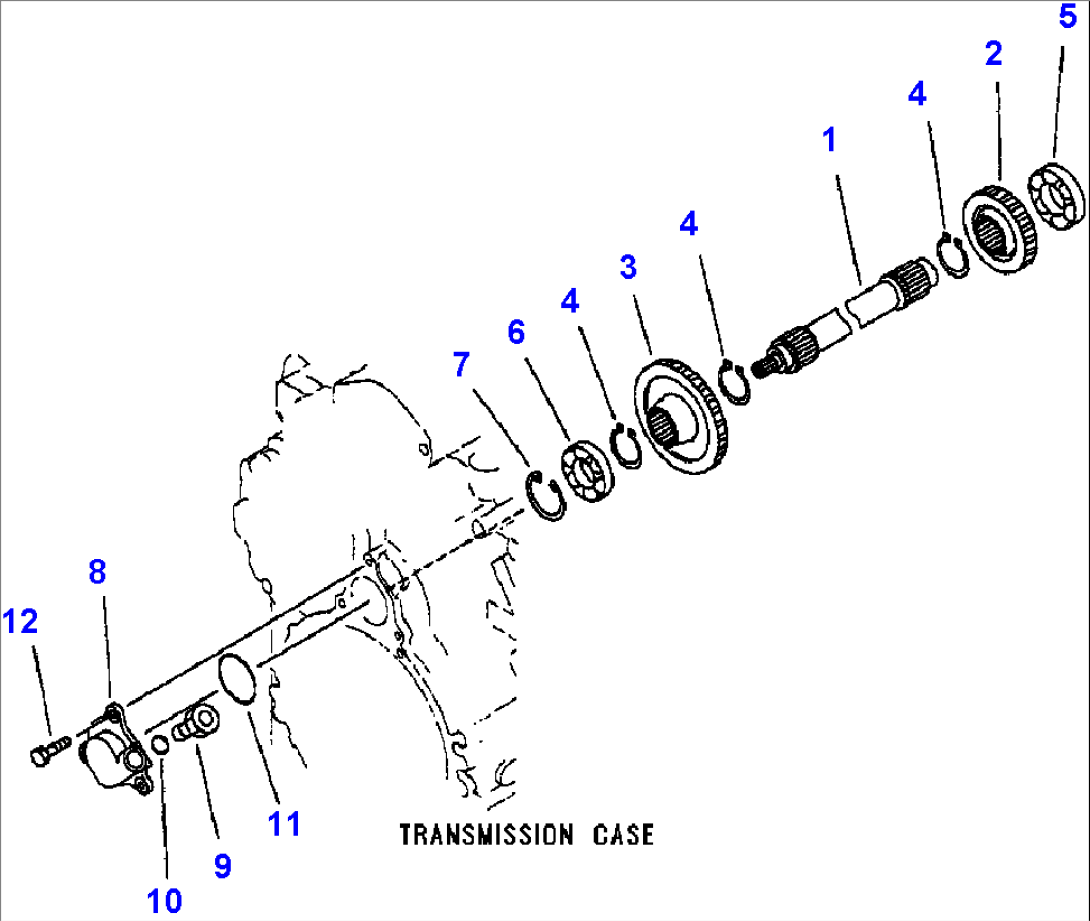

| Item | Part No. | Part Name | Qty | Serial No. |
| TRANSMISSION ASSEMBLY(SEE FIG. F4350-60A0) | A30001-UP- | |||
| 1 | (NSS) | SHAFT, 4TH | A30001-UP- | |
| 2 | (NSS) | GEAR, 27 TEETH | A30001-UP- | |
| 3 | (NSS) | GEAR, 37 TEETH | A30001-UP- | |
| 4 | 04064-05520 | RING, SNAP | A30001-UP- | |
| 5 | 06040-06309 | BEARING | A30001-UP- | |
| 6 | 06040-06208 | BEARING | A30001-UP- | |
| 7 | 04065-08025 | RING, SNAP | A30001-UP- | |
| 8 | 714-11-11350 | RETAINER | A30001-UP- | |
| 9 | 07040-12414 | PLUG | A30001-UP- | |
| 10 | 07002-12434 | O-RING, PLUG | A30001-UP- | |
| 11 | 07000-02085 | O-RING, COVER | A30001-UP- | |
| 12 | 01010-E1230 | BOLT | A30001-UP- |
