| Item | Part No. | Part Name | Qty | Serial No. |
| TRANSMISSION ASSEMBLY(SEE FIG. F4350-60A0) | A30001-UP- | |||

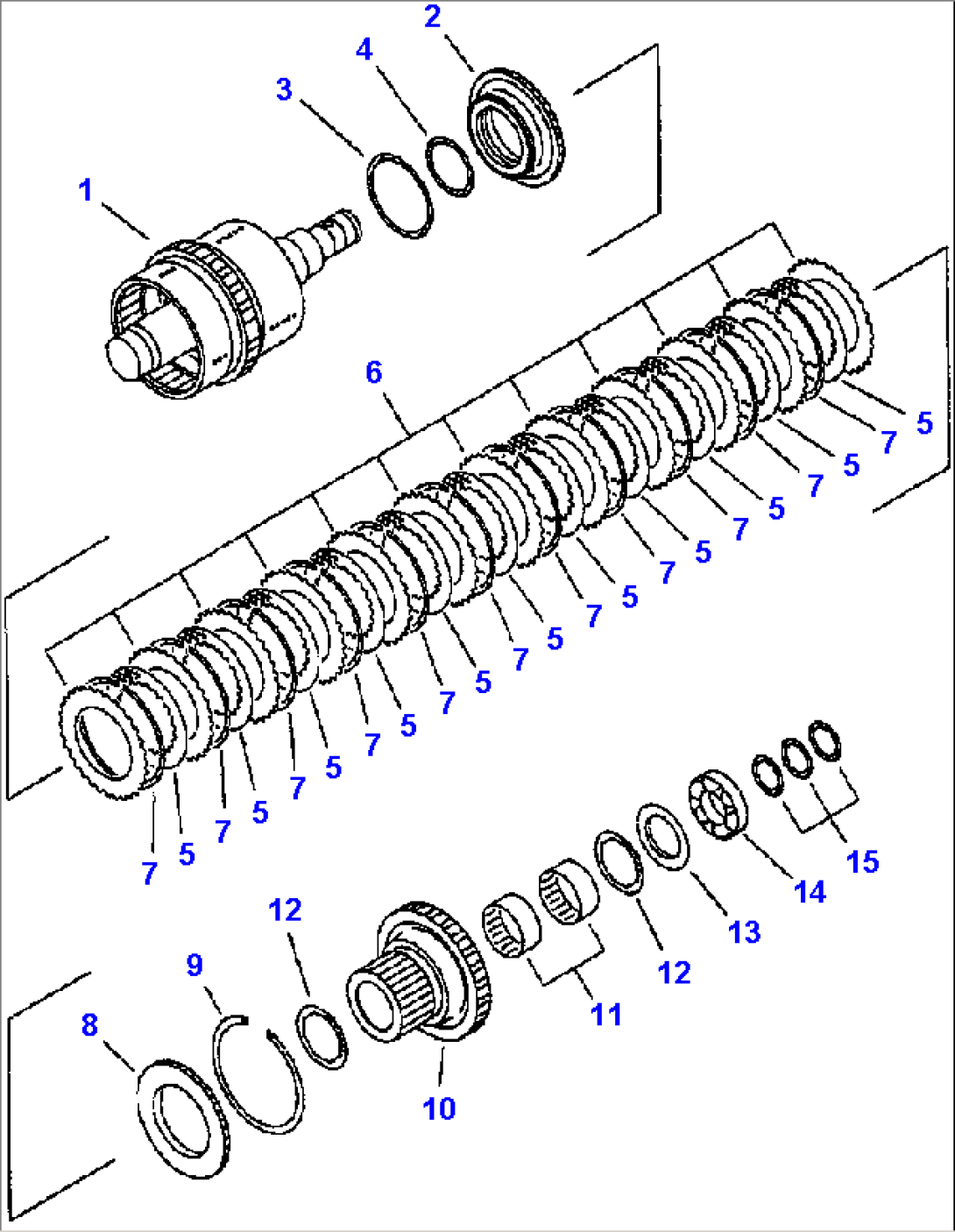

| 714-17-12010 | CLUTCH ASSEMBLY, FORWARD AND 1ST | A30001-UP- | ||
| 1 | NSS | SHAFT ASSEMBLY | A30001-UP- | |
| 2 | 714-07-12911 | PISTON, FORWARD | A30001-UP- | |
| 3 | 714-08-19220 | RING, SEAL | A30001-UP- | |
| 4 | 714-07-19320 | RING, SEAL | A30001-UP- | |
| 5 | 714-07-12670 | DISC | A30001-UP- | |
| 6 | 714-07-12680 | PLATE, SEPARATE | A30001-UP- | |
| 7 | 714-07-12690 | SPRING, WAVE | A30001-UP- | |
| 8 | 714-07-12711 | PLATE, END | A30001-UP- | |
| 9 | 714-07-12720 | RING, SNAP | A30001-UP- | |
| 10 | 714-17-12410 | GEAR, FORWARD - 49 TEETH | A30001-UP- | |
| 11 | 714-07-12280 | BEARING, NEEDLE | A30001-UP- | |
| 12 | 714-07-12220 | WASHER, THRUST | A30001-UP- | |
| 13 | 714-07-12250 | SPACER | A30001-UP- | |
| 14 | 06040-06315 | BEARING | A30001-UP- | |
| 15 | 714-07-12290 | RING, SEAL | A30001-UP- |
