| Item | Part No. | Part Name | Qty | Serial No. |
| TRANSMISSION ASSEMBLY(SEE FIG. F4350-51A0) | A70001-UP- | |||

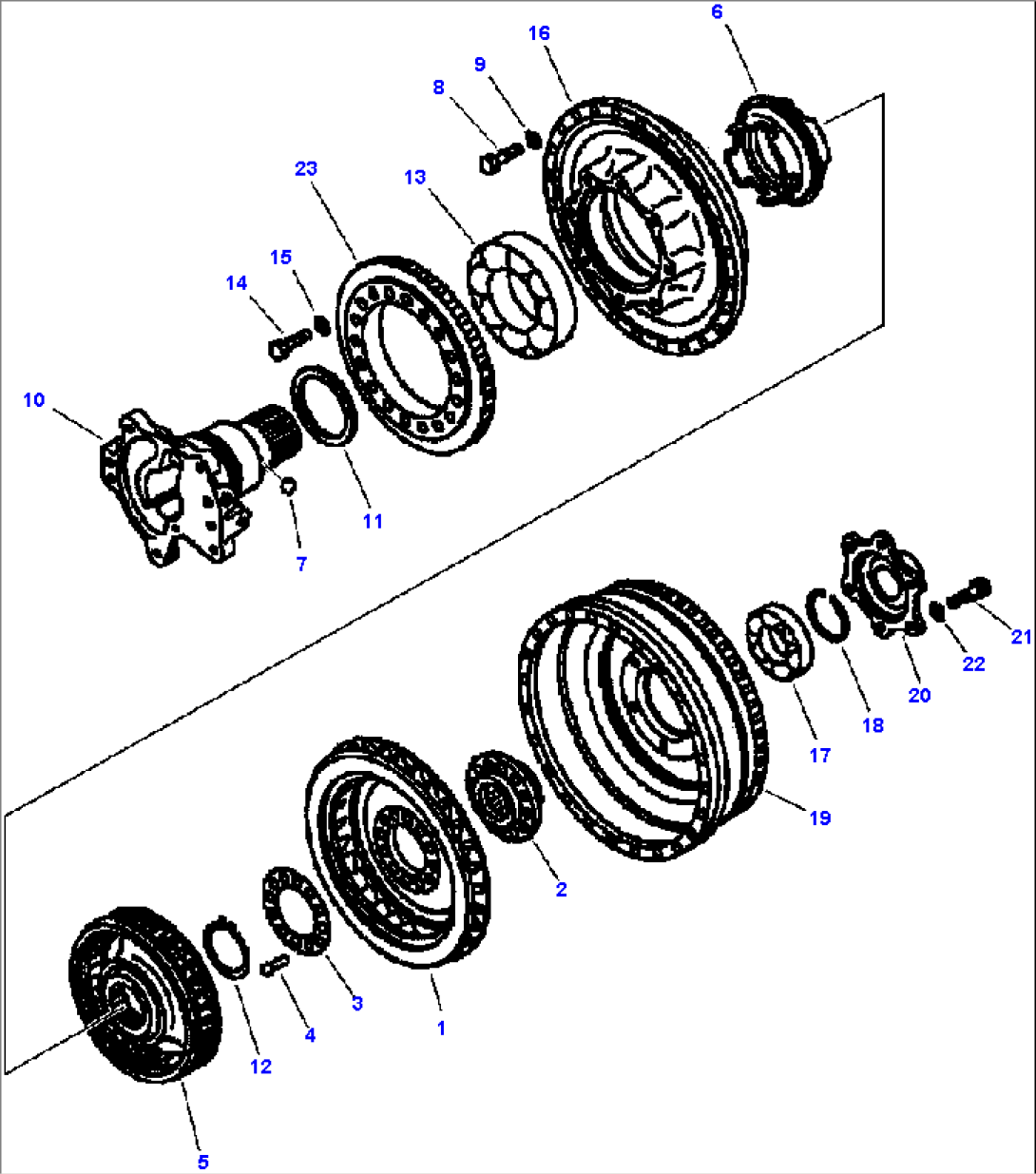

| 711-57-00300 | TORQUE CONVERTER ASSEMBLY | A70001-UP- | ||
| 711-52-11510 | TURBINE ASSEMBLY | A70001-UP- | ||
| 1 | (NSS) | TURBINE | A70001-UP- | |
| 2 | (NSS) | BOSS | A70001-UP- | |
| 3 | (NSS) | PLATE | A70001-UP- | |
| 4 | (NSS) | RIVET | A70001-UP- | |
| 5 | 711-52-12110 | STATOR | A70001-UP- | |
| 6 | 711-57-11190 | GUIDE | A70001-UP- | |
| 7 | 04260-00952 | BALL | A70001-UP- | |
| 8 | 01010-E0825 | BOLT | A70001-UP- | |
| 9 | 01643-30823 | WASHER | A70001-UP- | |
| 10 | 711-58-42521 | SHAFT | A70001-UP- | |
| 11 | 07018-31004 | RING, SEAL | A70001-UP- | |
| 12 | 04064-07025 | RING, SNAP | A70001-UP- | |
| 13 | 06040-06217 | BEARING | A70001-UP- | |
| 14 | 01010-E1055 | BOLT | A70001-UP- | |
| 15 | 01643-31032 | WASHER | A70001-UP- | |
| 16 | 711-57-11120 | PUMP | A70001-UP- | |
| 17 | 06043-06011 | BEARING | A70001-UP- | |
| 18 | 711-01-11570 | RING, SNAP | A70001-UP- | |
| 19 | 711-52-11210 | CASE | A70001-UP- | |
| 20 | 711-55-11250 | PILOT | A70001-UP- | |
| 21 | 01010-E1025 | BOLT | A70001-UP- | |
| 22 | 01643-31032 | WASHER | A70001-UP- | |
| 23 | 711-58-41141 | GEAR | A70001-UP- |
