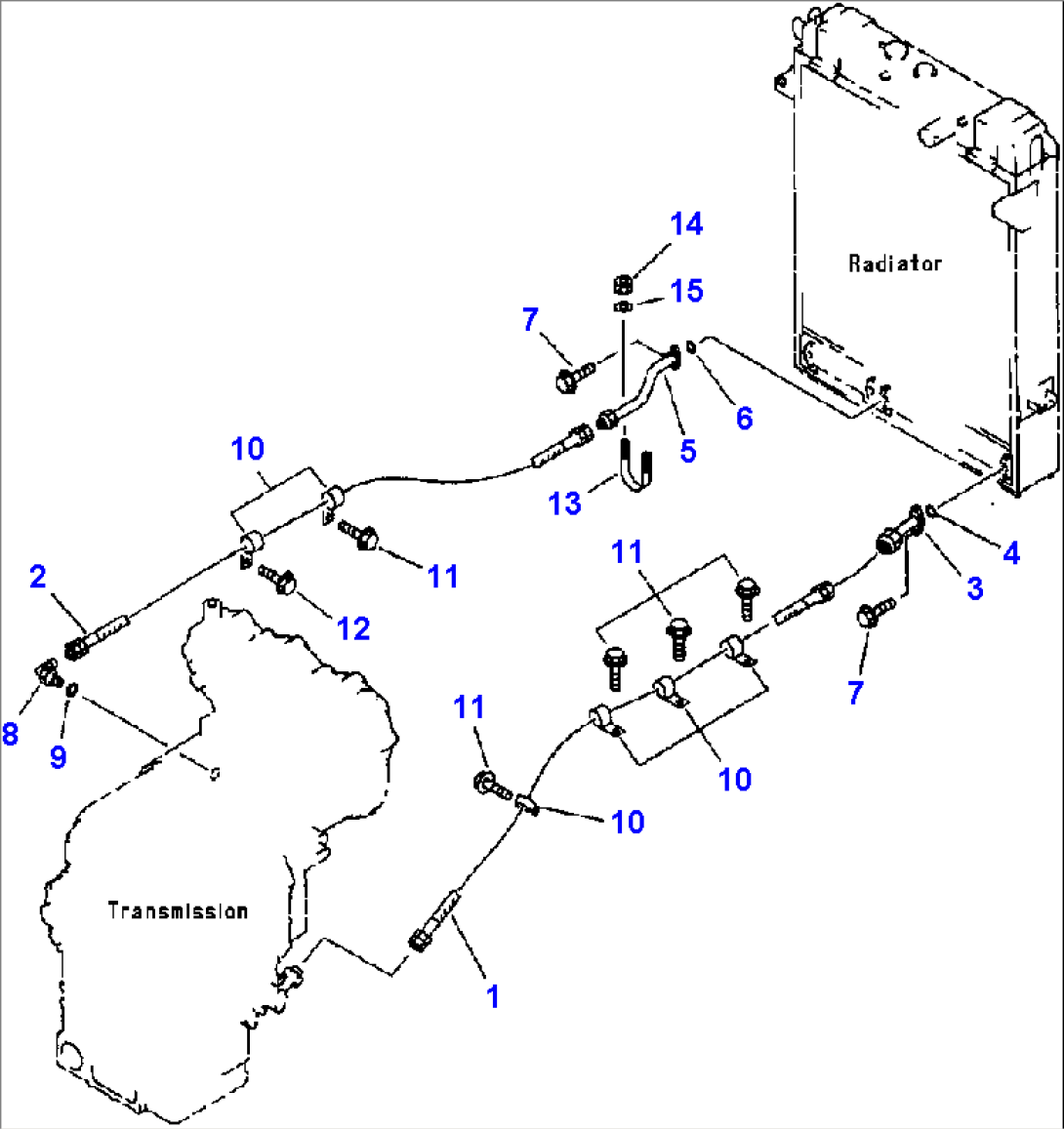

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07102-21019 | HOSE | A30001-UP- | |
| 2 | 07102-21015 | HOSE | A30001-UP- | |
| 3 | 424-16-21120 | TUBE | A30001-UP- | |
| 4 | 07000-13028 | O-RING | A30001-UP- | |
| 5 | 423-16-21110 | TUBE | A30001-UP- | |
| 6 | 07000-13028 | O-RING | A30001-UP- | |
| 7 | 01435-01025 | BOLT | A30001-UP- | |
| 8 | 07235-11034 | ELBOW | A30001-UP- | |
| 9 | 07002-13334 | O-RING | A30001-UP- | |
| 10 | 281-01-13180 | CLIP | A30001-UP- | |
| 11 | 01435-01016 | BOLT | A30001-UP- | |
| 12 | 01435-01020 | BOLT | A30001-UP- | |
| 13 | 07283-22738 | CLIP | A30001-UP- | |
| 14 | 01597-01009 | NUT | A30001-UP- | |
| 15 | 01643-31032 | WASHER | A30001-UP- |
