| Item | Part No. | Part Name | Qty | Serial No. |

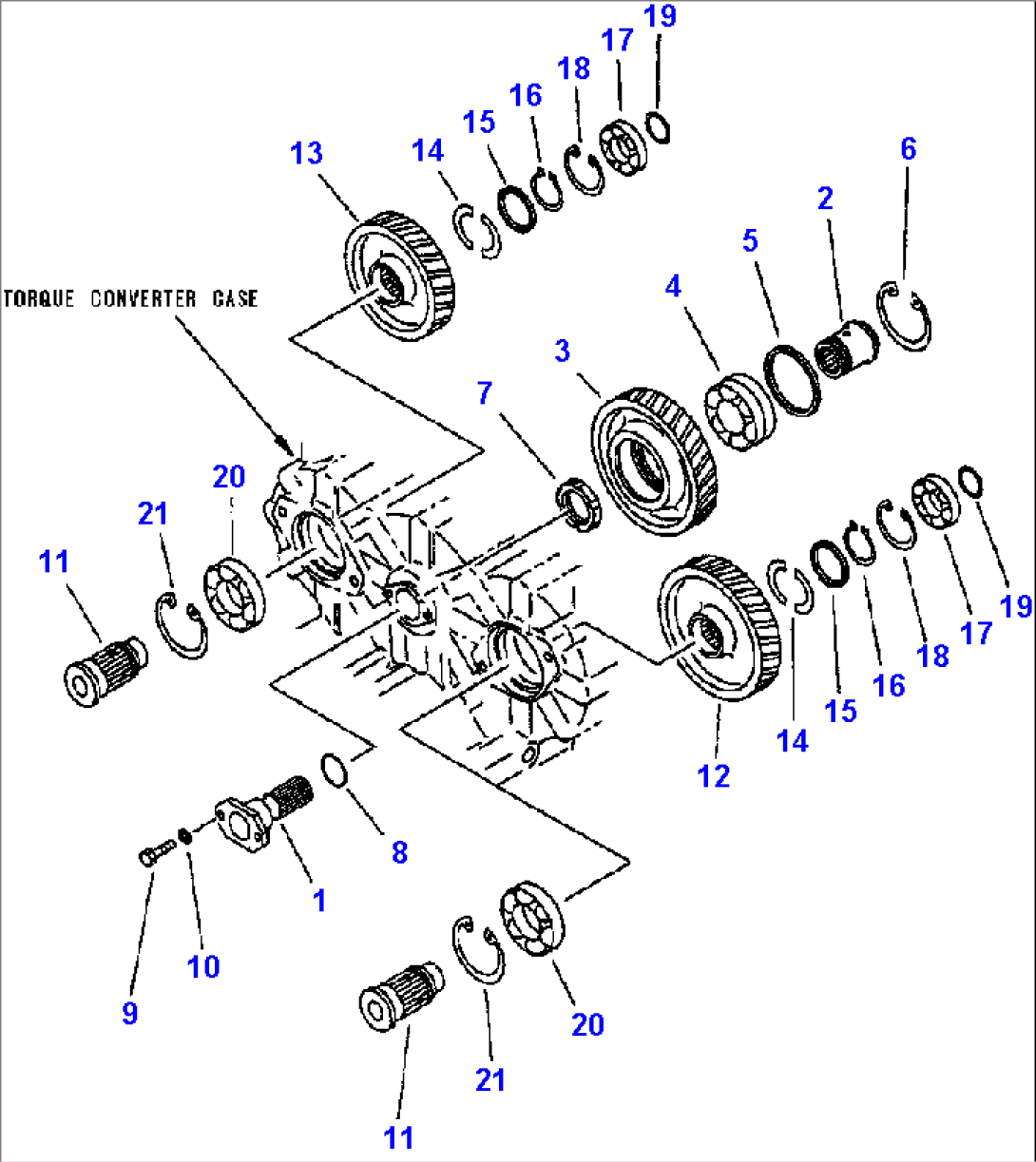

| TRANSMISSION ASSEMBLY(SEE FIG. F4350-60A0) | A30001-UP- | |||
| 1 | 714-07-14340 | SHAFT, IDLER | A30001-UP- | |
| 2 | 714-07-14330 | HUB, SPLINE | A30001-UP- | |
| 3 | 714-07-14310 | GEAR, IDLER - 76 TEETH | A30001-UP- | |
| 4 | 714-07-12330 | BEARING | A30001-UP- | |
| 5 | 714-07-14320 | SPACER | A30001-UP- | |
| 6 | 04065-01254 | RING, SNAP | A30001-UP- | |
| 7 | 01530-06214 | NUT | A30001-UP- | |
| 8 | 07000-02055 | O-RING | A30001-UP- | |
| 9 | 01010-E1235 | BOLT | A30001-UP- | |
| 10 | 01643-31232 | WASHER | A30001-UP- | |
| 11 | 714-07-14410 | SHAFT | A30001-UP- | |
| 12 | 714-07-14420 | GEAR, 74 TEETH | A30001-UP- | |
| 13 | 714-07-14430 | GEAR, 65 TEETH | A30001-UP- | |
| 14 | 714-07-14461 | SPACER | A30001-UP- | |
| 15 | 714-07-14450 | RING | A30001-UP- | |
| 16 | 04064-06525 | RING, SNAP | A30001-UP- | |
| 17 | 714-07-12340 | BEARING | A30001-UP- | |
| 18 | 04065-09030 | RING, SNAP | A30001-UP- | |
| 19 | 714-07-13210 | RING, SNAP | A30001-UP- | |
| 20 | 06040-06213 | BEARING | A30001-UP- | |
| 21 | 04065-01204 | RING, SNAP | A30001-UP- |
