| Item | Part No. | Part Name | Qty | Serial No. |

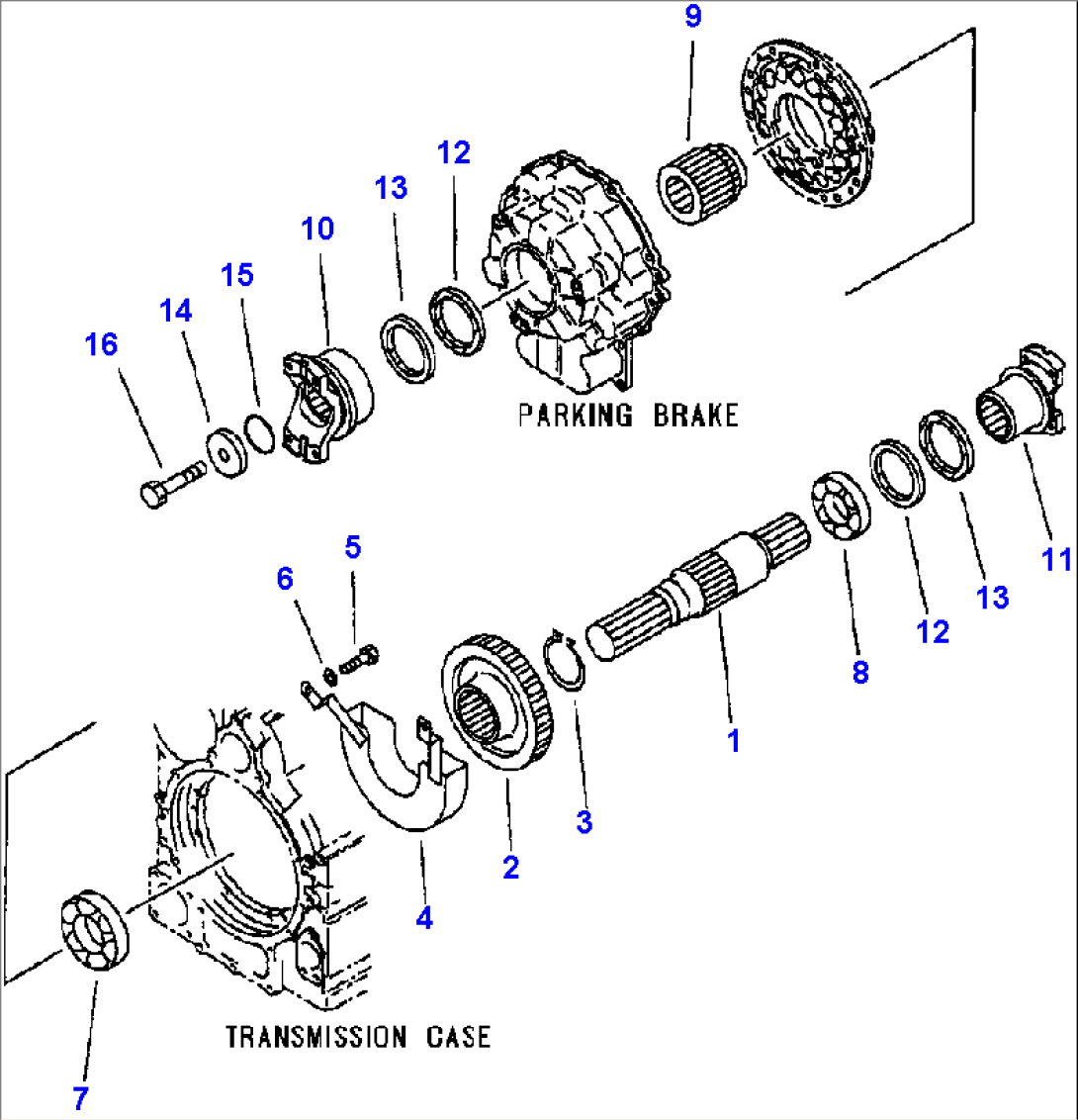

| TRANSMISSION ASSEMBLY(SEE FIG. F4350-60A0) | A30001-UP- | |||
| 1 | 714-07-13811 | SHAFT, OUTPUT | A30001-UP- | |
| 2 | 714-17-14620 | GEAR, 43 TEETH - OUTPUT | A30001-UP- | |
| 3 | 04064-01030 | RING, SNAP | A30001-UP- | |
| 4 | 714-07-13831 | COVER, GEAR | A30001-UP- | |
| 5 | 01010-E1225 | BOLT | A30001-UP- | |
| 6 | 01643-31232 | WASHER | A30001-UP- | |
| 7 | 714-07-19410 | BEARING | A30001-UP- | |
| 8 | 06002-30215 | BEARING | A30001-UP- | |
| 9 | 714-07-18692 | HUB | A30001-UP- | |
| 10 | 714-07-14101 | COUPLING ASSEMBLY - FRONT | A30001-UP- | |
| 714-07-14120 | DEFLECTOR | A30001-UP- | ||
| 11 | 714-07-14201 | COUPLING ASSEMBLY - REAR | A30001-UP- | |
| 714-07-14221 | DEFLECTOR | A30001-UP- | ||
| 12 | 704-07-18530 | SEAL, OIL | A30001-UP- | |
| 13 | 714-07-18541 | SEAL, DUST | A30001-UP- | |
| 14 | 424-20-13520 | HOLDER | A30001-UP- | |
| 15 | 07000-05065 | O-RING | A30001-UP- | |
| 16 | 01011-62430 | BOLT | A30001-UP- |
