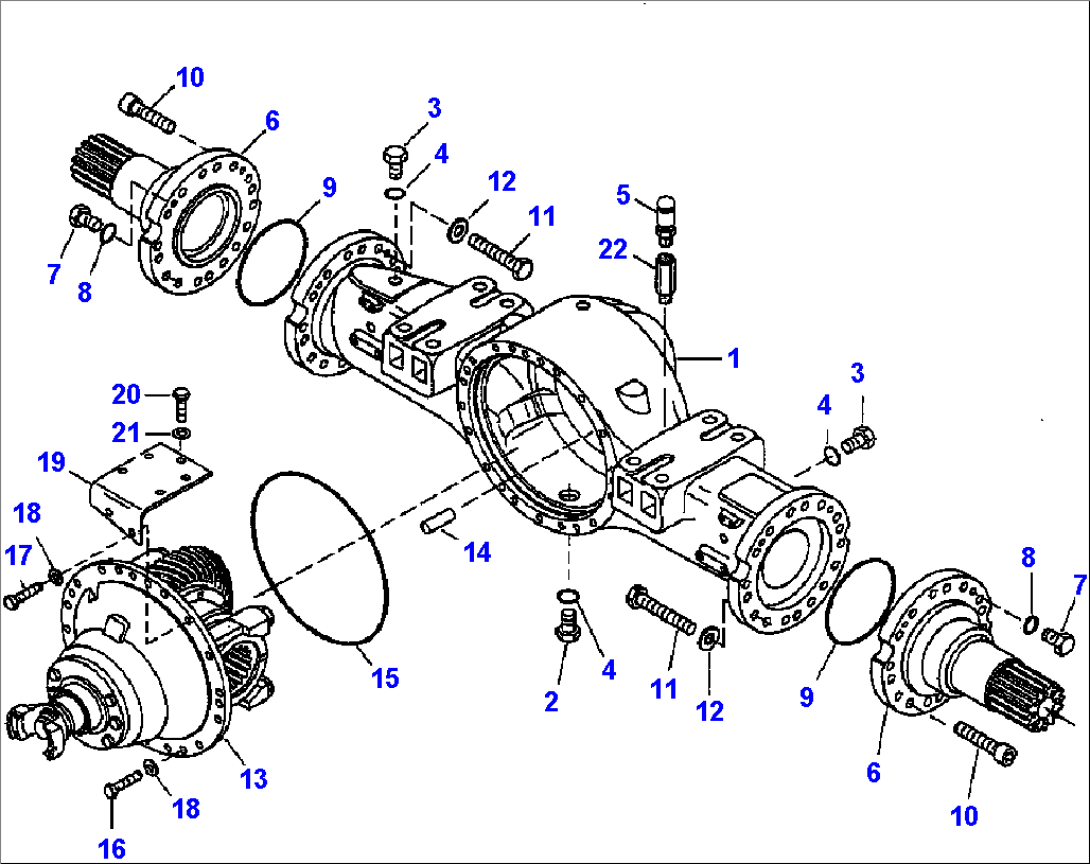

| Item | Part No. | Part Name | Qty | Serial No. |
| 424-22-20001 | AXLE ASSEMBLY, FRONT | A30001-UP- | ||
| 1 | 424-22-23120 | HOUSING | A30001-UP- | |
| 2 | 07044-13620 | PLUG, DRAIN | A30001-UP- | |
| 3 | 07040-13618 | PLUG | A30001-UP- | |
| 4 | 07002-13634 | O-RING | A30001-UP- | |
| 5 | 07030-01030 | BREATHER | A30001-UP- | |
| 6 | 421-22-13230 | SHAFT | A30001-UP- | |
| 7 | 07040-11007 | PLUG | A30001-UP- | |
| 8 | 07002-11023 | O-RING | A30001-UP- | |
| 9 | 07000-15220 | O-RING | A30001-UP- | |
| 10 | 01252-71040 | BOLT | A30001-UP- | |
| 11 | 01010-62495 | BOLT | A30001-UP- | |
| 12 | 01643-32460 | WASHER | A30001-UP- | |
| 13 | DIFFERENTIAL ASSEMBLY, FRONT (SEE FIG. F4400-03A0) | A30001-UP- | ||
| OR | ||||
| 13 | DIFFERENTIAL ASSEMBLY, FRONT - LIMITED SLIP (SEE FIG. F4400-04A0) | A30001-A30175- | ||
| OR | ||||
| 13 | DIFFERENTIAL ASSEMBLY, FRONT - LIMITED SLIP (SEE FIG. F4400-04A1) | A30176-UP- | ||
| 14 | 04020-01638 | PIN, DOWEL | A30001-UP- | |
| 15 | 07000-15455 | O-RING | A30001-UP- | |
| 16 | 01010-61450 | BOLT | A30001-UP- | |
| 17 | 01010-61455 | BOLT | A30001-UP- | |
| 18 | 01643-31445 | WASHER | A30001-UP- | |
| 19 | 424-22-23290 | BRACKET | A30001-UP- | |
| 20 | 01010-E1045 | BOLT | A30001-UP- | |
| 21 | 01643-31032 | WASHER | A30001-UP- | |
| 22 | 421-22-23310 | ADAPTER | A30001-UP- | |
| N/I | (NSS) | PLATE, NAME | A30001-UP- | |
| N/I | 04418-13060 | SCREW | A30001-UP- | |
