| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, FRONT(SEE FIG. F4400-02A0) | A30176-UP- | |||

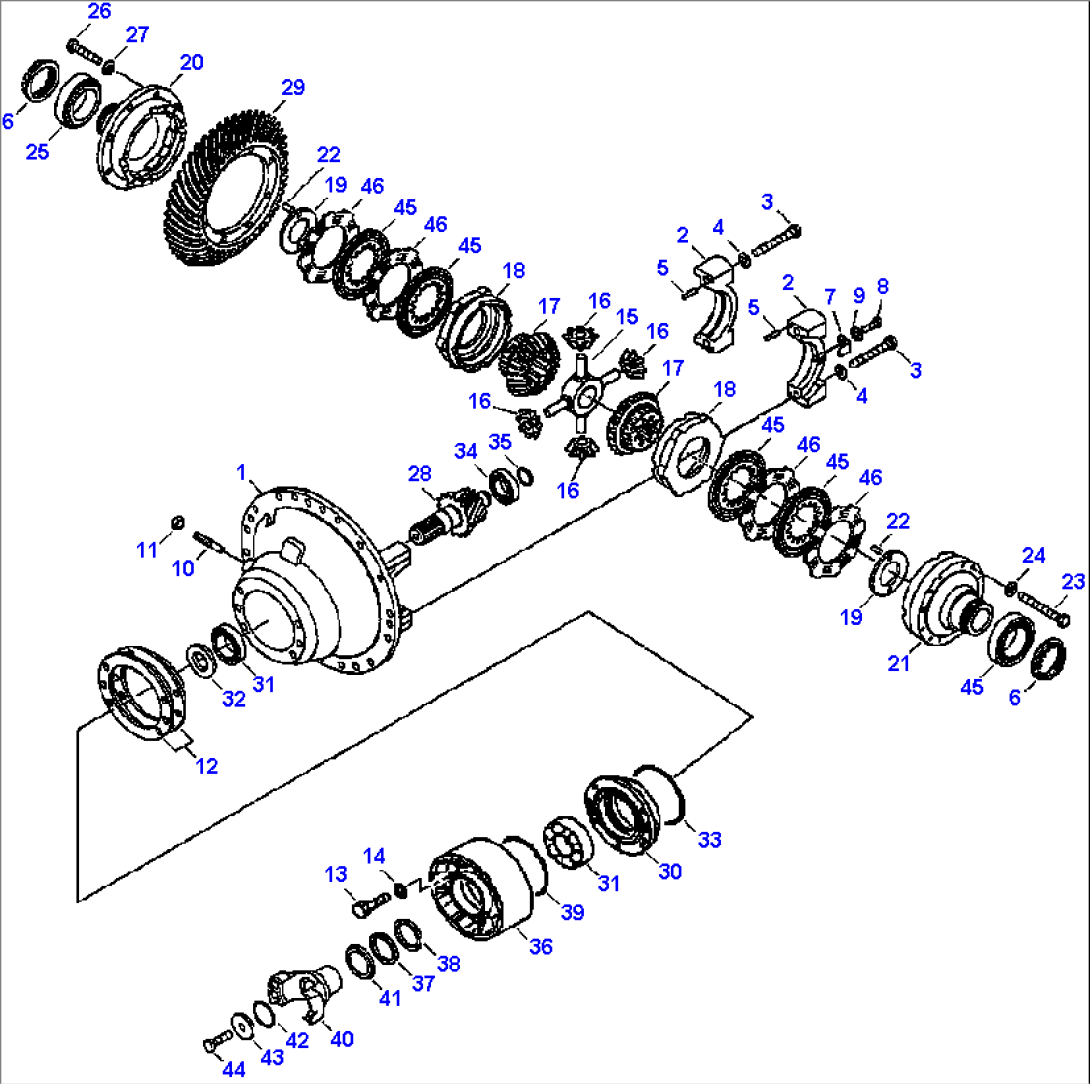

| 424-22-21052 | DIFFERENTIAL ASSEMBLY, FRONT - LIMITED SLIP | A30176-UP- | ||
| 424-22-21100 | CARRIER ASSEMBLY | A30176-UP- | ||
| 1 | 424-22-21110 | CARRIER | A30176-UP- | |
| 2 | 424-22-21120 | CAP | A30176-UP- | |
| 3 | 01011-62440 | BOLT | A30176-UP- | |
| 4 | 01643-32460 | WASHER | A30176-UP- | |
| 5 | 423-22-11161 | PIN, DOWEL | A30176-UP- | |
| 6 | 423-22-11141 | NUT, RING | A30176-UP- | |
| 7 | 421-22-11150 | LOCK | A30176-UP- | |
| 8 | 01010-31430 | BOLT | A30176-UP- | |
| 9 | 01643-31445 | WASHER | A30176-UP- | |
| 10 | 421-22-11180 | BOLT | A30176-UP- | |
| 11 | 01583-12414 | NUT | A30176-UP- | |
| 12 | 421-22-11372 | SHIM - 1.00 MM | A30176-UP- | |
| 421-22-11382 | SHIM - 1.30 MM | A30176-UP- | ||
| 421-22-11392 | SHIM - 1.20 MM | A30176-UP- | ||
| 13 | 01010-31455 | BOLT | A30176-UP- | |
| 14 | 01643-31445 | WASHER | A30176-UP- | |
| 424-22-27101 | DIFFERENTIAL ASSEMBLY | A30176-UP- | ||
| 15 | 424-22-27220 | SHAFT | A30176-UP- | |
| 16 | 242-22-27310 | PINION | A30176-UP- | |
| 17 | 424-22-27320 | GEAR | A30176-UP- | |
| 18 | 424-22-27211 | RING | A30176-UP- | |
| 19 | 421-22-27370 | WASHER | A30176-UP- | |
| 421-22-27380 | WASHER | A30176-UP- | ||
| 20 | 424-22-27111 | CASE | A30176-UP- | |
| 21 | 424-22-27121 | COVER | A30176-UP- | |
| 22 | 175-21-12180 | PIN, DOWEL | A30176-UP- | |
| 23 | 01011-31240 | BOLT | A30176-UP- | |
| 24 | 01643-31232 | WASHER | A30176-UP- | |
| 25 | 423-22-11850 | BEARING | A30176-UP- | |
| 26 | 01010-31645 | BOLT | A30176-UP- | |
| 27 | 01643-31645 | WASHER | A30176-UP- | |
| 424-22-21200 | PINION ASSEMBLY | A30176-UP- | ||
| 28 | (NSS) | PINION | A30176-UP- | |
| 29 | (NSS) | GEAR, BEVEL | A30176-UP- | |
| 30 | (NSS) | CAGE, BEARING | A30176-UP- | |
| 31 | 421-22-11871 | BEARING | A30176-UP- | |
| 32 | 421-22-11341 | SPACER | A30176-UP- | |
| 33 | 07000-15180 | O-RING | A30176-UP- | |
| 34 | 421-22-21850 | BEARING | A30176-UP- | |
| 35 | 04064-05020 | RING, SNAP | A30176-UP- | |
| 36 | (NSS) | CAGE | A30176-UP- | |
| 37 | 421-22-21760 | SEAL, DUST | A30176-UP- | |
| 38 | 07012-50095 | SEAL | A30176-UP- | |
| 39 | 07000-15175 | O-RING | A30176-UP- | |
| 40 | 421-23-21240 | COUPLING | A30176-UP- | |
| 41 | 421-22-21320 | PROTECTOR | A30176-UP- | |
| 42 | 07000-05055 | O-RING | A30176-UP- | |
| 43 | 421-22-11240 | HOLDER | A30176-UP- | |
| 44 | 01051-62420 | BOLT | A30176-UP- | |
| 45 | 424-22-27410 | DISC, FRICTION | A30176-UP- | |
| 46 | 424-22-27450 | PLATE, DRIVE - T3.40 MM | A30176-UP- | |
| 424-22-27460 | PLATE, DRIVE - T3.50 MM | A30176-UP- |
