| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, FRONT(SEE FIG. F4400-02A0) | A30001-UP- | |||

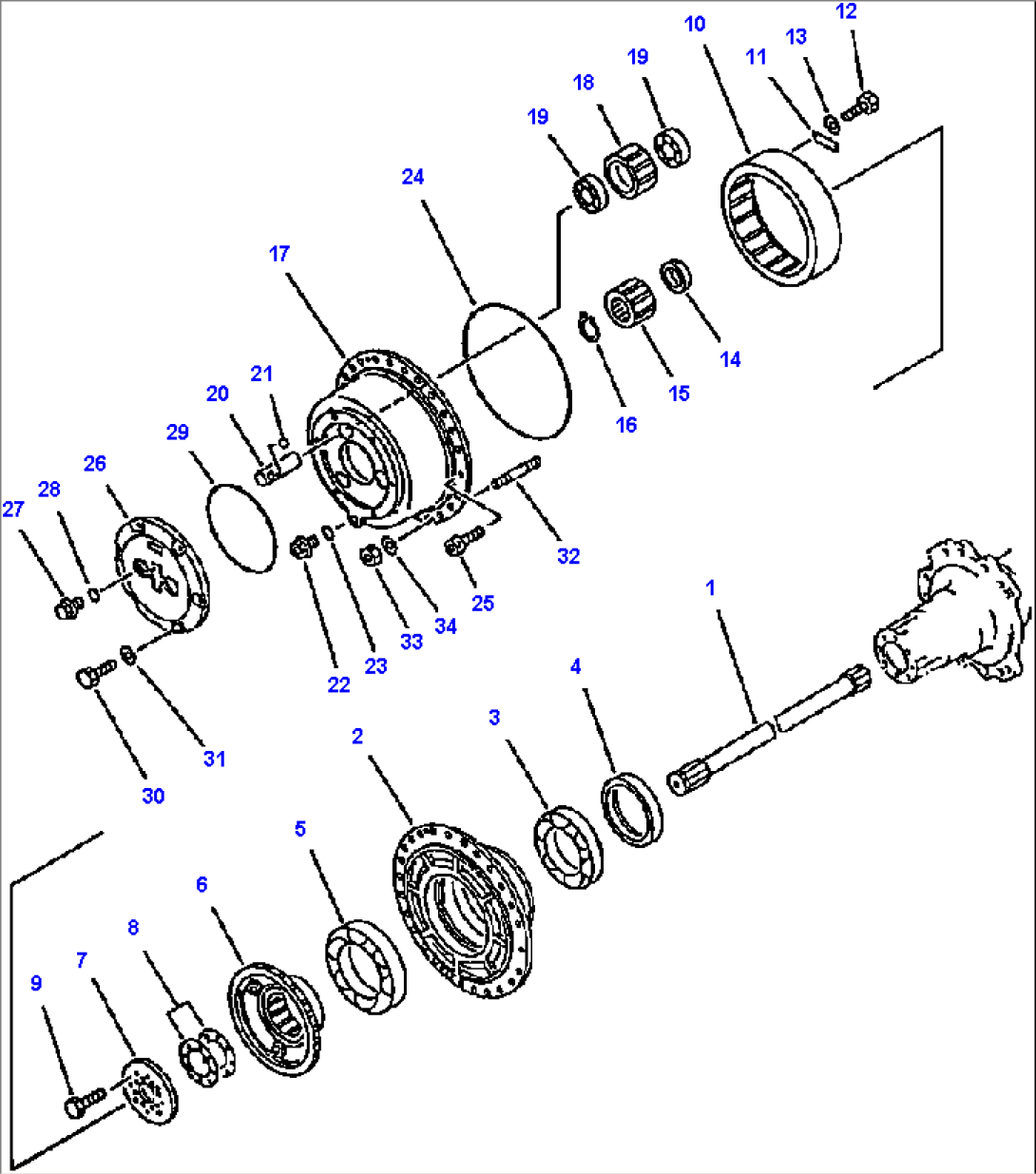

| 424-22-22000 | DRIVE ASSEMBLY, FINAL | A30001-UP- | ||
| 1 | 424-22-22410 | SHAFT | A30001-UP- | |
| 2 | 421-22-22740 | HUB | A30001-UP- | |
| 3 | 421-22-12780 | BEARING | A30001-UP- | |
| 4 | 421-22-12140 | RETAINER | A30001-UP- | |
| 5 | 421-22-12790 | BEARING | A30001-UP- | |
| 6 | 421-22-12340 | HUB | A30001-UP- | |
| 7 | 421-22-12220 | RETAINER | A30001-UP- | |
| 8 | 421-22-12160 | SHIM - 0.05 MM | A30001-UP- | |
| 421-22-12170 | SHIM - 0.20 MM | A30001-UP- | ||
| 421-22-12180 | SHIM - 0.50 MM | A30001-UP- | ||
| 421-22-12190 | SHIM - 1.00 MM | A30001-UP- | ||
| 9 | 01010-61450 | BOLT | A30001-UP- | |
| 10 | 424-22-22540 | GEAR | A30001-UP- | |
| 11 | 421-22-12360 | PLATE | A30001-UP- | |
| 12 | 01010-E0820 | BOLT | A30001-UP- | |
| 13 | 01643-30823 | WASHER | A30001-UP- | |
| 14 | 421-22-12350 | SPACER | A30001-UP- | |
| 15 | 421-22-12660 | GEAR | A30001-UP- | |
| 16 | 04064-06020 | RING, SNAP | A30001-UP- | |
| 424-22-22100 | CARRIER ASSEMBLY | A30001-UP- | ||
| 17 | 424-22-22610 | CARRIER | A30001-UP- | |
| 18 | 424-22-12531 | GEAR | A30001-UP- | |
| 19 | 421-22-12770 | BEARING | A30001-UP- | |
| 20 | 424-22-12510 | PIN | A30001-UP- | |
| 21 | 04260-01587 | BALL | A30001-UP- | |
| 22 | 07044-12412 | PLUG | A30001-UP- | |
| 23 | 07002-12434 | O-RING | A30001-UP- | |
| 24 | 07000-15410 | O-RING | A30001-UP- | |
| 25 | 01252-71025 | BOLT | A30001-UP- | |
| 26 | 421-22-12632 | COVER | A30001-UP- | |
| 27 | 07041-13612 | PLUG | A30001-UP- | |
| 28 | 07002-13634 | O-RING | A30001-UP- | |
| 29 | 07000-15280 | O-RING | A30001-UP- | |
| 30 | 01010-E1235 | BOLT | A30001-UP- | |
| 31 | 01643-31232 | WASHER | A30001-UP- | |
| 32 | 01144-62070 | STUD | A30001-UP- | |
| 33 | 423-22-12790 | NUT | A30001-UP- | |
| 34 | 01643-32060 | WASHER | A30001-UP- |
