| Item | Part No. | Part Name | Qty | Serial No. |

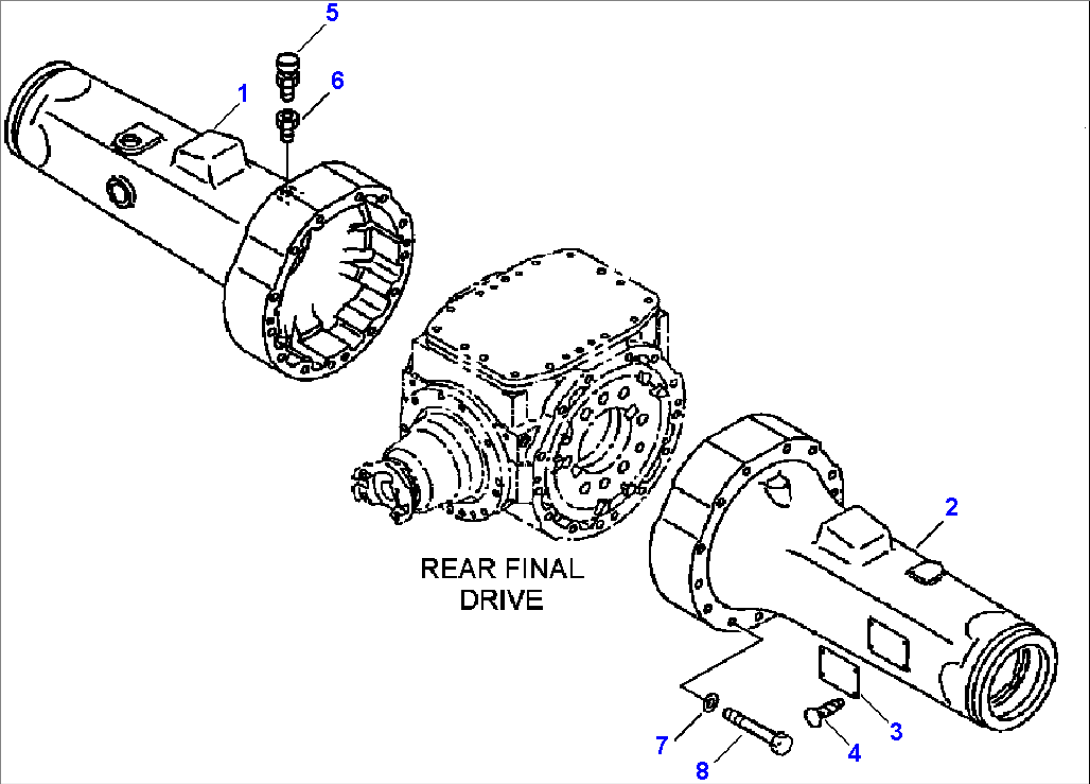

| AXLE ASSEMBLY, REAR(SEE FIG. F4500-01A0) | A80001-UP- | |||
| 1 | 417-23-23220 | HOUSING, R.H. | A80001-UP- | |
| 2 | 417-23-23210 | HOUSING, L.H. | A80001-UP- | |
| 3 | 815-02-10110 | PLATE, NAME | A80001-UP- | |
| 4 | 04418-13060 | SCREW | A80001-UP- | |
| 5 | 07030-01030 | BREATHER | A80001-UP- | |
| 6 | 417-22-13311 | ADAPTER | A80001-UP- | |
| 7 | WASHER (SEE FIG. F4500-05A0) | A80001-UP- | ||
| 8 | BOLT (SEE FIG. F4500-05A0) | A80001-UP- | ||
