| Item | Part No. | Part Name | Qty | Serial No. |
| AXLE ASSEMBLY, REAR(SEE FIG. F4500-02A0) | A30001-UP- | |||

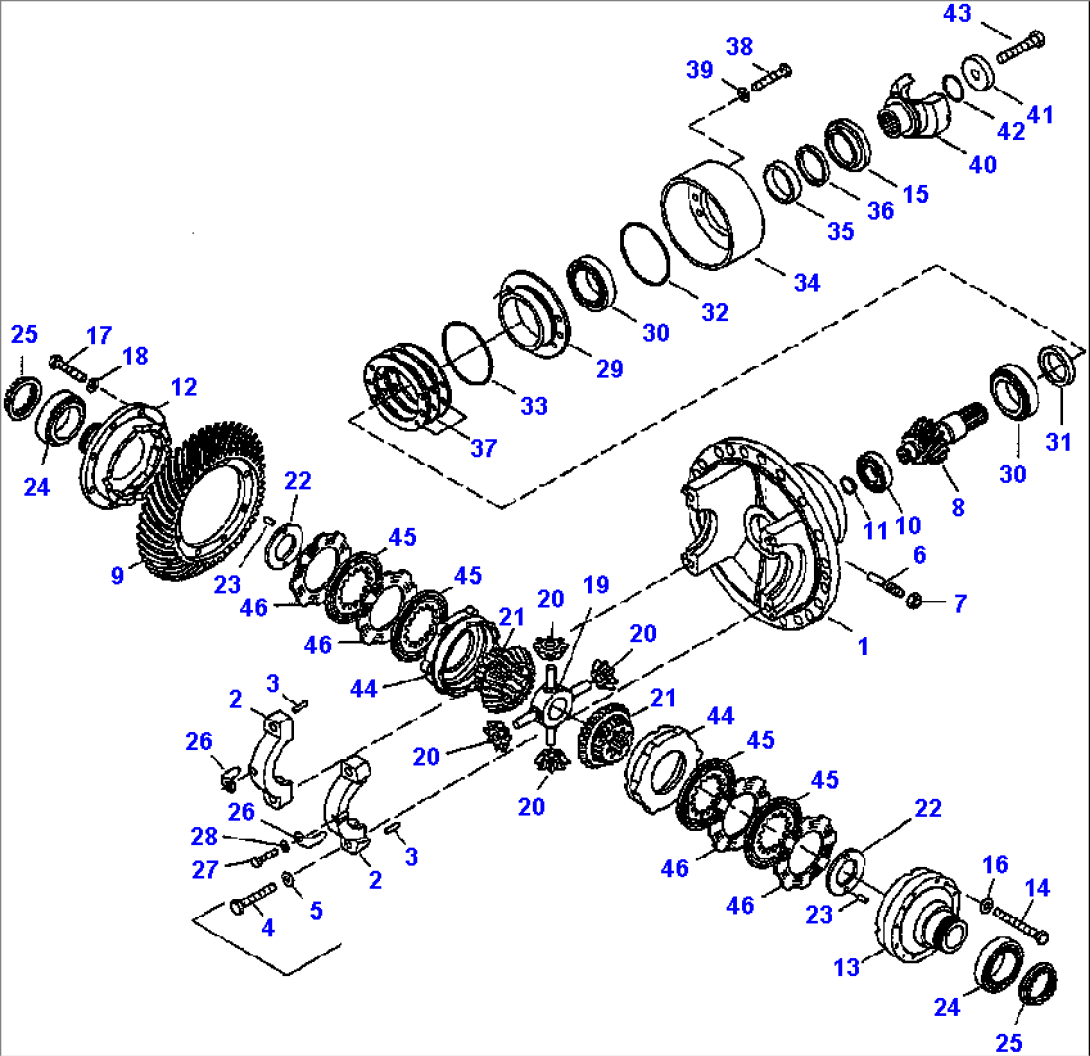

| 424-23-21051 | DIFFERENTIAL ASSEMBLY, REAR - LIMITED SLIP | A30001-UP- | ||
| 424-22-21100 | CARRIER ASSEMBLY | A30001-UP- | ||
| 1 | (NSS) | CARRIER | A30001-UP- | |
| 2 | (NSS) | CAP | A30001-UP- | |
| 3 | 423-22-11161 | PIN | A30001-UP- | |
| 4 | 01011-62435 | BOLT | A30001-UP- | |
| 5 | 01643-32460 | WASHER | A30001-UP- | |
| 6 | 421-22-11180 | BOLT | A30001-UP- | |
| 7 | 01583-12414 | NUT | A30001-UP- | |
| 424-22-21300 | PINION ASSEMBLY | A30001-UP- | ||
| 8 | (NSS) | PINION | A30001-UP- | |
| 9 | (NSS) | GEAR | A30001-UP- | |
| 10 | 421-22-11841 | BEARING | A30001-UP- | |
| 11 | 04064-04518 | RING, SNAP | A30001-UP- | |
| 421-22-21500 | CASE ASSEMBLY | A30001-UP- | ||
| 12 | (NSS) | CASE - FLANGED HALF | A30001-UP- | |
| 13 | (NSS) | CASE - PLAIN HALF | A30001-UP- | |
| 14 | 01010-E1240 | BOLT | A30001-UP- | |
| 15 | 421-22-21320 | PROTECTOR | A30001-UP- | |
| 16 | 01643-31232 | WASHER | A30001-UP- | |
| 17 | 01010-61645 | BOLT | A30001-UP- | |
| 18 | 01643-31645 | WASHER | A30001-UP- | |
| 19 | 424-22-27220 | SHAFT | A30001-UP- | |
| 20 | 424-22-27310 | GEAR | A30001-UP- | |
| 21 | 424-22-27320 | GEAR | A30001-UP- | |
| 22 | 421-22-27370 | SHIM - 4.00 MM | A30001-UP- | |
| 421-22-27380 | SHIM - 4.10 MM | A30001-UP- | ||
| 23 | 175-21-12180 | PIN | A30001-UP- | |
| 24 | 14X-14-19261 | BEARING | A30001-UP- | |
| 25 | 423-22-11140 | NUT | A30001-UP- | |
| 26 | 421-22-11150 | LOCK | A30001-UP- | |
| 27 | 01010-61430 | BOLT | A30001-UP- | |
| 28 | 01643-31445 | WASHER | A30001-UP- | |
| 29 | 421-22-21130 | CAGE | A30001-UP- | |
| 30 | 421-22-11871 | BEARING | A30001-UP- | |
| 31 | 421-22-11341 | SPACER | A30001-UP- | |
| 32 | 07000-15175 | O-RING | A30001-UP- | |
| 33 | 07000-15180 | O-RING | A30001-UP- | |
| 34 | 421-23-21360 | SUPPORT | A30001-UP- | |
| 35 | 07012-50095 | SEAL, OIL | A30001-UP- | |
| 36 | 421-22-21760 | SEAL, OIL | A30001-UP- | |
| 37 | 421-22-11392 | SHIM - 0.20 MM | A30001-UP- | |
| 38 | 421-22-11382 | SHIM - 0.30 MM | A30001-UP- | |
| 421-22-11372 | SHIM - 1.00 MM | A30001-UP- | ||
| 01010-61445 | BOLT | A30001-UP- | ||
| 39 | 01643-31445 | WASHER | A30001-UP- | |
| 40 | 421-23-21240 | COUPLING | A30001-UP- | |
| 41 | 421-22-11240 | HOLDER | A30001-UP- | |
| 42 | 07000-15055 | O-RING | A30001-UP- | |
| 43 | 01051-62420 | BOLT | A30001-UP- | |
| 44 | 424-22-27210 | RING | A30001-UP- | |
| 45 | 424-22-27410 | DISC, INTERNAL | A30001-UP- | |
| 46 | 421-22-27450 | DISC, EXTERNAL - 3.40 MM | A30001-UP- | |
| 421-22-27460 | DISC, EXTERNAL - 3.50 MM | A30001-UP- |
