| Item | Part No. | Part Name | Qty | Serial No. |

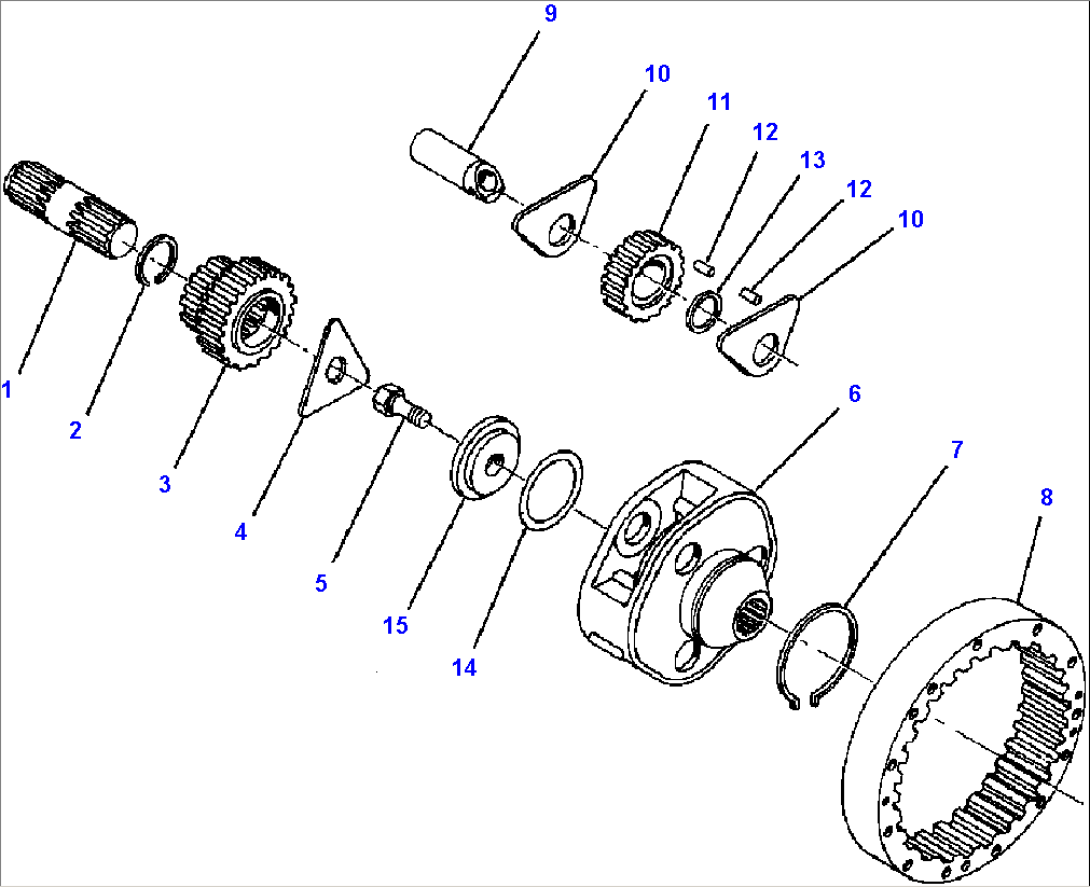

| AXLE ASSEMBLY (SEE FIG. F5550-01A4) | ||||
| 1 | 135 964 | SHAFT, INPUT | ||
| 2 | 148 612 | RING, RETAINING | ||
| 3 | 1430 209 H1 | GEAR, SUN | ||
| 4 | 1430 211 H1 | PLATE, LOCK | ||
| 5 | 138 941 | BOLT, SPECIAL | ||
| 6 | 1430 216 H1 | CARRIER, PLANET | ||
| 7 | 1430 212 H1 | RING, RETAINING | ||
| 8 | 1430 214 H1 | GEAR, RING | ||
| 9 | 1430 217 H1 | SHAFT, PLANET | ||
| 10 | 1430 213 H1 | WASHER, THRUST | ||
| 11 | 1431 306 H1 | GEAR, PLANET | ||
| 12 | 1430 210 H1 | BEARING, ROLLER | ||
| 13 | 1430 218 H1 | SPACER, BEARING | ||
| 14 | 1234 383 H1 | WASHER, THRUST | ||
| 15 | 1234 384 H1 | WASHER, RETAINING |
