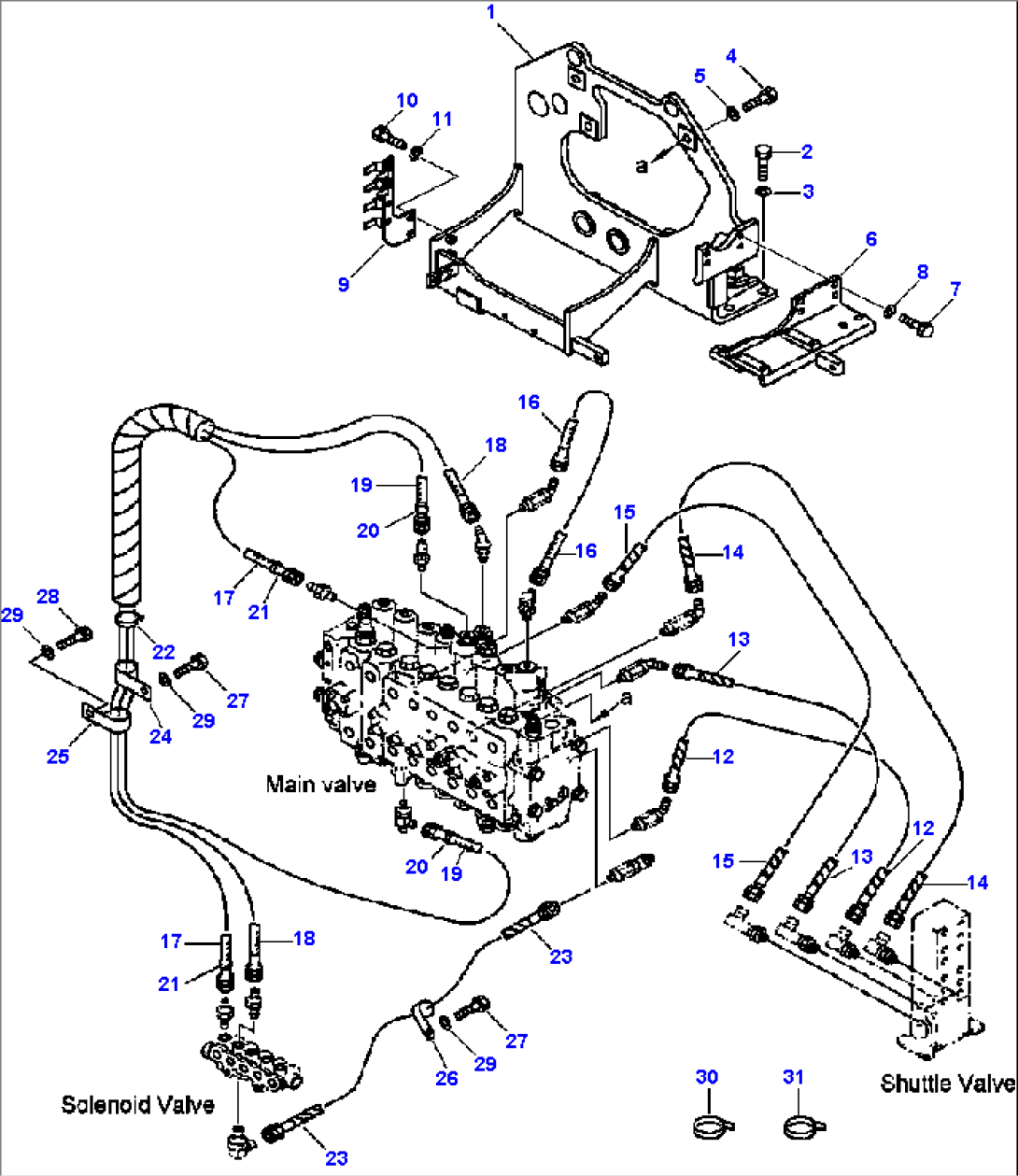

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 207-62-61261 | BRACKET | A83001-- | |
| 2 | 01010-81660 | BOLT | A83001-- | |
| 3 | 01643-31645 | WASHER | A83001-- | |
| 4 | 01010-81650 | BOLT | A83001-- | |
| 5 | 01643-31645 | WASHER | A83001-- | |
| 6 | 20Y-62-22321 | BRACKET | A83001-- | |
| 7 | 01010-81230 | BOLT | A83001-- | |
| 8 | 01643-31232 | WASHER | A83001-- | |
| 9 | 207-62-61441 | BRACKET | A83001-- | |
| 10 | 01010-81235 | BOLT | A83001-- | |
| 11 | 01643-31232 | WASHER | A83001-- | |
| 12 | 20Y-62-22610 | HOSE | A83001-- | |
| 13 | 20Y-62-22620 | HOSE | A83001-- | |
| 14 | 20Y-62-22630 | HOSE | A83001-- | |
| 15 | 20Y-62-22641 | HOSE, 800 mm | A83001-- | |
| 16 | 207-62-63131 | HOSE ASSEMBLY, 500 mm | A83001-- | |
| 17 | 203-62-52260 | HOSE, 1300 mm | A83001-- | |
| 18 | 203-62-52350 | HOSE, 1300 mm | A83001-- | |
| 19 | 20Y-62-22881 | HOSE | A83001-- | |
| 20 | 20Y-62-22830 | BAND, WHITE | A83001-- | |
| 21 | 20Y-62-22840 | BAND, BLACK | A83001-- | |
| 22 | 08034-20519 | STRAP,TIE | A83001-- | |
| 23 | 07102-20307 | HOSE | A83001-- | |
| 24 | 04434-53212 | CLIP | A83001-- | |
| 25 | 195-06-41830 | CLIP | A83001-- | |
| 26 | 04434-51812 | CLIP | A83001-- | |
| 27 | 01010-81225 | BOLT | A83001-- | |
| 28 | 01010-81220 | BOLT | A83001-- | |
| 29 | 01643-31232 | WASHER | A83001-- | |
| 30 | 08034-20519 | STRAP, TIE | A83001-- | |
| 31 | 08034-20536 | STRAP, TIE | A83001-- |
