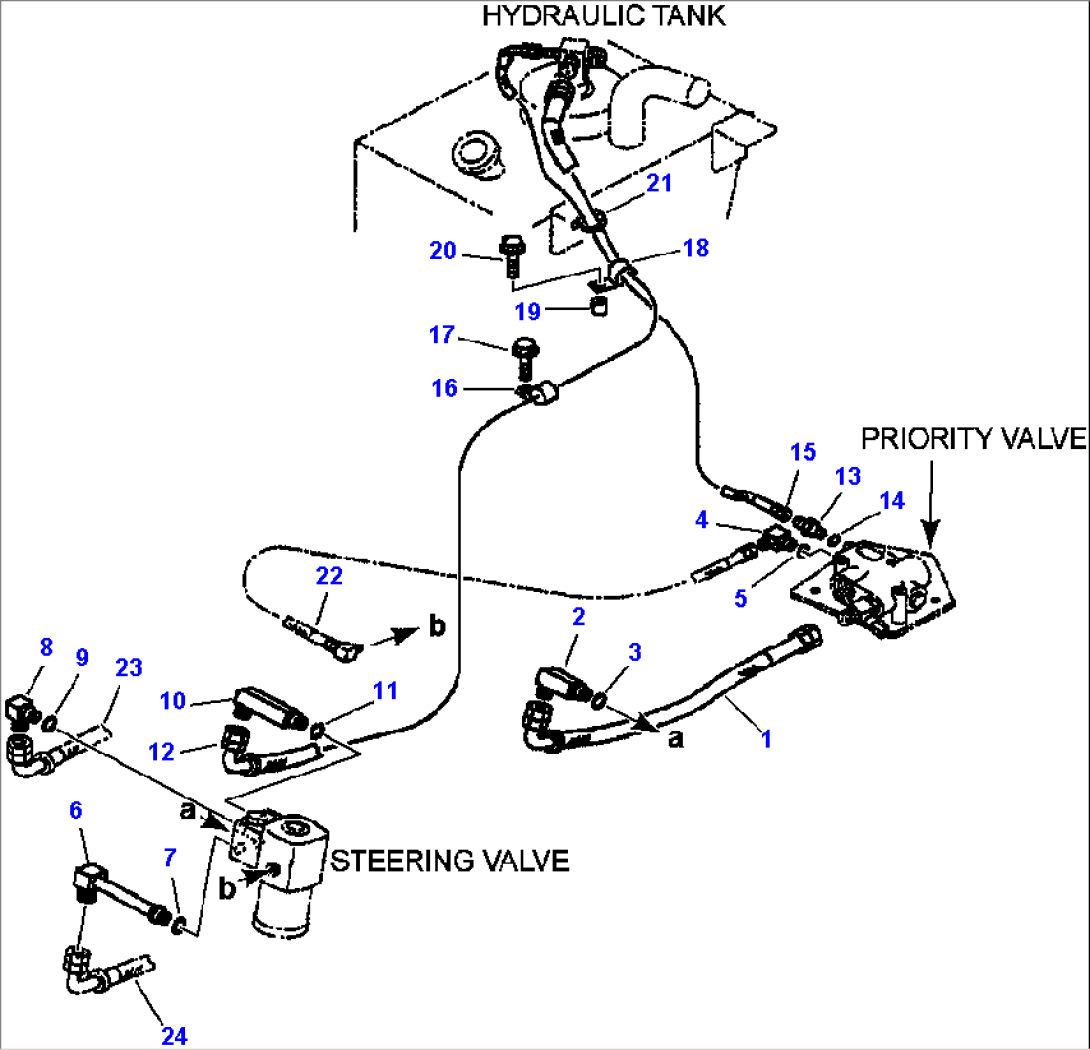

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-21120 | HOSE | A70001-UP- | |
| 2 | 418-62-11450 | ELBOW | A70001-UP- | |
| 3 | 415-62-11560 | O-RING | A70001-UP- | |
| 4 | 416-62-11490 | ELBOW | A70001-UP- | |
| 5 | 416-62-11480 | O-RING | A70001-UP- | |
| 6 | 418-62-21130 | ELBOW | A70001-UP- | |
| 7 | 415-62-11560 | O-RING | A70001-UP- | |
| 8 | 418-62-11440 | ELBOW | A70001-UP- | |
| 9 | 415-62-11560 | O-RING | A70001-UP- | |
| 10 | 419-62-11620 | ELBOW | A70001-UP- | |
| 11 | 415-62-11560 | O-RING | A70001-UP- | |
| 12 | 418-62-21250 | HOSE | A70001-UP- | |
| 13 | 416-62-11240 | UNION | A70001-UP- | |
| 14 | 416-62-11480 | O-RING | A70001-UP- | |
| 15 | 418-62-21270 | HOSE | A70001-UP- | |
| 16 | 04434-52512 | CLIP | A70001-UP- | |
| 17 | 01435-01220 | BOLT | A70001-UP- | |
| 18 | 04434-52512 | CLIP | A70001-UP- | |
| 19 | 423-54-11340 | SPACER | A70001-UP- | |
| 20 | 01435-01240 | BOLT | A70001-UP- | |
| 21 | 306 132 C2 | BAND | A70001-UP- | |
| 22 | HOSE (SEE FIG. H0122-04A0) | A70001-UP- | ||
| 23 | HOSE (SEE FIG. H4410-01A0) | A70001-UP- | ||
| 24 | HOSE (SEE FIG. H4410-01A0) | A70001-UP- |
