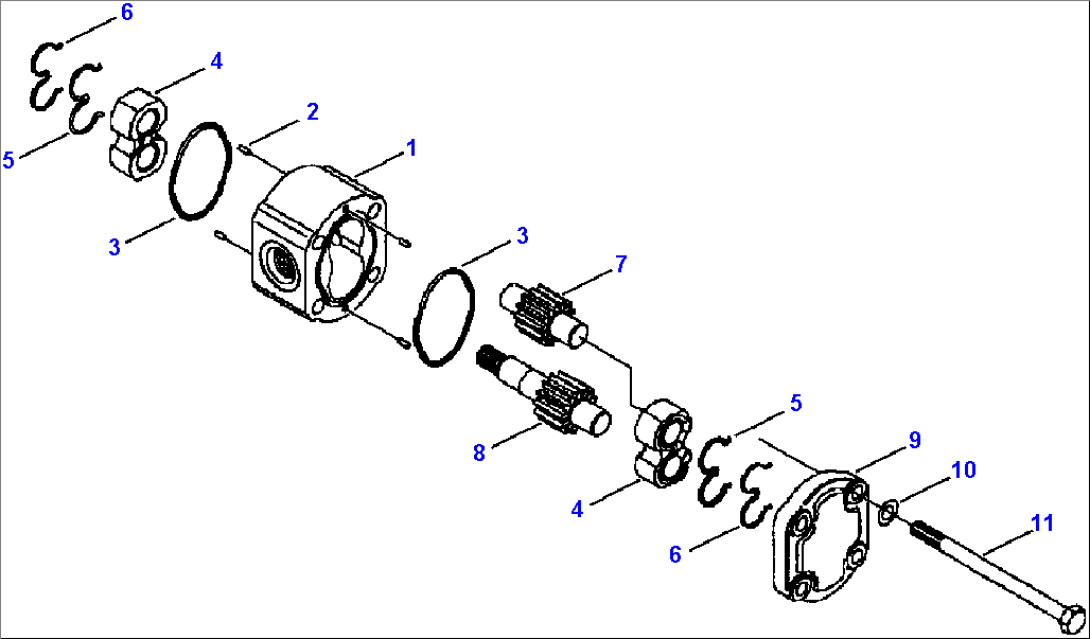

| Item | Part No. | Part Name | Qty | Serial No. |
| 417-62-A1160 | REAR PUMP | A70001-UP- | ||
| 1 | (NSS) | HOUSING GEAR | A70001-UP- | |
| 2 | (NSS) | PIN, DOWEL | A70001-UP- | |
| 3 | (NSS) | O-RING | A70001-UP- | |
| 4 | (NSS) | BLOCK | A70001-UP- | |
| 5 | (NSS) | E-SEAL | A70001-UP- | |
| 6 | (NSS) | RING, BACK-UP | A70001-UP- | |
| 7 | (NSS) | IDLER GEAR | A70001-UP- | |
| 8 | (NSS) | DRIVE GEAR | A70001-UP- | |
| 9 | (NSS) | COVER, END | A70001-UP- | |
| 10 | (NSS) | SPACER | A70001-UP- | |
| 11 | (NSS) | BOLT | A70001-UP- | |
| 417-62-A1170 | SEAL KIT | A70001-UP- | ||
| F1 - INCLUDED IN SEAL KIT. | ||||
