| Item | Part No. | Part Name | Qty | Serial No. |

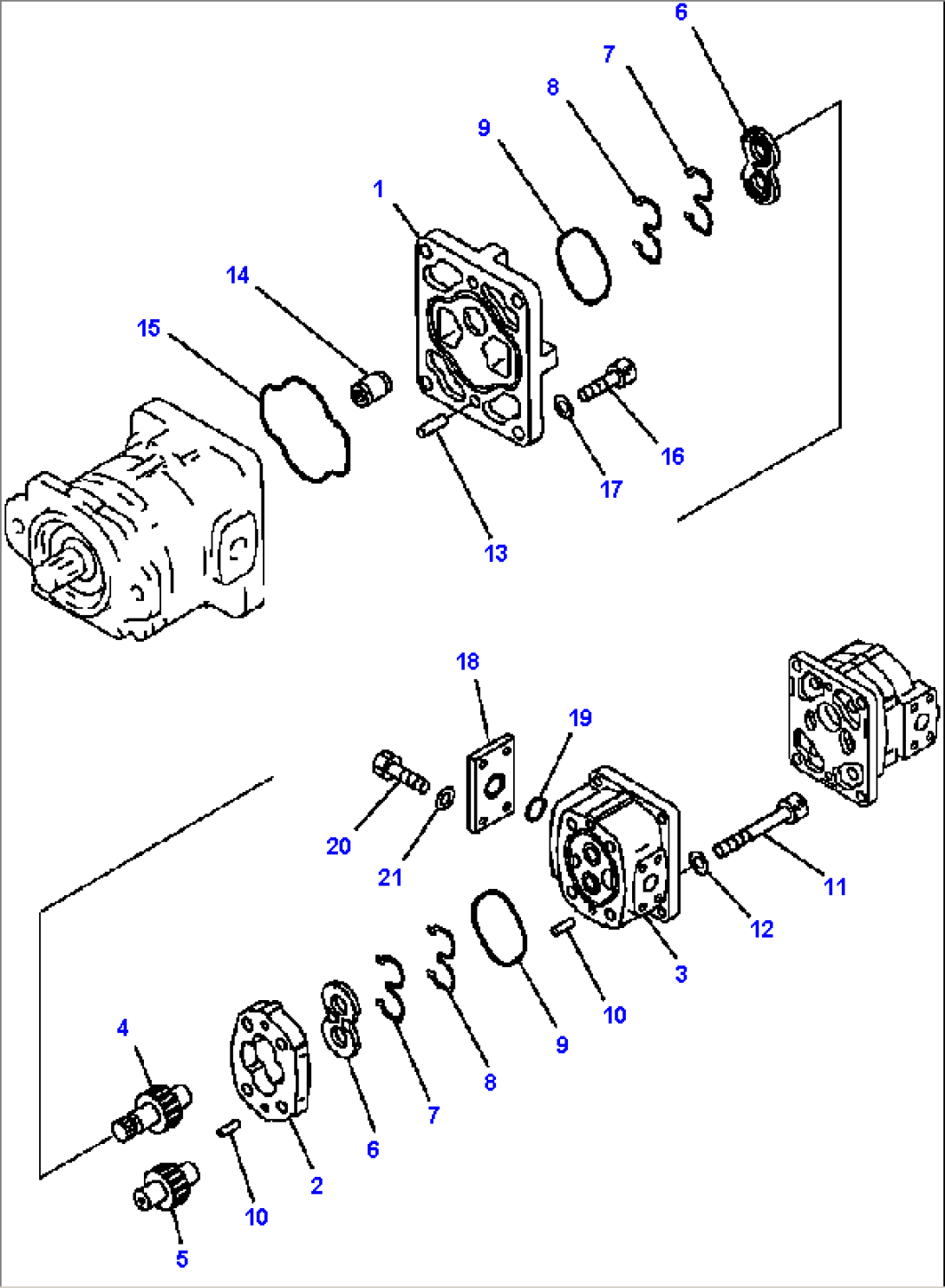

| PUMP SAR80+12+8 (SEE FIG. H0210-01E0) | A10001-- | |||
| 705-34-22340 | PUMP SAR12 | A10001-- | ||
| 1 | 705-19-01510 | BRACKET | A10001-- | |
| 705-17-01350 | BUSHING | A10001-- | ||
| 2 | 705-17-22011 | CASE, GEAR | A10001-- | |
| 3 | 705-17-01220 | CARRIER | A10001-- | |
| 705-17-01350 | BUSHING | A10001-- | ||
| 4 | 705-17-22460 | GEAR, DRIVE | A10001-- | |
| 5 | 705-17-22511 | GEAR, DRIVEN | A10001-- | |
| 6 | 705-17-01610 | PLATE, SIDE | A10001-- | |
| 7 | 705-67-01440 | RING, BACK-UP | A10001-- | |
| 8 | 705-67-01470 | SEAL, SEAL | A10001-- | |
| 9 | 705-67-01380 | O-RING | A10001-- | |
| 10 | 04020-00820 | PIN, DOWEL | A10001-- | |
| 11 | 01252-61285 | BOLT | A10001-- | |
| 12 | 01643-51232 | WASHER | A10001-- | |
| 13 | 04020-01228 | PIN, DOWEL | A10001-- | |
| 14 | 705-19-01330 | COUPLING | A10001-- | |
| 15 | 705-17-03381 | O-RING | A10001-- | |
| 16 | 01252-61445 | BOLT | A10001-- | |
| 17 | 705-17-04980 | WASHER | A10001-- | |
| 18 | 705-17-02890 | PLATE | A10001-- | |
| 19 | 07000-E3045 | O-RING | A10001-- | |
| 20 | 01010-81230 | BOLT | A10001-- | |
| 21 | 01643-51232 | WASHER | A10001-- | |
| F1 THIS PART NOT SUPPLIED AS A INDIVIDUAL PART, ONLY AS AN ASSEMBLY. HOWEVER, IT IS SUPPLIED AS A INDIVIDUAL PART TO AUTHORIZED DISTRIBUTORS. | ||||
