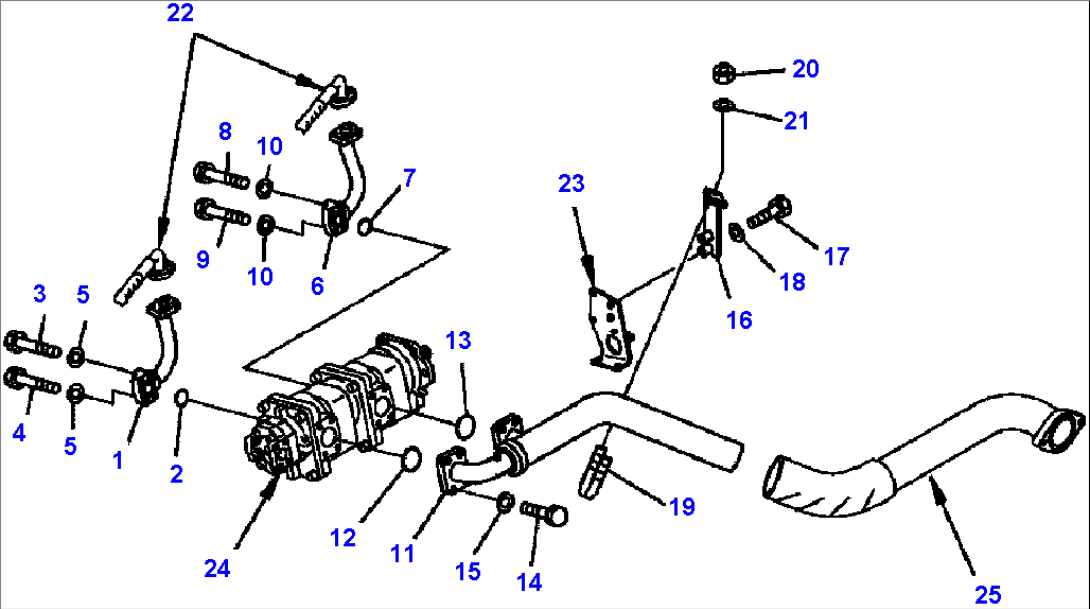

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-61-11151 | TUBE | A10001-- | |
| 2 | 07000-F3035 | O-RING | A10001-- | |
| 3 | 01010-81065 | BOLT | A10001-- | |
| 4 | 01010-81055 | BOLT | A10001-- | |
| 5 | 01643-51032 | WASHER | A10001-- | |
| 6 | 56B-61-11161 | TUBE | A10001-- | |
| 7 | 07000-F3035 | O-RING | A10001-- | |
| 8 | 01010-81065 | BOLT | A10001-- | |
| 9 | 01010-81055 | BOLT | A10001-- | |
| 10 | 01643-51032 | WASHER | A10001-- | |
| 11 | 56C-61-11142 | TUBE | A10001-- | |
| 12 | 07000-F3050 | O-RING | A10001-- | |
| 13 | 07000-F2060 | O-RING | A10001-- | |
| 14 | 07372-21240 | BOLT | A10001-- | |
| 15 | 01643-51232 | WASHER | A10001-- | |
| 16 | 56C-61-11330 | BRACKET | A10001-- | |
| 17 | 01010-81050 | BOLT | A10001-- | |
| 18 | 01643-31032 | WASHER | A10001-- | |
| 19 | 07283-37663 | CLIP | A10001-- | |
| 20 | 01597-01009 | NUT | A10001-- | |
| 21 | 01643-31032 | WASHER | A10001-- | |
| 22 | HOSE (SEE FIG. H3410-01A0) | A10001-- | ||
| 23 | BRACKET (SEE FIG. H0210-04A0) | A10001-- | ||
| 24 | PUMP (SEE FIG. H0210-01A0) | A10001-- | ||
| 25 | TUBE (SEE FIG. H0110-02A0) | A10001-- |
