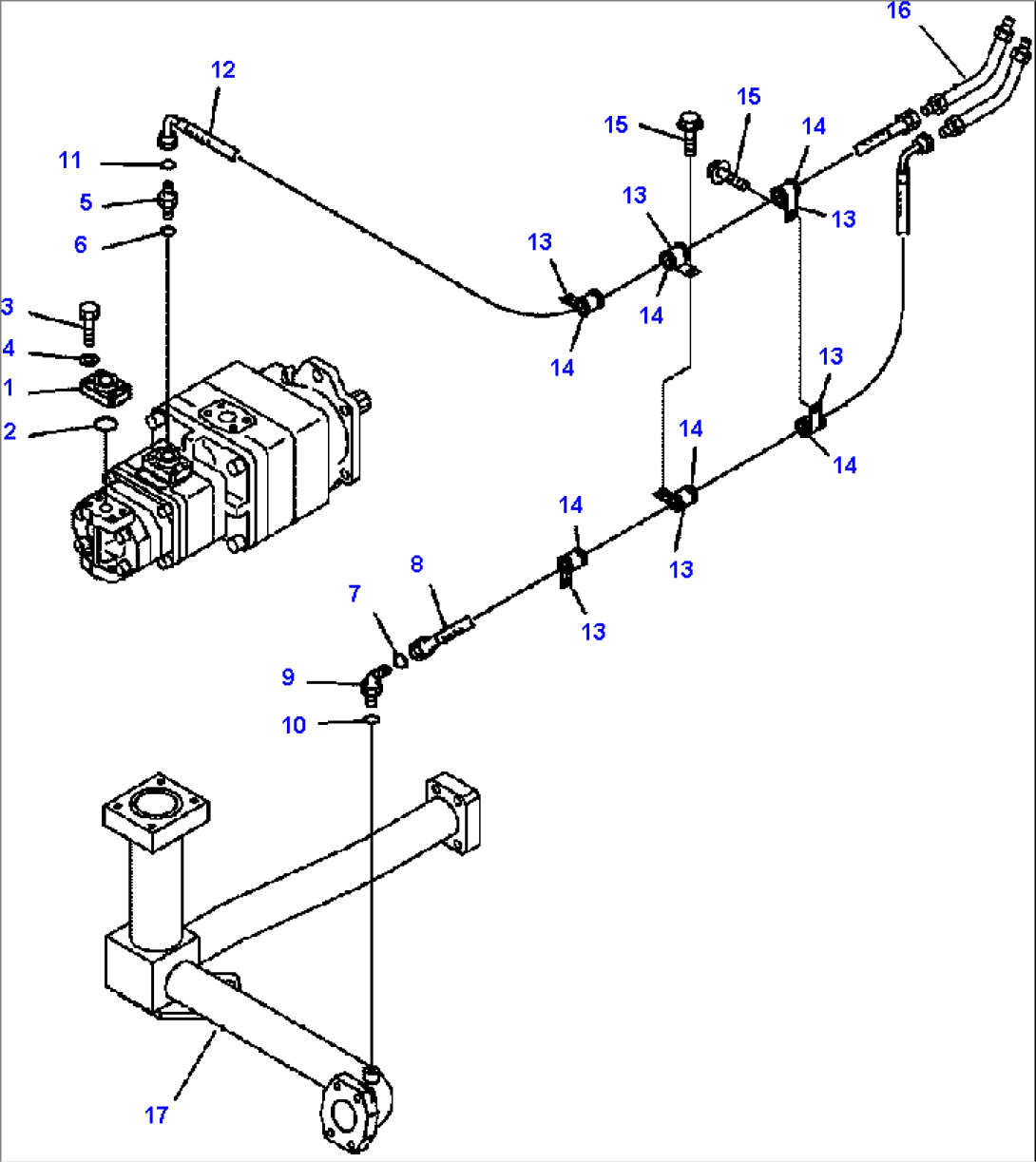

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-88-12430 | FLANGE | A10001-- | |
| 2 | 07000-F3032 | O-RING | A10001-- | |
| 3 | 01010-80835 | BOLT | A10001-- | |
| 4 | 01643-50823 | WASHER | A10001-- | |
| 5 | 02781-00422 | UNION | A10001-- | |
| 6 | 07002-22034 | O-RING | A10001-- | |
| 7 | 02896-21012 | O-RING | A10001-- | |
| 8 | 02766-00419 | HOSE | A10001-- | |
| 9 | 02783-10422 | ELBOW | A10001-- | |
| 10 | 07002-22034 | O-RING | A10001-- | |
| 11 | 02896-21012 | O-RING | A10001-- | |
| 12 | 02766-00422 | HOSE | A10001-- | |
| 13 | 04434-52711 | CLIP | A10001-- | |
| 14 | 07095-20420 | CUSHION | A10001-- | |
| 15 | 01435-01016 | BOLT | A10001-- | |
| 16 | TUBE (SEE FIG. H3511-09A0) | A10001-- | ||
| 17 | TUBE (SEE FIG. H0210-05A0) | A10001-- |
