| Item | Part No. | Part Name | Qty | Serial No. |

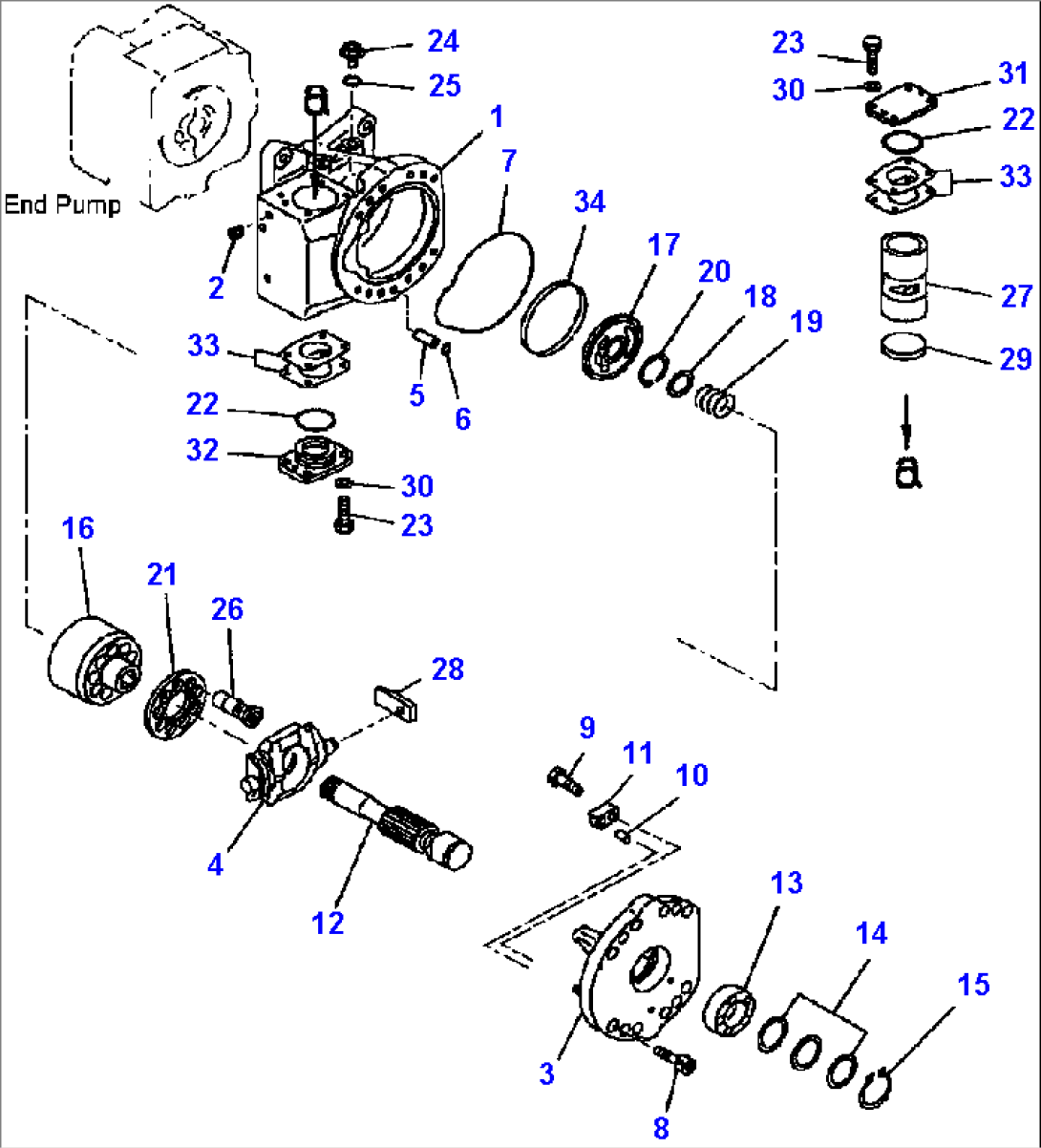

| PUMP ASSEMBLY (SEE FIG. H1600-01A0) | A50018-- | |||
| PUMP SUBASSEMBLY (SEE FIG. H1600-01A0) | A50018-- | |||
| 708-2L-05520 | CASE ASSEMBLY, REAR | A50018-- | ||
| 1 | (NSS) | CASE, REAR | A50018-- | |
| 2 | (NSS) | PLUG | A50018-- | |
| 3 | 708-2L-05620 | CRADLE, REAR | A50018-- | |
| 4 | 708-2L-23460 | CAM, ROCKER | A50018-- | |
| 5 | 708-25-12330 | JOINT | A50018-- | |
| 6 | 07000-F2015 | O-RING | A50018-- | |
| 7 | 708-25-62361 | O-RING | A50018-- | |
| 8 | 708-25-12350 | BOLT | A50018-- | |
| 9 | 706-75-42270 | SCREW | A50018-- | |
| 10 | 04020-00616 | PIN | A50018-- | |
| 11 | 708-2L-23790 | STOPPER | A50018-- | |
| 12 | 708-2L-22460 | SHAFT | A50018-- | |
| 13 | 708-2L-22150 | BEARING | A50018-- | |
| 14 | 708-2E-12160 | WASHER | A50018-- | |
| 708-2E-12170 | WASHER | A50018-- | ||
| 708-2E-12180 | WASHER | A50018-- | ||
| 708-2E-12190 | WASHER | A50018-- | ||
| 15 | 708-25-12790 | RING, SNAP | A50018-- | |
| 708-2L-04151 | CYLINDER BLOCK ASSEMBLY | A50018-- | ||
| 16 | 708-2L-33110 | BLOCK, CYLINDER | A50018-- | |
| 17 | 708-2L-33221 | PLATE, VALVE | A50018-- | |
| 18 | 708-7L-13140 | WASHER | A50018-- | |
| 19 | 708-25-33160 | SPRING | A50018-- | |
| 20 | 04065-04818 | RING, SNAP | A50018-- | |
| 21 | 708-2L-33340 | RETAINER, SHOE | A50018-- | |
| 22 | 07000-E2065 | O-RING | A50018-- | |
| 23 | 01016-51035 | BOLT | A50018-- | |
| 24 | 07044-12412 | PLUG | A50018-- | |
| 25 | 07002-32434 | O-RING | A50018-- | |
| 26 | 708-2L-33310 | PISTON SUBASSEMBLY | A50018-- | |
| 27 | 708-25-14211 | PISTON | A50018-- | |
| 28 | 708-2L-23730 | SLIDER | A50018-- | |
| 29 | 708-45-14370 | COLLAR | A50018-- | |
| 30 | 01643-31032 | WASHER | A50018-- | |
| 31 | 708-25-14140 | CAP | A50018-- | |
| 32 | 708-25-14150 | CAP | A50018-- | |
| 33 | 708-25-14160 | SHIM | A50018-- | |
| 708-25-14170 | SHIM | A50018-- | ||
| 708-25-14180 | SHIM | A50018-- | ||
| 708-25-14190 | SHIM | A50018-- | ||
| 34 | 708-25-13630 | RING | A50018-- | |
| NI | 708-2L-23360 | PIN | A50018-- | |
| NI | 708-2L-23131 | SEAT | A50018-- | |
| NI | 708-2L-23351 | GUIDE | A50018-- | |
| F1 THICKNESS AVAILABLE TO PROPERLY LOCATE THE BEARING | ||||
| F2 THICKNESS AVAILABLE TO CONTROL PISTON | ||||
