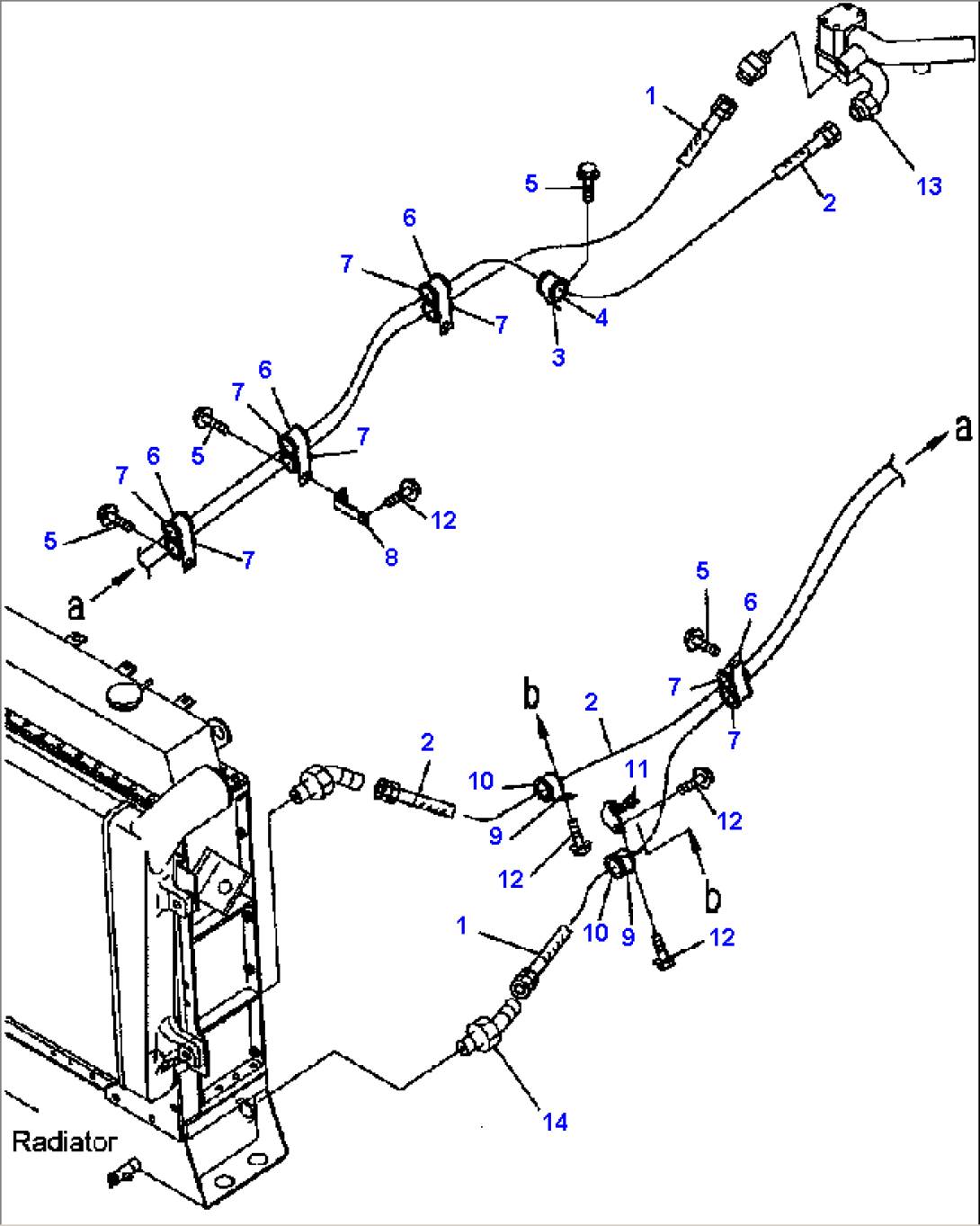

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 56B-61-13550 | HOSE | A10001-- | |
| 2 | 56B-61-13560 | HOSE | A10001-- | |
| 3 | 20Y-62-15951 | CLIP | A10001-- | |
| 4 | 566-61-49810 | INSULATOR | A10001-- | |
| 5 | 01435-01020 | BOLT | A10001-- | |
| 6 | 208-98-73710 | CLIP | A10001-- | |
| 7 | 07095-00630 | CUSHION | A10001-- | |
| 8 | 56B-61-14230 | BRACKET | A10001-- | |
| 9 | 20Y-62-15951 | CLIP | A10001-- | |
| 10 | 07095-20627 | CUSHION | A10001-- | |
| 11 | 56C-61-14190 | BRACKET | A10001-- | |
| 12 | 01435-01016 | BOLT | A10001-- | |
| 13 | TUBE (SEE FIG. H3410-09A0) | A10001-- | ||
| 14 | CONNECTOR (SEE FIG. C0110-03A0) | A10001-- |
